Solar Connectors For PV Solar DC Power System Home Residential Power
1set
MOQ
negotiation
Price
Solar Connectors For PV Solar DC Power System Home Residential  Power
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC & Intetek
Model Number: Solar connectors
High Light:

Solar DC Power System Connectors

,

IP 67 Solar Panel connector

Payment & Shipping Terms
Packaging Details: Single package size: 12X2X2 cm Single gross weight: 0.030 kg Package Type: 10pcs/bag , 1000pcs/ctn , ctn size :50*36*36CM
Delivery Time: 15 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 200pcs Per Month
Specifications
Name: Solar Connectors
Insulation Material: PPO
Advantage: Waterproof & Dustyproof
Contact Material: Copper Tin Plated
Package: 500pcs/Carton
Temperature: -40°C ~ +85°C
Protection Degree: IP 67
Compatible Solar Cable: 4.0/6.0mm² (12/10 AWG)
Product Description

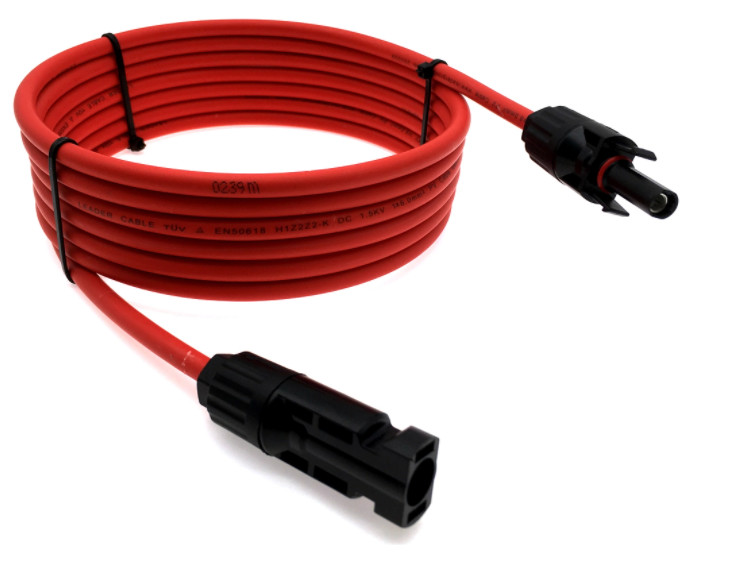

Solar connectors for Solar Power System Home Residential Power



Solar Panel connector is a connecting device for connecting solar panel circuits. It can connect various groups of circuits safely and quickly.



It is dustproof, waterproof, anti-aging, UV resistant, light and easy to use, easy to install, safe and long-lasting.



Life and other characteristics.

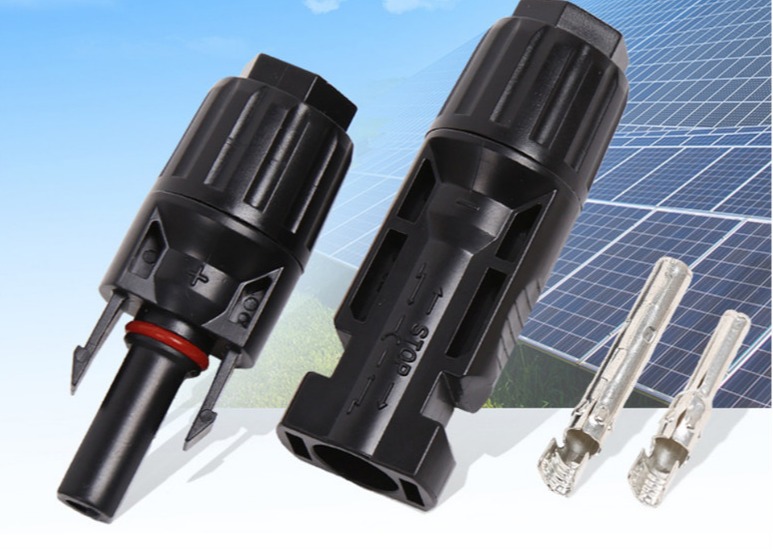

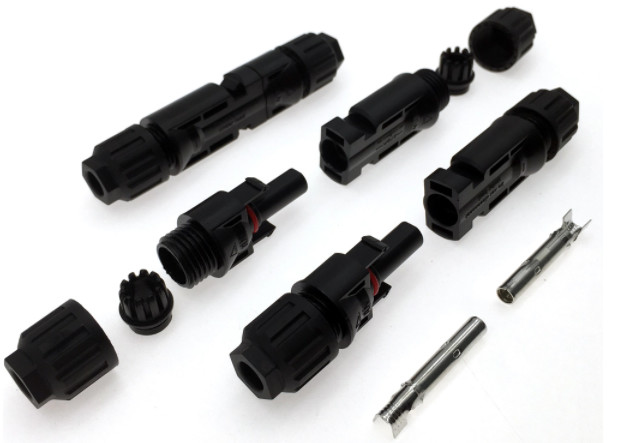

The solar panel connector is self-locking and consists of the following components:


1) Connector plastic body: the material used is PPO


2) Waterproof colloid: the material used is silica gel


3)Contact conductor: the material used is copper tin

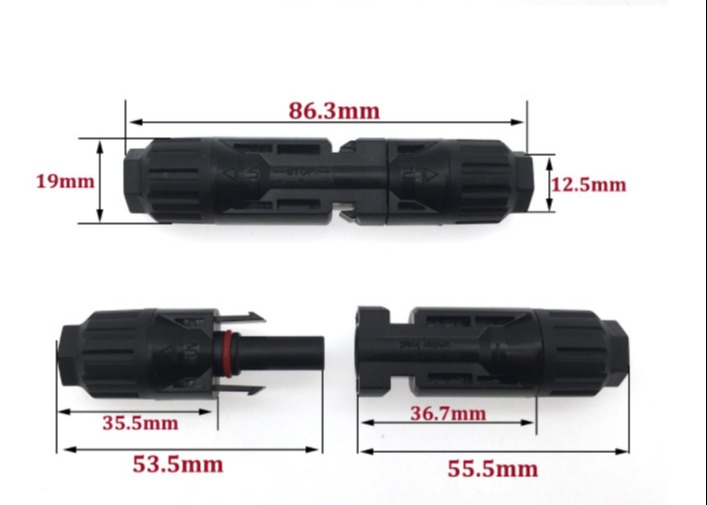

The female connector has two plastic fingers that have to be pressed toward the central probe slightly to insert into holes



in the front of the male connector.



When the two are pushed together, the fingers slide down the holes until they reach a notch



in the side of the male connector, where they pop outward to lock the two together.



Insulation Materials
PPO
Rated Current
20A-30A
Rated Voltage
TUV 1000V DC / UL 600V DC
Terminal Material
Copper , Tin plating
Contact Resistance
<0.3mΩ
Diameter of terminal holes
Ø4mm
Compatible solar cable
4.0/6.0mm² (12/10 AWG)
Protection Level
IP67





Solar Connectors For PV Solar DC Power System Home Residential  Power 0

Solar Connectors For PV Solar DC Power System Home Residential  Power 1Solar Connectors For PV Solar DC Power System Home Residential  Power 2
