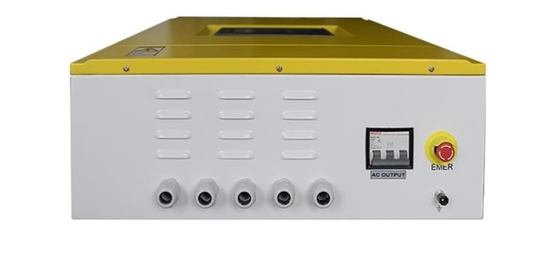

On Grid Inverter Wind Grid Connected Generation System 2KW 3KW 5KW 10KW 20KW 30KW
1set
MOQ
negotiation
Price
On Grid Inverter Wind Grid Connected Generation System 2KW 3KW 5KW 10KW 20KW 30KW
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC & Intetek
Model Number: HCW-2KDTI
High Light:

On Grid Solar Inverter 2KW

,

Wind Grid Connected Generation System

Payment & Shipping Terms
Packaging Details: Plywood Package 450*275*670mm(W*D*H)
Delivery Time: 15 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 200pcs Per Month
Specifications
Name: HCW-2KDTI
Wind Power Input Rated Input Power: 2KW
Max. DC Input Power: 2.2 KW
Rated Grid Frequency: 50Hz~60Hz
Phase: Single-phase
DC Input Voltage Range: 100Vdc-400Vdc
Rated Output Current: 10A
Over Wind Braking (optional): 18m / S (0 ~ 30m / S Can Be Set)
Allowed Grid Voltage Range: 220Vac±20%
Cooling Method: Forced Air Cooling
Product Description
Most Efficient On Grid Inverter 2KW 3KW 5KW 10KW 20KW 30KW Wind Grid-connected Generation system


Wind grid-connected generation system is consist of wind turbine, contractor, grid-connected inverter, metering device and power distribution system



Wind energy is converted to the DC power through contractor, by parallel to the direct model contrary to change electric energy transformed into the network and frequency, wave aspect of the current, part of the power to local, surplus feeding the electricity network, so grid-connected inverter is the crucial equipment in wind power system.



1. Quick Detail:



  •  Name : Maglev Wind Generator 1000w-48V
  •  Application :Generator in strong windy area for residential electricity
  •  Color: Red & blue, Sliver and customrized

2. Description:



This 1000W vertical axis maglev wind turbines undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple specialities.



3. Applications:



Maglev Wind Generator 1000w for Home Use  is ideal for both of residential and commercial applications as well as off grid and on grid power systems.The unit provides a durable, reliable, and fully customized hybrid solution to Telecoms repeaters , Charging Station by Solar and wind and also very suitable for power supply to home.



5. 2KW On-grid Inverter Specifications



Model/ Grid-Connected inverter HCW-2KDTI
Rated power 2KW
Max. DC input power 2.2KW
DC input voltage range 0-450Vdc
DC input voltage range 100Vdc-400Vdc
Nominal AC output power 2KW
Max. AC output power 2.2KW
Rated DC input current 6.8A
Maximum DC input current 7.48A
THD of AC current <3%(Rated power)
Power factor >0.99
Max. efficiency 98%
Output rating voltage 220Vac /50Hz
Allowed Grid Voltage Range 220Vac±20%
Allowed Grid Frequency Range 50Hz±10%
Automatically put into operation conditions DC input and power to meet the requirements, the inverter automatically run
Automatic restart after power failure time 5min (can set)
Protection Reverse polarity, short circuit, island, overheating and overload etc
Display mode Touch screen
Wind generator power curve can set
Comm. interfaces RS485
Operating Temp. -10℃~+55℃
Relative humidity 0~95%,Non-condensing
Altitude(m) 2000 meters (over 2000 m with derating required)
Cooling method Forced air cooling
Noise ≤60dB
Protection degree IP22(indoor)
Size(W*L*H) 450*275*670mm(Including terminal 30mm)
Weight 27KG



Performance characteristics

  • Main circuit is using U.S. TI's DSP chip, Japan's Mitsubishi IGBT modules, Japan's Mitsubishi ‘driver protection, grid-connected output part adopts isolation transformer, safe and reliable ;
  • Using SPWM pulse width modulation,pure sine wave output,automatically synchronized with the grid tracking,power factor close to 1., low current harmonic content , pollution-free and non-shock to grid;
  • Wind cell modules’ maxim power point trace (MPPT);
  • Grid-connected inverters’ current closed loop control, control and regulate;
  • DC voltage across a wide range of input, adapt to different circumstances demand;
  • Frequency disturbance the technical, to achieve control of anti-island;
  • A comprehensive power to protect and improve yourself and protect the function. In case of system failure to stop the grid-connected invert ion;
  • Circuit frame compact, ax. Efficiency≥90%;
  • Protection class up to IP22;
  • Optional RS 485 communication, Upper machine monitoring, achieve the remote data collection and monitoring.

On Grid Inverter Wind Grid Connected Generation System 2KW 3KW 5KW 10KW 20KW 30KW 0On Grid Inverter Wind Grid Connected Generation System 2KW 3KW 5KW 10KW 20KW 30KW 1



On Grid Inverter Wind Grid Connected Generation System 2KW 3KW 5KW 10KW 20KW 30KW 2On Grid Inverter Wind Grid Connected Generation System 2KW 3KW 5KW 10KW 20KW 30KW 3
