4C 6C Single Mode GYFXH Fibre Optic Cable Unarmoured 30KG Each KM
1KM
MOQ
negotiation
Price
4C 6C Single Mode GYFXH Fibre Optic Cable Unarmoured 30KG Each KM
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: GYFXH Fibre Optic Cable
High Light:

1000 mtr per Drum Fibre Optic Cable

,

6C Single Mode Fiber Patch Cables

,

4C Fiber Optic Patch Cable

Payment & Shipping Terms

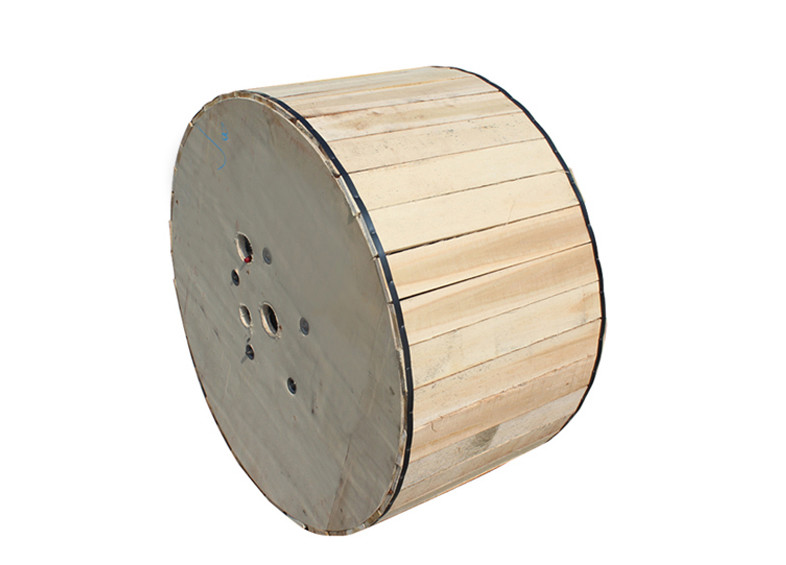

Packaging Details: wooden drum with fumigated or not, 30kg/km
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000pcs Per Week
Specifications
Type: GYFXH Fibre Optic Cable
Fiber Count: 2-24
Paintcoat Color: Black
Fiber Material: Doped Silica

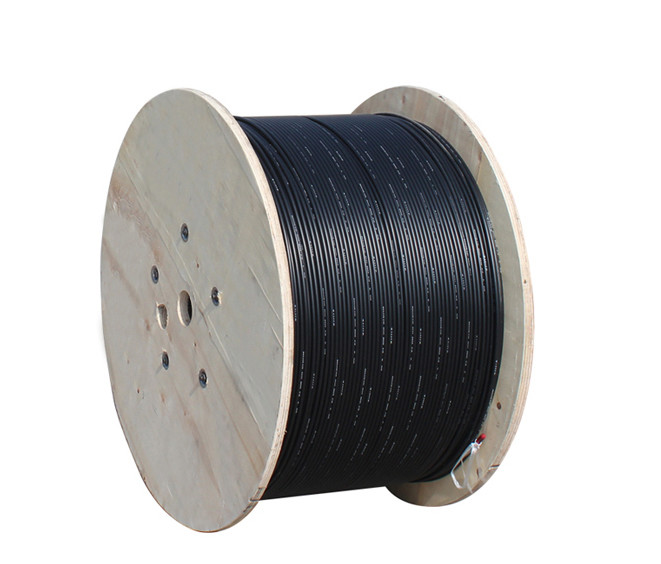

Length: Per Reel.100m -1000m
Application: Outdoor Communication
Diameter: 4.5mm +-2
Jacket Material: LSZH/ PVC
Product Description

4C 6C Single Mode Unarmoured (1000 mtr per Drum 30KG Each KM ) GYFXH Fibre Optic Cable

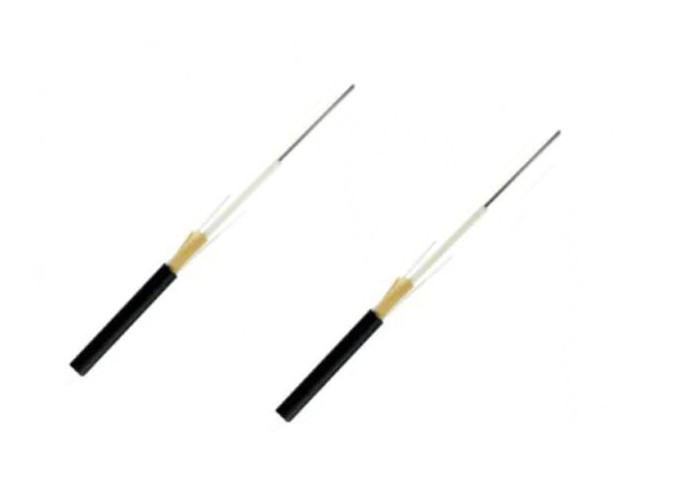

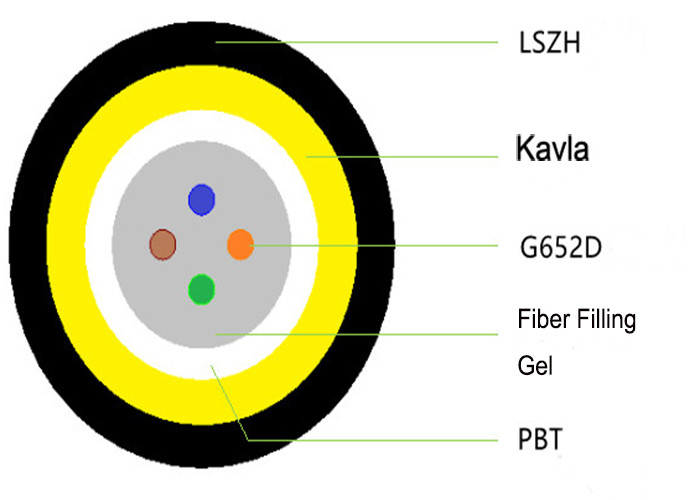

GYFXH Outdoor fiber optic cable with FRP

Good mechanical and temperature performance.
Heigh strength loose tube that is hydrolysis resistand
Specially tube filling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose tubes from shrinking
PE sheath protects cable form ultraviolet radiation
Steel wire used as the central strength member
100% cable filling core filling
Loose tubes filling compound
PSP enhancing mostiure-proof



Product GYFXH Fibre Optic Cable Parameters



Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Max Fibers per Tube No. of (Tubes+fillers) Allowable Tensile Load (N) Allowable Crush Resistance (N/100mm)
Short Term Long Term Short Term Long Term
   2~24 C  4.5mm +-2 30 6 6 400 800 300



1000







Note:



1.  For flame retardant cable, outer sheath can be made of low-smoke halogen-free (LSZH) material,

    and the type is GYFXH Fibre Optic Cable .



    For anti-termite cable, additional Nylon resin is extruded over outer sheath and the type is GYFTY04.



2.  Special cable structure can be designed and manufactured on customer’s request





optical characteristics
    G.652 G.655 50/125um 62.5/125um
attenuation(+20ºC) @850nm     ≤3.0db/km ≤3.0db/km
@1300nm     ≤1.0db/km ≤1.0db/km
@1310nm ≤0.36db/km ≤0.4db/km
@1550nm ≤0.22db/km ≤0.23db/km
@850nm     ≤600mhz.km ≤200mhz.km
bandwidth(class A) @1300nm     ≥1200mhz.km ≥600mhz.km
numerical Aperture       0.200±0.015na 0.275±0.015na
cable cut-off waveleng th xcc       ≤1620nm ≤1450nm
storage/operating temperature:-40ºC to +70ºC



 4C 6C Single Mode GYFXH Fibre Optic Cable Unarmoured 30KG Each KM 04C 6C Single Mode GYFXH Fibre Optic Cable Unarmoured 30KG Each KM 14C 6C Single Mode GYFXH Fibre Optic Cable Unarmoured 30KG Each KM 24C 6C Single Mode GYFXH Fibre Optic Cable Unarmoured 30KG Each KM 3
