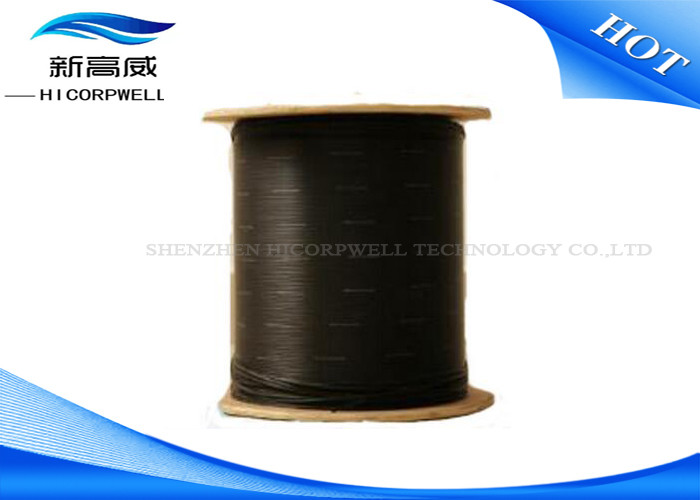

Outdoor Glass Fiber Optic Cable , Custom Connector G652D Drop Fiberglass Cable

Outdoor Glass Fiber Optic Cable , Custom Connector G652D Drop Fiberglass Cable

Outdoor Glass Fiber Optic Cable , Custom Connector G652D Drop Fiberglass Cable

Product Details:

Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Ftth Drop Cable

Payment & Shipping Terms:

Minimum Order Quantity: 1KM
Price: negotiation
Packaging Details: 10km/Reel
Payment Terms: Western Union, L/C, T/T
Supply Ability: 3000KM Per Week
Contact Now
Detailed Product Description
Fiber Type: G652D Or G657A1 Connectors: Customized
Paintcoat Color: Black Or White Cable Purpose: Outdoor Usage
Length: 2KM To 4KM Per Reel. Application: Outdoor Communication

Outdoor Drop Cable Fiber Optic Cable with Optical G652D Fiber Core

Technical Data

Item Single mode Multi mode
Splicing Type UPC APC PC
Insertion Loss <or=0.3dB <or=0.2dB <or=0.3dB
Reture Loss >or=45dB >or=55dB >or=35dB
Repeatability <or=0.1dB <or=0.1dB <or=0.1dB
Temperature -40/+80



Specifications&Performances



Cable
Count
ITEM CABLE
OD.mm(a)
S.S.T.
OD.mm(b)
T.B.O.F.
OD.mm(C)
4F 4.5MM Φ4.5±0.2 Φ2.4±0.02 Φ0.5
6F 4.5MM Φ4.5±0.2 Φ2.6±0.03 Φ0.5
8F 5.0MM Φ5.0±0.2 Φ2.8±0.05 Φ0.5
10F 5.0MM Φ5.0±0.25 Φ3.0±0.05 Φ0.5
12F 5.5MM Φ5.5±0.25 Φ3.2±0.05 Φ0.5
24F 7.0MM Φ7.0±0.3 Φ4.3±0.05 Φ0.5



Fiber Parameters



No. Items Unit Specification
G.652D
1 Mode Field Diameter 1310nm μm 9.2±0.4
1550nm μm 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation (max.) 1310nm dB/km ≤0.4
1550nm dB/km ≤0.3



Applicaiton



1. Automobile intelligence

2. Industry control and monitor system

3. Military communication

4. FTTH (fiber to home)

5. Consumer electronics
