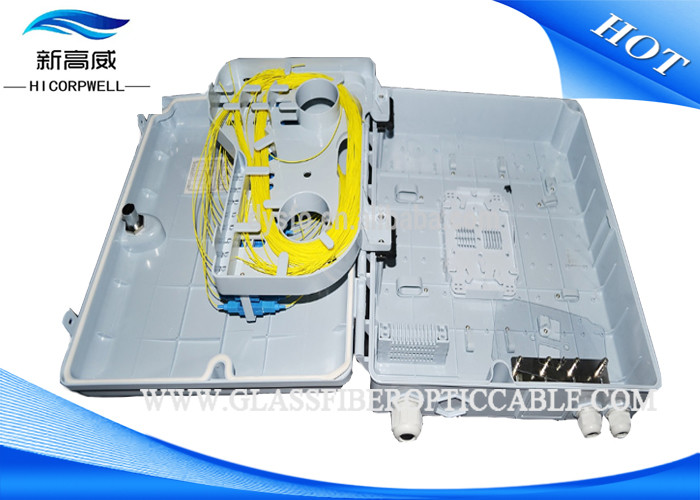

FTTH Plastic Fiber Optic Fiber Termination Kits 1x16 Splitter Distribution Box

FTTH Plastic Fiber Optic Fiber Termination Kits 1x16 Splitter Distribution Box

FTTH Plastic Fiber Optic Fiber Termination Kits 1x16 Splitter Distribution Box

Product Details:

Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: 1x16 Splitter Distribution Box

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: The design and packaging is exquisite to ensure the product in good condition.
Payment Terms: Western Union, L/C, T/T
Supply Ability: 2000pcs Per Month
Contact Now
Detailed Product Description
Features: Proof--rain/dust/theft Dimension: 380x355.8x140.5mm
Max. Capacity: 48 Fiber (2pcs 24FO Trays) Splitter: Load 1pc 1*16 ABS Box Type Splitter;
Box Material: PC/SMC/ABS Return Loss: UPC≥50dB/APC≥60dB
Protection Class: IP65 Weight: About 1.5KG

FTTH Plastic Fiber Optic 1x16 Splitter Distribution Box

This fiber access termination box is able to hold up to 16 subscribers.

It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.

It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated

using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple


premise locations.





Product Name
1x16 splitter box/24 core termination box/distribution box/FTTH box
Material
ABS
Color
Grey
IP grade
IP55
Ports
4 cable ports( for cables with max diameter 16mm)
Adaptors
24 simplex SC adaptors or 24 LC duplex adaptors
Splitters
1x4, 1x8,1X16 PLC splitter



Features:



* Standard size, light weight and reasonable structure



* Material: ABS, wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65



* Clamping for feeder cable and drop cable Cable,



* pigtails, patch cords are running through own path without disturbing each other



* Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way,



  easy for maintenance and installation.



* Can be installed by the way of wall-mounted, suitable for both indoor and outdoor uses.



* Suitable for SC/FC/ST/LC adapters







Application:



Telecommunications subscriber loop



Fiber to the home (FTTH)



LAN/WAN



CATV



(If delete the space for splitter, max.can load 3pcs splice trays for 72 fibers splicing.)
