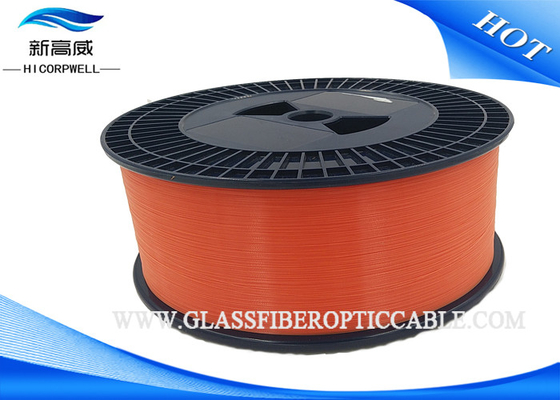

IEC 60794 Fiber Optic Cable Spool , SMF G652D 2km / Roll Duplex Fiber Cable

IEC 60794 Fiber Optic Cable Spool , SMF G652D 2km / Roll Duplex Fiber Cable

IEC 60794 Fiber Optic Cable Spool , SMF G652D 2km / Roll Duplex Fiber Cable

Product Details:

Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Bare Optical Fiber Spool OTDR Cable

Payment & Shipping Terms:

Minimum Order Quantity: 10KM
Price: negotiation
Packaging Details: Standard length: 2km/roll (as per your requirements)
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000KM Per Month
Contact Now
Detailed Product Description
Fiber Type: G652/G657 250um Bare Fiber Paintcoat Color: Aqua,yellow ,blue Or Others
Cable Purpose: ODTR Or FO Cable 1310nm: 0.36-0.22 DB/Km
1550nm: 0.5-0.4 DB/Km Fiber: G652D,G657A
Certificate: IEC 60794-2-10/11 Connectors: Can Be Added As Per Your Request, SC/LC/FC/ST Etc

OTDR Dummy Single mode SMF G652D 250um Bare Optical Fiber Spool OTDR Cable

OTDR Dummy fiber is designed to be used in conjunction with an OTDR to measure complete link loss of a fiber. They are also known as pulse suppressor cables, launch cords, launch leads, receive cables or fiber rings. An OTDR dummy fiber, which connects the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection.

A fiber ring serves as both a launch cable and a receive cable.





  •  G652/G657 250um bare fiber
  •  Connectors can be added as per your request, SC/LC/FC/ST etc
  •  Standard length: 2km/roll (as per your requirements)



Part No. Description
Fiber-ROLL-SM10

SM G652D, 1KM,

Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional

Fiber-ROLL-SM20

SM G652D, 2KM,

Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC,

LC/UPC, LC/APC optional

Fiber-ROLL-MM10

MM (62.5/125um or 50/125um), 1KM,

Connector; FC/PC, SC/PC, ST/PC, LC/PC optional

Fiber-ROLL-MM20

MM (62.5/125um or 50/125um), 2KM,

Connector; FC/PC, SC/PC, ST/PC, LC/PC optional

Fiber-ROLL-SM710

SM G657A, 1KM,

Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional

Fiber-ROLL-SM720

SM G657A, 2KM,

Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC,

LC/UPC, LC/APC optional

Fiber-ROLL-OM310

OM3, 1KM,

Connector; FC/PC, SC/PC, ST/PC, LC/PC optional

Fiber-ROLL-OM320

OM3, 2KM,

Connector; FC/PC, SC/PC, ST/PC, LC/PC optional
