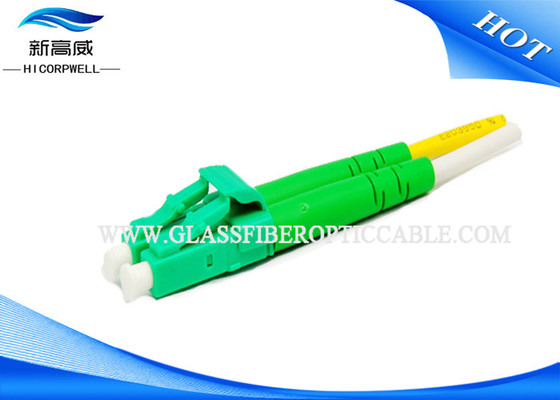

LC MM Fiber Optic Cable Connectors , 2.0 DX Patch Cord Multimode Fiber Connectors

China LC MM Fiber Optic Cable Connectors , 2.0 DX Patch Cord Multimode Fiber Connectors supplier
LC MM Fiber Optic Cable Connectors , 2.0 DX Patch Cord Multimode Fiber Connectors supplier LC MM Fiber Optic Cable Connectors , 2.0 DX Patch Cord Multimode Fiber Connectors supplier LC MM Fiber Optic Cable Connectors , 2.0 DX Patch Cord Multimode Fiber Connectors supplier LC MM Fiber Optic Cable Connectors , 2.0 DX Patch Cord Multimode Fiber Connectors supplier

Large Image :  LC MM Fiber Optic Cable Connectors , 2.0 DX Patch Cord Multimode Fiber Connectors

Product Details:

Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: LC MM 2.0MM DX Connectors

Payment & Shipping Terms:

Minimum Order Quantity: 10sets
Price: negotiation
Packaging Details: Max 100m/ per reel for 5.0 mm OD cable
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000pcs Per Week
Contact Now
Detailed Product Description
Form Factors: Duplex/ Simplex Connectors: LC MM 2.0MM DX Connectors
Paintcoat Color: Blue And Green Cable Diameters: 0.9mm/ 2.0mm/ 3.0mm
Application: Outdoor Indoor Communication Fiber Type: Single Mode/ Multimode
End Face Type: PC/UPC/APC Jacket Material: LSZH/ PVC
Connector Type: SC/LC/FC/ST/MPO/MTRJ/E2000

LC MM 2.0 DX Connectors for Patch Cord Cable Fiber Optic Components



Fiber optic connectors are ultra reliable components featuring low insertion loss and return loss.They come with your choice of simplex or duplex cable configuration and are made to conform to IEC, Telcordia GR-326-CORE Standard.



1. Features:



  •  Low insertion loss and back reflection loss
  •  Ferrule end surface pre-domed
  •  Precision anti-rotation key and corrosion resistant body
  •  UL-rated plastic housing
  •  Telcordia style boots
  •  Free-floating ceramic ferrule

2. Applications:



  •  Fiber Optic Telecommunications
  •  LAN (Local Area Network)
  •  FTTH (Fiber To The Home)
  •  CATV&CCTV
  •  High speed transmission systems
  •  Fiber optic sensing

3. Specification:






  Single mode Multimode
Insertion Loss <0.10dB <0.20dB
Return Loss ≥55dB(PC)
  ≥65dB(APC)
Durability <0.2dB typical change,
500 matings

Operating Temperature -40 to +150 -40 to +150
Ferrule Hole Sizes 125.0+1/-0um,
Conentricity:≤1um
127um,Conectricity:≤3um
125.5+1/-0um,
Conentricity:≤1um



4. Order Choice:


LC/PC SM one-piece, multi-piece, 3mm , 2mm or 900um boot
LC/PC SM duplex with clip
LC/APC SM one-piece, multi-piece, 3mm or 2mm boot
LC/APC SM duplex with clip
LC/PC MM one-piece, multipiece, 3mm , 2mm or 900um boot
LC/PC MM duplex with clip
