SC 2 / 4 Cores Enterprise Security Network Wall Mount Fiber Optic Terminal Box

1set
MOQ
negotiation
Price
SC 2 / 4 Cores Enterprise Security Network Wall Mount Fiber Optic Terminal Box
Features Gallery Product Description Request A Quote
Features
Specifications
Size: 150mm×110mm×33mm
Application: Networking
Name: SC 2/4 Cores Wall Mount Fiber Optic Terminal Box
No Of Ports: 2 OR 4 Ports
Connectors: SC、FC、E2000, ST
Cable Option: Indoor FO Cable
Certificate: CE, ROHS , ISO
High Light:

ftth termination box

,

optical termination box

Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: SC 2/4 Cores Wall Mount Fiber Optic Terminal Box
Payment & Shipping Terms
Packaging Details: 1 pc/box Delivery Time 3-5 days based on quantity
Payment Terms: Western Union, L/C, T/T
Supply Ability: 2000pcs Per Month
Product Description

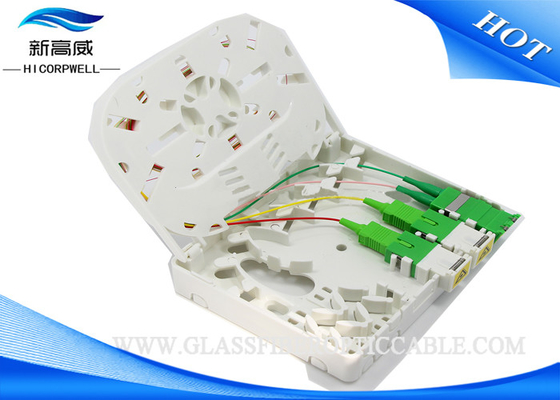

SC 2/4 Cores Wall Mount Fiber Optic Terminal Box Enterprise Security Network



-- Material: PC or ABS



-- It’s applicable for FTTH, FTTO and FTTD.



-- The clasp design of the cover reduces the installation strength.



-- Match with other A86 panel in house.



-- Compatible adapter: SC. FC. LC



-- The big-diameter wrapping trap in the socket guarantees the cable bending radius.





Suitable for three splice way:



pigtail + Mechanical Splicer+ Adapter



pigtail + fused splicer + Adapter



fast installation connector + Adapter



The box is light and compact, especially suitable for protective connection of fiber cables



and pigtails in FTTH.





Features of the box



1. This box could be used for wall-mounted and desktop-mounted applications;



2. The base and cover of the box adopts “self-clip” method, which is easy and



    convenient to open and close;



3. Could be used for adaptors such as SC,FC, LC Duplex;



4. The max capacity is 4 fibers;





Installation method



1.  Open the package of the box to check all the components.



2.  Press the front side of the box, withdraw the cover and slide it backwards.



3.  Indoor wiring fiber cable needed to lead in the location that fix the terminal box,



    The length of stripping is about 120cm from the end.



4.  It is suitable for two routing methods: dark-routing and right-routing.



5.  Outside fiber cable leads in fiber tray through cable outlet of tray as picture 9/10.



6.  Installing the adaptor, inserting the pigtail plug, Taking the pigtail through into splice tray.



7.  Splice as per usual, and then put the splice protective tube into the slot of tray.
