19 Inch 12 Port Fiber Optic Cable Termination Patch Panel Without Adapters

China 19 Inch 12 Port Fiber Optic Cable Termination Patch Panel Without Adapters supplier
19 Inch 12 Port Fiber Optic Cable Termination Patch Panel Without Adapters supplier 19 Inch 12 Port Fiber Optic Cable Termination Patch Panel Without Adapters supplier

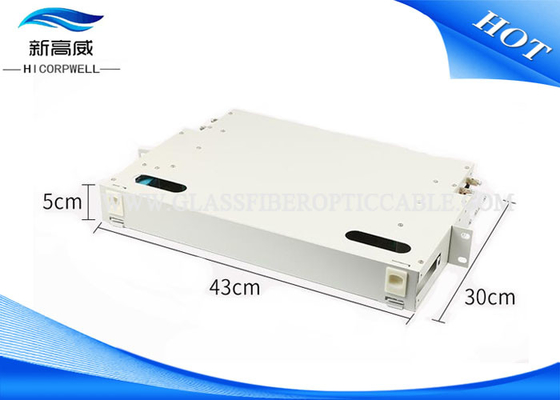

Large Image :  19 Inch 12 Port Fiber Optic Cable Termination Patch Panel Without Adapters

Product Details:

Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: FC 12 port ODF patch panel

Payment & Shipping Terms:

Minimum Order Quantity: 1set 5x 300 x 430 mm
Price: negotiation
Packaging Details: Packed in cartons or as per customer request
Payment Terms: Western Union, L/C, T/T
Supply Ability: 200pcs Per Day
Contact Now
Detailed Product Description
Dimension: 5x 300 X 430mm Colors: White Or Black
Box Material: Cold-roll Steel Keywords: FC 12 Port ODF Patch Panel
Name: Fiber Optic ODF Adapter Patch Panel For Options: FC, SC, ST, LC
Weight: About 3.5 KG Application: Fiber To The Home (FTTH)

SC 12 ports 19 Inch Optical Fiber Patch Panel Fiber Termination Kits

Termination box is suitable for jointing fiber cable and pigtail,and it protects fiber optic splices

and helps to distribute.

The termination box is either a wall-Mounting type or a desktop type, which is mainly used in

telecommunication equipment room and network equipment room.




1. Feature



1). All property indexes are in accordance with national YD/T814-1996 standard


2). The body make use of cold rolling steel,and the surface use the technique of dim plastic.strong

adhesive force,artistic and durable.


3). Distinctive design of 2 cable enrance



4). Cable entrance are sealed with oil resistance NBR to increase the flexibility.user can choose to prick the entrance.


5). Overlapping fiber splice tray and separate insulation earthing unit make the disposition of the cores ,expanding the capacity and cable-earthen flexible,convinient and safe.



6). SC/ST/FC/LC ports is available.



2Specification



Material Cold-rolled steel sheet
Dimension(mm) 5x 300 x 430mm
Max capacity 12
Net weight 3.5KG
Thickness 1.1mm





3, Product list



1U-D(Slide patch panel) Wall Mounting ODF
ODF 1U 12 cores with cassette ODF 1U 12 cores with cassette
ODF 1U 24 cores with cassette ODF 1U 24 cores with cassette
ODF 2U 36 cores with cassette ODF 1U 36 cores with cassette
ODF 2U 48 cores with cassette ODF 2U 48 cores with cassette
1U-A(Fixed patch panel) Module Integration ODF
ODF 1U 12 cores with cassette ODF 1U 12 cores with cassette
ODF 1U 24 cores with cassette ODF 1U 24 cores with cassette
ODF 2U 36 cores with cassette ODF 1U 36 cores with cassette
ODF 2U 48 cores with cassette ODF 2U 48 cores with cassette
BG-A(Termination box) ODF 3U 72 cores with cassette
Termination box 24 cores with cassette ODF 4U 96 cores with cassette
Termination box 48 cores with cassette
