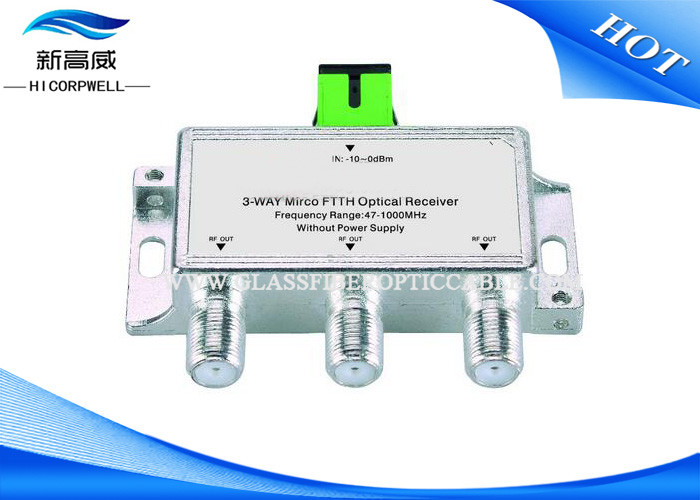

Mini 3 Way HDMI AOC Cable CATV Passive Optical Node / FTTH Optical Recever

Mini 3 Way HDMI AOC Cable CATV Passive Optical Node / FTTH Optical Recever

Mini 3 Way HDMI AOC Cable CATV Passive Optical Node / FTTH Optical Recever

Product Details:

Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Mini 3 Way CATV Passive Optical Node FTTH Optical Recever

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: negotiation
Packaging Details: Dimension (mm) 54x47x15.5, Weight : 28.5G
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000pcs Per Week
Contact Now
Detailed Product Description
Compatibility: Mini 3 Way CATV Passive Optical Node Frequency Range: 5~2400Mhz
Housing Material: Zinc Die-casting Waterproof Dimension (mm): 54x47x15.5
Weight: 28.5G Splitting Loss (dB): 3.5
Optical Connector: SC/APC RF Connector: F-female



Mini 3 Way CATV Passive Optical Node /FTTH Optical Recever HDMI AOC Cable

Features:


1. Low insertion loss, high return loss and isolation.


2. Die cast aluminum housing


3. RF frequency range 5 to 1000 MHz


4. CE, RoHS, ISO9001

Descriptions:



1. easy to install,can well meet the requirements of satellite signals.



2. using zince alloy shell intergration,surface nickel processing cover the use of punch pinched



waterproof paint sealed.



3. waterproof good performance and high degree of shielding to prevent signal leakage



and external signak interference.



We are  in CATV line in China,we offer catv splitter,catv amplifier,catv optical receiver,



catv optical transmitter, catv optical switch,EDFA , catv modulator, digital equipments and so on.



Our catv power splitter feature:





2. TECHNICAL PARAMETER







Freq rangeMHz Splitting lossdB Isolation lossdB Return lossdB
2 way splitter
5-10 ≤3.5 ≥25 ≥16
10-50 ≤3.6 ≥25 ≥16
50-750 ≤3.8 ≥25 ≥16
750-1000 ≤4.0 ≥25 ≥16
3 way splitter
5-10 ≤5.7 ≥22 ≥16
10-50 ≤5.5 ≥25 ≥16
50-750 ≤6.2 ≥25 ≥16
750-1000 ≤6.5 ≥22 ≥16
4 way splitter
5-10 ≤6.8 ≥25 ≥16
10-50 ≤7.0 ≥25 ≥16
50-750 ≤7.6 ≥25 ≥16
750-1000 ≤8.0 ≥25 ≥16
6 way splitter
5-10 ≤8.9 ≥25 ≥16
10-50 ≤8.8 ≥26 ≥16
50-750 ≤9.9 ≥26 ≥16
750-1000 ≤10.5 ≥25 ≥16
8 way splitter
5-10 ≤10 ≥25 ≥16
10-50 ≤10.1 ≥25 ≥16
50-750 ≤10.9 ≥25 ≥16
750-1000 ≤11.5 ≥25 ≥16
10 way splitter
5-10 ≤13.5 ≥22 ≥16
10-50 ≤13.8 ≥25 ≥16
50-750 ≤14.3 ≥25 ≥16
750-1000 ≤14.7 ≥22 ≥16
12 way splitter
5-10 ≤13.5 ≥22 ≥16
10-50 ≤13.8 ≥25 ≥16
50-750 ≤14.3 ≥25 ≥16
750-1000 ≤14.7 ≥22 ≥16
14 way splitter
5-10 ≤13.3 ≥25 ≥16
10-50 ≤13.6 ≥25 ≥16
50-750 ≤14.3 ≥25 ≥16
750-1000 ≤14.5 ≥25 ≥16
16 way splitter
5-10 ≤13.3 ≥25 ≥16
10-50 ≤13.6 ≥25 ≥16
50-750 ≤14.3 ≥25 ≥16
 750-1000 ≤14.5 ≥25 ≥16
