    Product Details:

    Place of Origin: China
    Brand Name: HICORPWELL
    Certification: IEC 60794-2-10/11
    Model Number: 80m 100m ,200m, 500m ODVA LC Waterproof Tactical Fiber Optic Patch Calbes

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 sets (200m Fo Cable )
    Price: negotiation
    Packaging Details: Max 200m/ per reel for 5.0 mm OD cable
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 3000KM Per Week
    Contact Now
    Detailed Product Description
    Cable Type: Outdoor FO Cable Connectors: Customized,LC,FC,SC Connectors
    Paintcoat Color: Black Or Orange Or Others Cable Purpose: Portable Media Usage
    Length: Per Reel.150m -250m Application: Outdoor Communication

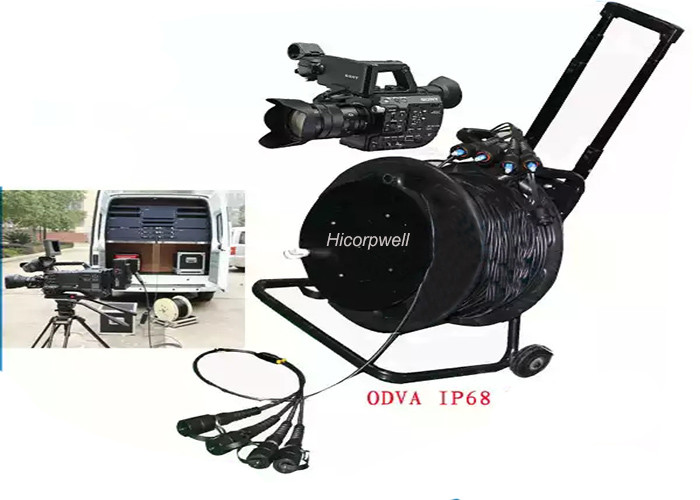

    Outdoor Optic Fiber Parts FO Portable Cable with IP67 Waterproof Connectors



    80m 100m ,200m, 500m ODVA LC Waterproof Tactical Fiber Optic Patch Calbes

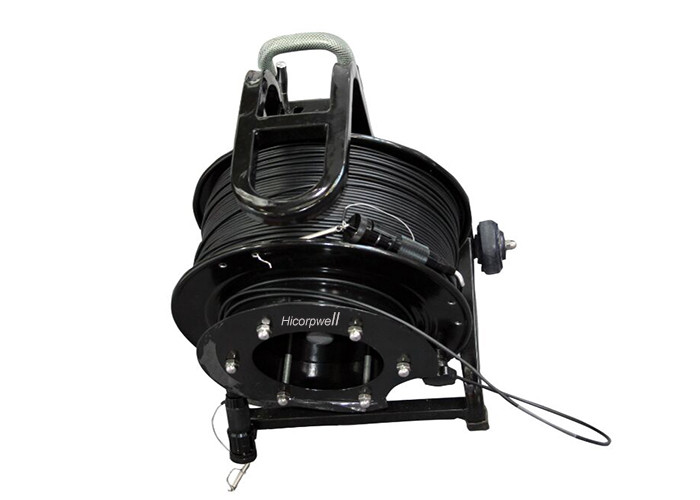

    Portable Reel Size : 470X380X510mm  Net  weight : 8.5kg/pcs.

    Capacity for Each Reel  :

    OD 2.0mm Cable :1000-1100 m.
    OD 2.5mm Cable :700-800 m.
    OD 3.0mm Cable :500-550 m.
    OD 4.0mm Cable :300-330 m.
    OD 5.0mm Cable :180-200 m.





    Item Single mode Multi mode
    Splicing Type UPC APC PC
    Insertion Loss <or=0.3dB <or=0.2dB <or=0.3dB
    Reture Loss >or=45dB >or=55dB >or=35dB
    Repeatability <or=0.1dB <or=0.1dB <or=0.1dB
    Temperature -40/+80



    Specifications&Performances





    Cable
    Count
    ITEM CABLE
    OD.mm(a)
    S.S.T.
    OD.mm(b)
    T.B.O.F.
    OD.mm(C)
    4F 4.5MM Φ4.5±0.2 Φ2.4±0.02 Φ0.5
    6F 4.5MM Φ4.5±0.2 Φ2.6±0.03 Φ0.5
    8F 5.0MM Φ5.0±0.2 Φ2.8±0.05 Φ0.5
    10F 5.0MM Φ5.0±0.25 Φ3.0±0.05 Φ0.5
    12F 5.5MM Φ5.5±0.25 Φ3.2±0.05 Φ0.5
    24F 7.0MM Φ7.0±0.3 Φ4.3±0.05 Φ0.5



    Cable
    Count
    ITEM CABLE OD.
    mm(a)
    CABLE
    WEIGHT
    (kg)
    MAXIMUM TENSILE BEND RADIUS* L.P.
    N/100mm
    S.T. L.T. Dyn. Sta.
    4F 4.5MM Φ4.5±0.2 26.5 800 400 70 35 3000
    6F 4.5MM Φ4.5±0.2 38.5 1000 500 100 50 3000
    8F 5.0MM Φ5.0±0.2 33.0 1000 501 100 50 3000
    10F 5.0MM Φ5.0±0.25 36.0 1000 502 120 60 3000
    12F 5.5MM Φ5.5±0.25 39.0 1200 600 150 75 3000
    24F 7.0MM Φ7.0±0.3 54.0 1500 750 170 85 3000
