With the continuous development of optical fiber communication technology, 4G commercial trial
network, high-speed local area networks and optical access network such as the market that is a
sustained manner.PDLC fiber optic cable connector assemblies are rapidly becoming the standard
connector interface.

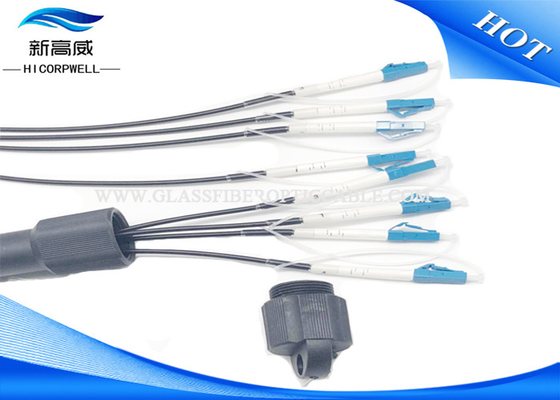

This patch cord uses standard size of Duplex LC Connectors,and the outer housing is metal protective
PDLC device.
These patch cords meet with the functions of waterproof, dustproof and are widely used in FTTA,
Base station, and the outdoor waterproof condition.
| Connector | End A | Compact RRH/BBU Cover Connector | |||
| End B | PDLC (duplex LC),or SC,FC,ST,MPO,MTP...... | ||||
| Fiber Core | 2,4…12 | ||||
| Mode | Singlemode | Multimode | |||
| Operating Wavelength(nm) | 1310/1550 | 850/1310 | |||
| Polishment | UPC | APC | UPC | ||
| Insertion Loss(Max.dB) | 0.2 | 0.3 | |||
| Return Loss(Min.dB) | 55 | 60 | 35 | ||
| Mating times | 500 Min | ||||
| Durability(Max.dB) | 0.2 | ||||
| Reaptability(Max.dB) | 0.5 | ||||
| Operating Temperature(℃) | -40~+85 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
