Loss Zirconia Ceramic Ferrules Fiber Optic System Components SC LC 1.249mm SM

Loss Zirconia Ceramic Ferrules Fiber Optic System Components SC LC 1.249mm SM

    • Loss Zirconia Ceramic Ferrules Fiber Optic System Components SC LC 1.249mm SM
    • Loss Zirconia Ceramic Ferrules Fiber Optic System Components SC LC 1.249mm SM
    • Loss Zirconia Ceramic Ferrules Fiber Optic System Components SC LC 1.249mm SM
  • Loss Zirconia Ceramic Ferrules Fiber Optic System Components SC LC 1.249mm SM

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: HICORPWELL
    Certification: ISO9001-2015
    Model Number: Loss Zirconia Ceramic Ferrules SC LC 1.249mm SM

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: 0.15-0.25
    Packaging Details: Vacuum packing or following your order's demand
    Delivery Time: 3-7 working days
    Payment Terms: L/C, T/T
    Supply Ability: 4000000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Name: Loss Zirconia Ceramic Ferrules SC LC 1.249mm SM Conerntricity: SM≤1.0 MM≤4.0
    Length: SC: SM10.5±0.05 MM10.5±0.1 LC: Ferrule: SC/LC/APC/CUSTOMIZED
    OD Size: SC:2.499±0.0005 LC:1.249±0.000 Material: Zirconia Dioxide
    Color: White Sample: Free
    Nearest Port: Shenzhen/HK MOQ: Min Order And Sample Order Is Acceptable.

    Loss Zirconia Ceramic Ferrules Fiber Optic System Components SC LC 1.249mm SM





    Processing equipments



    CNC machining center, CNC lathe, grinding machine, automatic lathe machine, conventional lathe machine, milling machine, drilling machine, EDM, wire-cutting machine, CNC bending machine,Punching press, etc



    Surface treatment



    Heat treatment, polishing, PVD/CVD coating, galvanized, electroplating, spraying, and painting and so on



    Testing tool



    CMM, Measuring Projector, Mitutoyo Digital Vernier Caliper, Mitutoyo Digital Height Gauge, Feeler Gauge & Plug Gauge & Thread Gauge, Hardness Inspection Instrument, Salt spray testing machine, Fluorescent Magnetic Particle Flaw Detector, Roughness Tester, etc



    Samples



    Samples can be provided according to customers’ requirements or after get customers’ drawings.



    Sample cost should be afforded by customer and return back when place bulk order.

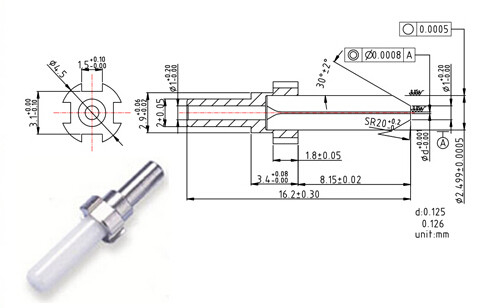

    O.D.Size

    SC:2.499±0.0005 LC:1.249±0.0005

    I.D.Size

    Customized

    Concentricity

    SM≤1.0um MM≤4.0um

    Length

    SM10.5±0.05 MM10.5±0.1 LC:6.4+0.1

    Ferrule Type

    SC/LC/APC/Customized

    Material

    Zirconia Dioxide

    Endface

    Conical type/ Step type/Plane type

    Color

    White

    Sample

    Free

    Type

    SC

    LC

    MU

    APC

    UNIT

    O.D.Size(mm)

    SM: 2.4999±0.0005

    SM: 2.4999±0.0005

    1.249±0.0005

    2.499±0.0005

    φd±0.0005

    MM: 2.4999±0.001

    MM: 1.249±0.001

    I.D.Size(mm)

    SM: d±0.001

    SM: d±0.001

    d±0.001

    d±0.001

    d±0.001

    MM: d±0.002

    MM: 0.126±0.004

    Concentricity(um)

    SM: ≤1.0

    SM: ≤1.0

    ≤1.0

    ≤1.0

    Customized

    MM: ≤4.0

    MM: ≤4.0

    Length(mm)

    SM: 10.5±0.05

    6.4+0.1

    6.5±0.05

    10.5±0.05

    L±0.05

    MM: 10.5±0.05





    • High precision and Reliability .


    • Excellent Strength, Endurability and Anti-aging performance .


    • Various types of ferrules and End-faces .



    Parking  :Carton, Wooden box, or as per the customer’s requirements



    Delivery time



    In 15-25 days after get the deposit (including tooling making time).
