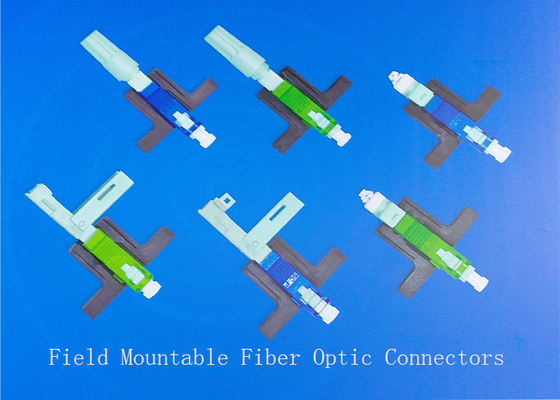

Ftth Fast Connector Push Type SC APC SM Fiber Optic Fast Connector

Ftth Fast Connector Push Type SC APC SM Fiber Optic Fast Connector

    • Ftth Fast Connector Push Type SC APC SM Fiber Optic Fast Connector
    • Ftth Fast Connector Push Type SC APC SM Fiber Optic Fast Connector
    • Ftth Fast Connector Push Type SC APC SM Fiber Optic Fast Connector
  • Ftth Fast Connector Push Type SC APC SM Fiber Optic Fast Connector

    Product Details:

    Place of Origin: China
    Brand Name: HICORPWELL
    Certification: IEC 60794-2-10/11
    Model Number: SC APC SM Fast Connector

    Payment & Shipping Terms:

    Minimum Order Quantity: 10sets
    Price: negotiation
    Packaging Details: Each fact connector into a plastic bag for SC Fast assembly
    Delivery Time: 15 working days
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 50000pcs Per Week
    Contact Now
    Detailed Product Description
    Type: SC APC Fast Connector Insertion Loss: Less Than 0.2 (max 0.4)
    Paintcoat Color: Blue Or Green Return Loss: ≥40dB
    Tensile Strength: >50N Application: 3mm Drop Cable, 3x2mm Flat Cable
    Packages: PE Bag With Stick Label Or Blister Package Leadtime: Within 5-7 Days Once Payment Confirmed

    Ftth Fast Connector Push Type SC APC SM Fiber Optic Fast Connector


    Fiber Optic SC APC Fast Connector make fiber terminations quick, easy and reliable.

    These fiber optic connectors offer terminations without any hassles and require no epoxy,

    no polishing, no splicing, no heating and can achieve similar excellent transmission parameters

    as standard polishing and  splicing technology.


    Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection

    without fusion splicing machine.

    Also, transparent design of the side cover which allows visual inspection.


    This connector is quick assembly which requires only normal fiber preparation tools:

    cable stripping tool and fiber cleaver.

    The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule

    and Ceramic groove,that is C-groove.


    We supply various fiber optic cold quick field assembly fast connector.

    SC or FC or LC or Mechanical Splicer ( Universal );

    APC or UPC or PC ;

    Pre-embedded ( Pre-polished ) Type or Straight through Type

    Fusion splice on ( Hot melt ) Type




    Feature:


    - Polishing way is UPC or APC

    - Connector type is SC/FC/LC and could match with normal SC/FC/LC adapter

    - Related cable is Bow-type drop cable 2.0*3.1 or normal 3.0mm.

    - Good performance and high success rate

    - Easiness in installation

    - Special tool is simple and convenient to use


    Most of Common Fiber Fast Connector is traditional technology with V-groove, main materials are glass ,plastic,and metal.

    Disadvantages On V-Groove:

    1,The poor butt joint's deformation is caused by V-groove forming process because the plastic rigidity is not good.

    2, The thermal expansion and cold shrinkage change greatly if V-groove with Plastic materials.

        Thus, the product can not work stably at -40~+85 ℃ environment.

    3,After the long service of poor butt joint , both plastic and metal materials are prone to aging deformation or rust,

    4,Groove easily deforms under force ,making docking point miss match ,inceasing.

    The original, and Hicorpwell high quality  fast connector with C-Groove (Ceramic Groove )

    Advantages On C-Groove (Ceramic Groove ):

    Ceramic material insure insert loss (IL) ranges less than 0.1db,when dealing it in high temperature ,low temperature,

    or high low temperature cycle.

    By the illustration,we could see clearly the insertion loss ranges following the temp.

    Specifications




    Items Test condition Value
    Optical performance Insertion Loss(1310nm&1550nm) <0.2dB(typical)/ 0.5dB(Max)
    Return Loss(1310nm&1550nm) UPC>40dB,APC>50dB

    Environmental Performance
    (Max. Insertion Loss change)

    Temperature Cycle -20°C ~+70°C (96hours) <0.2dB

    Mechanical Performance
    (Max. Insertion Loss change)

    Online tension 20N- 100N <0.2dB
    Impaction 3 axis/3times 4m high <0.2dB
    Repeated operation times 5




    Ftth Fast Connector Push Type SC APC SM Fiber Optic Fast Connector
