Payment & Shipping Terms:
|Cable Type:||1 / 2 / 4 Core FTTH Drop Cable Patch Cord Cable||Connectors:||SC UPC APC Connectors|
|Name:||Drop Cable||Length:||10m,20m,30m,50m. 100M,200M|
|Colors:||White, Black||Material:||LSZH, PVC|
|Core Number:||1 Core, 2 Core, 4 Core||Fiber Type:||G652D, G657A1, G657A2, OS2|

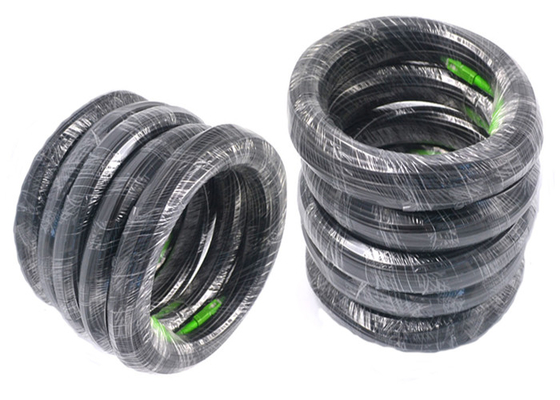

FTTH SC UPC To SC UPC Glass Fiber Optic Cable Fiber Optic Drop Cable 200M Leng
With increasing popularity and promotion of FTTH construction, drop cable build on G657A1,A2 fiber core
begin widely used in corridor, household envirment.
Ad one entering fiber optic cable, drop cable is suitable for applicatin of outdoor to indoor connection and
termianl installtin requiring smaller cable bending.
The optical fiber unit is positioned in the center. Two steel wired or FRP are placed at the two sides.
A steel wired as the additional strength member is also applied. Then the cable has a black color and white LSZH sheath.
1. High bandwidth and excellent communication transmission property;
2. Two parallel FRP strength members make sure good performance of crush resistance to protect the fiber.
3. Simple structure, light weight and high performance;
4. Low smoke zero halogen and flame retardant sheath.
According to the way of cable installation , we could factory preterminate connectors in one end or both ends on drop cable, compared to fast connector, drop cable patch cord have higer stablility and service life .
This cable replaces the standard copper wire of the local Telco as it can carry high-speed broadband services integrating voice, data and video, and runs directly to the junction box at the home or building.
1.Two parallel fiber reinforced plastic as the strength member ensures good performance of crush resistance to protect the fiber.
Use in the fiber to the home projects
Suitable for being used in homes and offices
Ideal to use for direct installation into the houses
