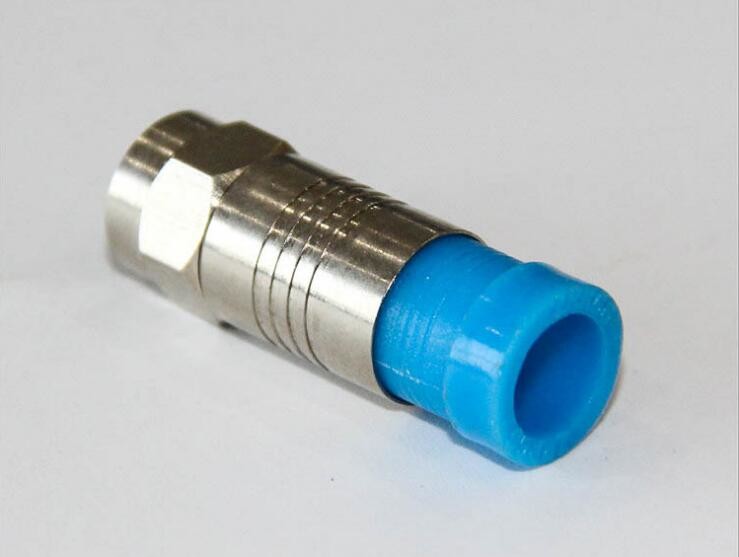

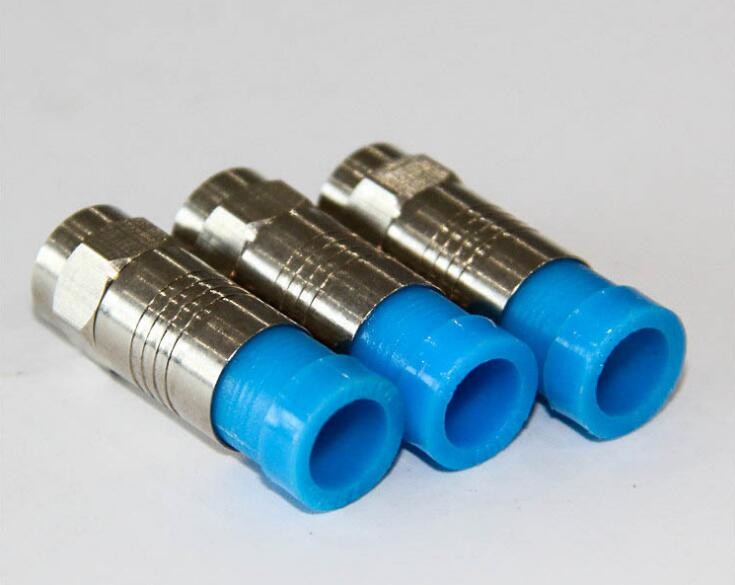

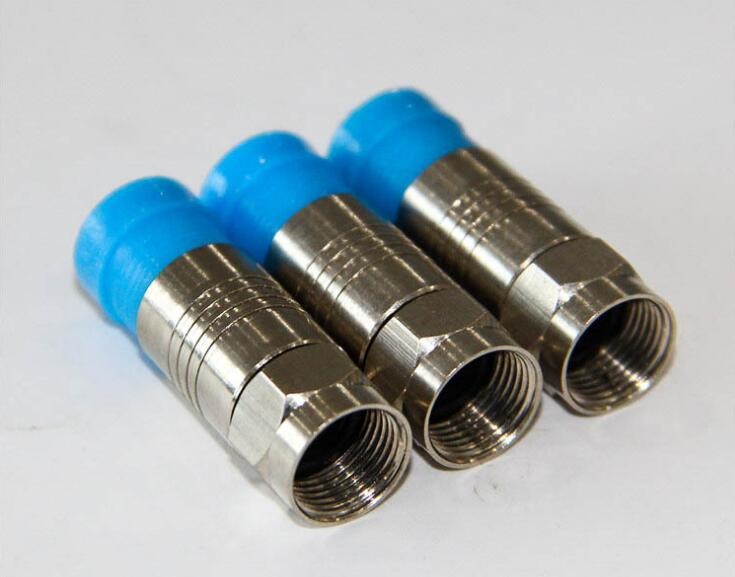

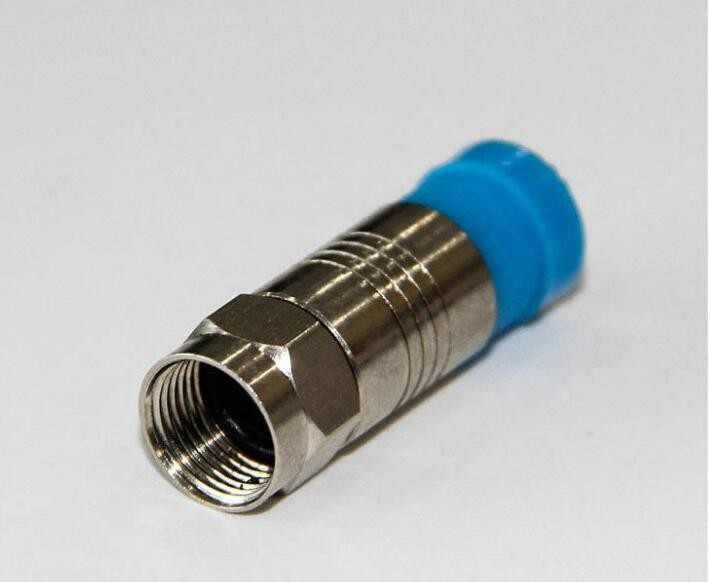

Brass Copper CATV Connector RG58 RG59 RG6 RG11 IEC 60169-24 Standard

Brass Copper CATV Connector RG58 RG59 RG6 RG11 IEC 60169-24 Standard

    • Brass Copper CATV Connector RG58 RG59 RG6 RG11 IEC 60169-24 Standard
    • Brass Copper CATV Connector RG58 RG59 RG6 RG11 IEC 60169-24 Standard
    • Brass Copper CATV Connector RG58 RG59 RG6 RG11 IEC 60169-24 Standard
    • Brass Copper CATV Connector RG58 RG59 RG6 RG11 IEC 60169-24 Standard
  • Brass Copper CATV Connector RG58 RG59 RG6 RG11 IEC 60169-24 Standard

    Product Details:

    Place of Origin: China
    Brand Name: HICORPWELL
    Certification: IEC 60794-2-10/11
    Model Number: Brass Connector Copper connector RG58 RG59 RG6 RG11 compression connector CATV connector

    Payment & Shipping Terms:

    Minimum Order Quantity: 100K pcs
    Price: negotiation
    Packaging Details: 100000 Piece/Pieces per Week Brass Connector Copper connector RG58 RG59 RG6 RG11 connector
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 100000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Type: RG58 RG59 RG6 RG11 Name: Brass Connector Copper Connector RG58 RG59 RG6 RG11 Compression Connector CATV Connector
    Frequency Range: DC~1GHz Vibration: 100m/s2 (10~500Hz)
    Durability(mating): ≥500(cycles) Power Capacity: > 20 A
    Insulating Resistance: ≥ 1000 MΩ @DC500V Withstanding Voltage: 170V Max

     Brass Connector Copper connector RG58 RG59 RG6 RG11 connector


    1.Best price


    2.OEM are welcomed




    Specifications:



    Competitive price


    High quality approved,strict QC controlled.

    Specialized and personalized service

    Short lead time.

    Great variety of products,attractive design

    OEM and ODM are welcomed


    In order to provide an one-stop service, we proudly offer cable assemblies for our customers.


    we have  own fully trained technicians to make it happen.


    Each cable is fully tested for pin-pin continuity, as well as having a high voltage test to ensure



    that there are no potential breakdown problems.



    Every cable is fully inspected to ensure that it meets the requirements specified.


    We do it according to customers' requirements.If you would like to discuss your requirements



    or receive a quotation, please feel free to contact us.


    We can make all types of cables as per customers' request.





    MOCO P / N
    cable assembly
    Temp (min)
    -40 deg
    Temp (max)
    200 deg C
    Humidity (max)
    <=95% [at 60 deg C / 140 F]
    Vibration
    15 g [10 Hz - 2000 Hz]
    Shock Resistance
    100 g [ 6 ms]
    Salt Spray Corrosion
    >144 hr
    Shielding (min)
    75 dB (10 MHz)



    Characteristic impedance 75Ω Temperature range -65~+165°C
    Frequency range 0 MHz to 3 GHz Working Voltage ≤170V
    Center conductor retention force ≥0.2 N Vibration 100m/s2 (10~500Hz)
    Conductor resistance Center Conductor ≤ 10 mΩ
    Outer Conductor ≤ 5 mΩ
    Durability Mating cycles ≥500
    Withstanding voltage ≤500V rms
    Voltage Standing Wave Ratio Straight ≤1.20
    Right angle ≤1.30
    Material And Plating3 Parts Name Material Plating
    Body Brass Nickel plated
    Pin contact Brass Gold or silver plated
    Resilient contact Tin bronze Gold or silver plated
    Insulators PTFE
    Gaskets Silicon rubber
    Crimp ferrules Copper alloy Nickel or gold plated
    Applicable standard IEC 60169-24





    Brass Copper CATV Connector RG58 RG59 RG6 RG11 IEC 60169-24 Standard

    Brass Copper CATV Connector RG58 RG59 RG6 RG11 IEC 60169-24 Standard
