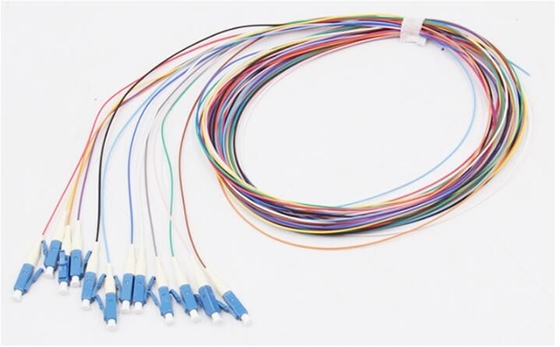

G652 G657 Fiber Optic Pigtail Simplex 9 / 125 Single Mode PVC LSZH Jacket

G652 G657 Fiber Optic Pigtail Simplex 9 / 125 Single Mode PVC LSZH Jacket

    • G652 G657 Fiber Optic Pigtail Simplex 9 / 125 Single Mode PVC LSZH Jacket
    • G652 G657 Fiber Optic Pigtail Simplex 9 / 125 Single Mode PVC LSZH Jacket
    • G652 G657 Fiber Optic Pigtail Simplex 9 / 125 Single Mode PVC LSZH Jacket
  • G652 G657 Fiber Optic Pigtail Simplex 9 / 125 Single Mode PVC LSZH Jacket

    Product Details:

    Place of Origin: China
    Brand Name: HICORPWELL
    Certification: IEC 60794-2-10/11
    Model Number: Fiber Optic Pigtail

    Payment & Shipping Terms:

    Minimum Order Quantity: 10sets
    Price: negotiation
    Packaging Details: Max 100m/ per reel for 5.0 mm OD cable
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 5000pcs Per Week
    Contact Now
    Detailed Product Description
    Form Factors: Duplex/ Simplex Connectors: Customized Or LC Connectors
    Paintcoat Color: Orange /Blue/ Red Cable Diameters: 0.9mm/ 2.0mm/ 3.0mm
    Length: Per Reel.100m -1000m Application: Outdoor Communication
    Fiber Type: Single Mode/ Multimode End Face Type: PC/UPC/APC
    Jacket Material: LSZH/ PVC Connector Type: SC/LC/FC/ST/MPO/MTRJ/E2000
    High Light:

    fiber optical pigtail

    ,

    fiber pigtails patch cords

    G652 G657 Fiber Optic Pigtail 12 Cores Simplex 9/125 Single Mode PVC LSZH Jacket







    Connectorized cable assemblies are cord-type fiber optical cables terminated with connectors at both end.



    The type of cable fiber and connector and the length of the patch cords can be freely specified by the customer as shown below.



    Pigtails are used for terminating fiber optical cables by splicing them the fibers of the cable and connecting the other end,



    which supplied with a connector to a patch panel or directly to equipment.







    • Eliminates troublesome Field Terminations
    • Saves time and prevents incorrect patching with color-coded pigtails
    • The protective outer jacket is removable, for tighter bend radius requirements or high density installations
    • Low Back Reflection and Insertion Loss
    • Perfect for use in Data Centers, premise installations, LAN, WAN, Telecommunication and Data Processing Networks



    Features:



    Low insertion Loss

    Easy installation

    Plug-pull, key-oriented coupling mechanism

    Simplex and Duplex

    Single mode and Multimode

    PC, UPC and APC polishing

    Interferential parameters

    Hybrid patch-cords are available upon request

    Fan-out available

    Pigtail available

    Compliant with Telcordia GR-326-CORE

    Jacket material: PVC, LSZH, OFNR, OFNP

    Jacket diameter: 0.9mm, 2.00mm or 3.0mm



    Application:



    Connection of optical transmission equipment

    ODF of optical transmission system

    CATV

    High quality graphic transmission network

    High speed data transmission network

    Computer networks

    Telecommunication networks



    Parameter Unit LC/SC/ST/FC
    SM(9/125) MM(50/125 or 62.5/125)
    PC UPC APC PC
    Insertion Loss dB ≤0.3 0.2 ≤0.3 ≤0.2
    Return Loss dB 45 ≥50 ≥60 35
    Exchangeability dB ≤0.2
    Repeatability dB ≤0.2
    Durability Time >1000
    Operating Temperature °C -40~75
    Storage Temperature °C -45~85

    Product Parameters


    Connector End A Fiber Optic Connector
    End B LC,or SC,FC,ST......
    Cable Diameter(mm) 4.0mm/ 7.0mm/ 8.0mm
    Material of jacket TPU
    Fiber Core 4,8,12 or specified
    Mode Singlemode Multimode
    Operating Wavelength(nm) 1310/1550 850/1310
    Polishment UPC APC UPC
    Insertion Loss(Max.dB) 1.5 1.0
    Return Loss(Min.dB) 50 35
    Mechanical Features Plug ≤1000N(main cable)
    Socket ≤100N(Branch cables)
    Grade IP68
    Mating time 500 Min
    Durability(Max.dB) 0.2
    Reaptability(Max.dB) 0.5
    Operating Temperature(℃) -40~+85
    Storage Temperature(℃) -40~+85
















    G652 G657 Fiber Optic Pigtail Simplex 9 / 125 Single Mode PVC LSZH Jacket 0G652 G657 Fiber Optic Pigtail Simplex 9 / 125 Single Mode PVC LSZH Jacket 1
