| Place of Origin: | China |
| Brand Name: | HICORPWELL |
| Certification: | IEC 60794-2-10/11 |
| Model Number: | Cat5e Cat6 Cat6a Cat7 Lan Cable |
| Minimum Order Quantity: | 1 roll |
|---|---|
| Price: | negotiation |
| Packaging Details: | 305 meters each roll |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 500 Rolls Per Week |
| Cable Type: | Cat 6 Network Ethernet Lan Cable | Paintcoat Color: | Black Or Orange Or Others |
|---|---|---|---|
| MOQ: | 30 Roll | Roll Length: | 305 M |
| Material: | CCA,BC Copper | Test: | Pass Fluke Test |
| Number Of Conductors: | 8 | Jacket Material: | PVC, ROHS PVC, LSZH PVC |
| Catalogue: | Network Outdoor Ethernet LAN Cable |

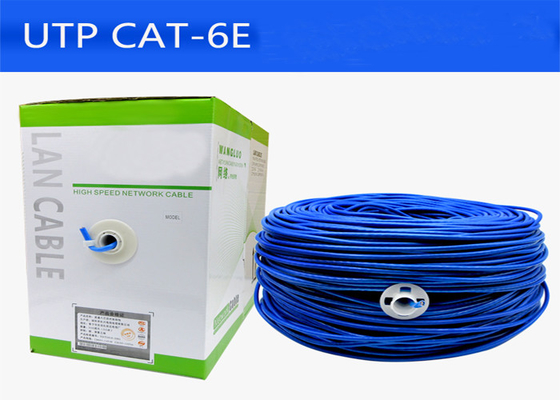

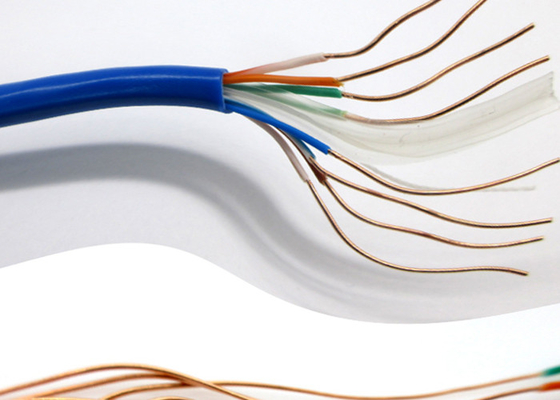

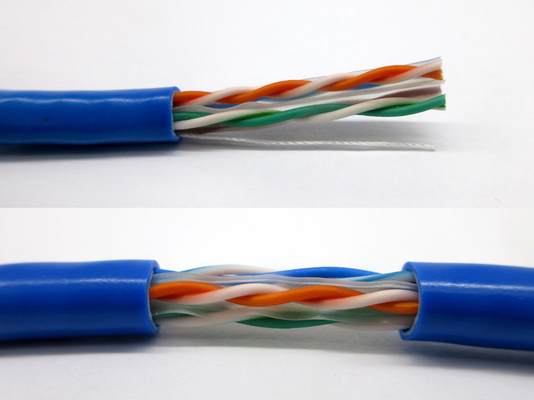

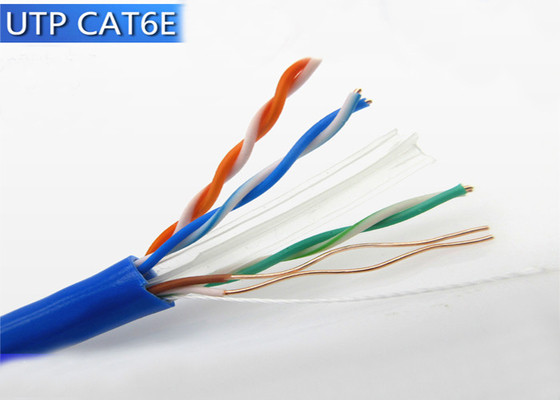

Network outdoor Cat6 4pr 23Awg 0.56mm Utp Bare Copper Single Ethernet LAN Cable
Full CAT6 specification with moulded snagless boots and unique connector latch protection Snagless
strain relief prevents damage to the RJ-45 latch during installation and removal Standards:
ISO/IEC 11801 EN50173 EIA/EIA 568B.2 Gigabit Ethernet ready 100% performance tested Stranded core
cables allowing repeated flexing without damage prolonging the life of the cable Ideal for connecting
computers hubs switches print servers patch panels etc.
Useful for colour coding your departments workgroups etc.
Specification
| Item | UTP Cat6 Cable |
| Conductor Material | Oxygen-free Copper |
| Conductor | AWG23 |
| Type | UTP |
| Plug | RJ45 |
| Jacket | PVC |
| Insulation | HDPE |
| Connector | Unshield |
| Plug gold plating | 3-50u |
| Color | Black, White, Grey, Blue, Green, Red, Orange, Yellow, Purple, Pink,etc. |
| Length | 100m/305m/500m |
| Certification | SGS,RoHS,ISO9001,fluke test |
| Pairs | Twisted Pairs |
| Application |
· ISDN,10BASE-T Ethernet(IEEE802.3) · 100BASE -T Ethernet(IEEE802.3) · 155MbpsATM · 100VgAnyLAN(IEEE802.12) · TP-PMD(ANSI X3T9.5) · 16Mbps Token Ring(IEEE802.5) · 1000BASE- T Ethernet(IEEE802.3ab) |
| Frequency | Return Loss Min | Attenuation Max |
NEXT Min |
PSNEXT Min |
ELFEXT Min |
PSELFEXT Min |
| (MHz) | (dB) | (dB/100m) | (dB/100m) | (dB/100m) | (dB/100m) | (dB/100m) |
| 1 | 20 | 1.84 | 74.3 | 72.3 | 68 | 65 |
| 4 | 23.01 | 3.69 | 65.27 | 63.27 | 55.96 | 52.96 |
| 10 | 25 | 5.89 | 59.3 | 57.3 | 48 | 45 |
| 16 | 25 | 7.51 | 56.24 | 54.24 | 43.92 | 40.92 |
| 20 | 25 | 8.43 | 54.78 | 52.78 | 41.98 | 39.98 |
| 31.25 | 23.64 | 10.64 | 51.88 | 49.88 | 38.1 | 35.1 |
| 62.5 | 21.54 | 15.36 | 47.36 | 45.36 | 32.08 | 29.08 |
| 100 | 20.11 | 19.78 | 44.3 | 42.3 | 28 | 25 |
| 200 | 18 | 28.97 | 39.78 | 37.78 | 21.98 | 18.98 |
| 250 | 17.32 | 32.84 | 38.33 | 36.33 | 20.04 |
17.04 |
| Cat5e UTP FTP SFTP Cable | ||||
| Conductor material | CCA,BC Copper | |||
| Conductor diameter | Solid one: 0.4mm, 0.45mm, 0.5mm | |||
| Stranded one: 24 AWG, 26 AWG, 28 AWG | ||||
| Num of Conductor | 2P, 4P, 8P, 10P, 25P, 50P, 100P, 200P ,,,,, | |||
| Insulation material | PE , HDPE | |||
| Insulation diameter | 0.9±0.02mm | |||
| Jacket material | PVC, ROHS PVC, LSZH PVC | |||
| Cat6 /cat6a/cat7 UTP FTP SFTP Cable | ||||
| Conductor material | CCA,BC Copper | |||
| Conductor diameter | Solid one: 0.5mm, 0.56mm, 0.57mm | |||
| Stranded one: 23AWG, 24 AWG | ||||
| Num of Conductor |
2P, 4P, 8P, 10P, 25P, 50P, 100P, 200P ,,,,,
|
|||
| Insulation material | PE , HDPE | |||
| Insulation diameter | 0.9±0.02mm | |||
| Jacket material | PVC, ROHS PVC, LSZH PVC | |||
