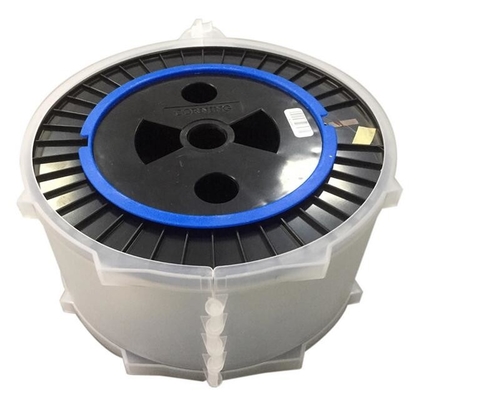

OM1 OM2 OM3 Launch Cable Bare Optical Fiber Rolls G.657A Or G.652D Standard

OM1 OM2 OM3 Launch Cable Bare Optical Fiber Rolls G.657A Or G.652D Standard

OM1 OM2 OM3 Launch Cable Bare Optical Fiber Rolls G.657A Or G.652D Standard

Product Details:

Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: OM1 OM2 OM3 Launch Cable Bare Optical Fiber Rolls

Payment & Shipping Terms:

Minimum Order Quantity: 10KM
Price: negotiation
Packaging Details: Standard length: 2km/roll (as per your requirements)
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000KM Per Month
Contact Now
Detailed Product Description
Fiber Type: Bare Optical Fiber Rolls Paintcoat Color: Aqua,yellow ,blue Or Others
Cable Purpose: ODTR Or FO Cable 1310nm: 0.36-0.22 DB/Km
1550nm: 0.5-0.4 DB/Km Fiber: G652D,G657A
Certificate: IEC 60794-2-10/11 Connectors: Can Be Added As Per Your Request, SC/LC/FC/ST Etc
High Light:

bare fiber optic cable

,

fiber optic wire



OM1 OM2 OM3 Launch Cable Bare Optical Fiber Rolls



Bare fiber reel delivers a good macrobending performance in the industry while maintaining compatibility

with current optical fibers, equipment, practices and procedures.

When using in an OTDR dummy fiber, it connects the OTDR to the link-under-test, discloses the insertion

loss and reflectance of the near-end connection.

OTDR Dummy fiber is  used in conjunction with an OTDR to measure complete link loss of a fiber.

This full-spectrum single-mode optical fiber reel when subjected to smaller radii bends experiences

virtually no signal loss. It is your best assistant in testing project.


For testing project, Both G.652 and G.657A type bare fiber are available.


Features:


  •  Full-spectrum single mode fiber
  •  Small macrobending radii, comply with G.657A or G.652D standard
  •  Small attenuation value
  •
  •  Suitable for any optical testing environment
  •  G652/G657 250um bare fiber
  •  Connectors can be added as per your request, SC/LC/FC/ST etc
  •  Standard length: 2km/roll (as per your requirements)



Specifications:




Physical parameters
Fiber Type Single mode
Diameter of Coated Fiber 250um
Diameter of Bare Fiber 125um
Min Macrobending Radus 33mm(G.652D) / 15mm(G.657A)
Typical attenuation value
1310nm working wavelength 0.33~0.35 dB/km
1490nm working wavelength 0.21~0.24dB/km
1550nm working wavelength 0.19~0.20dB/km
1625nm working wavelength 0.21~0.23dB/km



OEM service:


Cable Color:Red, Purple, White, Black, Orange and Pink can be customized.


Double-Colored boot Combination. Red-Blue, Red-Black, Blue-White, White-Green, Yellow-Blue,



Black-Blue etc.


Cable Printing. SM/MM, Cable O.D, Cable Jacket, Length, Parameters, Specifications



can be printed on the cable.


Cable Tag. Flag tag and wrap-around tag for options, the tagged information can be customized.



Custom Length. Any length can be customized as you required.


Custom Label. The paper label stick on the packing bag can be made with your required information.


Custom Package. The Brown carton can be printed with your logo.





Part No.



Description



Fiber-ROLL-SM10

SM G652D, 1KM,


Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional



Fiber-ROLL-SM20

SM G652D, 2KM,


Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC,


LC/UPC, LC/APC optional



Fiber-ROLL-MM10

MM (62.5/125um or 50/125um), 1KM,


Connector; FC/PC, SC/PC, ST/PC, LC/PC optional



Fiber-ROLL-MM20

MM (62.5/125um or 50/125um), 2KM,


Connector; FC/PC, SC/PC, ST/PC, LC/PC optional



Fiber-ROLL-SM710

SM G657A, 1KM,


Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional



Fiber-ROLL-SM720

SM G657A, 2KM,


Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC,


LC/UPC, LC/APC optional



Fiber-ROLL-OM310

OM3, 1KM,


Connector; FC/PC, SC/PC, ST/PC, LC/PC optional



Fiber-ROLL-OM320

OM3, 2KM,


Connector; FC/PC, SC/PC, ST/PC, LC/PC optional






            OM1 OM2 OM3 Launch Cable Bare Optical Fiber Rolls G.657A Or G.652D Standard 0
