AC100-240V Fiber Testing Tools Precision Fiber Welding Maching Fusion Splicing Machine
1 pcs one pcs in lplastic box ,then in the carton
MOQ
1188 USD per set
Price
AC100-240V Fiber Testing Tools Precision Fiber Welding Maching Fusion Splicing Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HGW
Certification: ISO9001
Model Number: HCW18BY
High Light:

fiber optic test equipment

,

fiber optic cable tester

Payment & Shipping Terms
Packaging Details: 132(W) x 205(D) x 98(H) mm (without protrusion) 1.15kg (without Battery), 1.3kg (with Battery BU-15)
Delivery Time: 5-8 days
Specifications
Return Loss: Over 60 DB
Typical Splicing Duration: 13 Second Fast Splicing, 30 Second For Normal Operation
Cladding Diameter: 80-150 Um
Coating Layer Dia: 100-1000um
Heating Mode: 41 Groups Of Operation Modes
Power Supply: 2200mAH Battery
Size: 132(W) X 205(D) X 98(H)mm
Weight: 1.15KG Including Battery
Coating Diameter: 100-1000um
Fiber Aligning Method: Advanced PAS Alignment Mode
Input:: AC100-240V,
Output: DC12V-15V/4.81A
Product Description

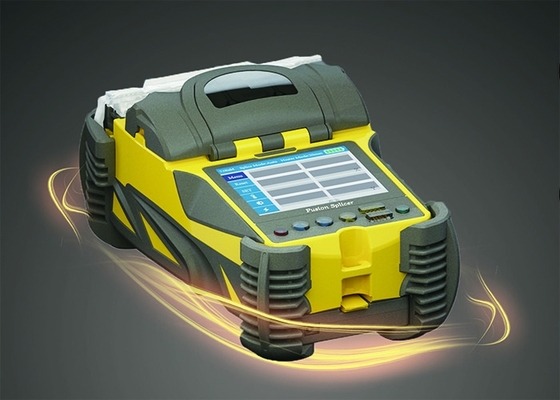

Precision Fiber Welding Maching Fusion Splicing Machine

Four Motors of high-Precision Fiber Welding Maching Fusion Splicing Machine

This latest fiber core alignment technology, automatic focus,four motors of high-precision fiber welding machine ,

Fully competent for 100km trunk, security monintoring , FTTH household and other fiber and cable fusion projects.

The machine CPU uses industrial quad core, and the reaction speed is fast. It is one of the most practical fiber welding machines

in the market at present .


Lightweight and compact, it is easy to use even in confined space.

The novel fiber imaging system makes the image clearer.

The real-time embeded Operating System provides a friendly man-machine interface and abundant functions.

The built-in large capacity Li-Ion battery can support long-time field work.

The real-time compensation system for temperature, humidity and air pressure has greatly enhanced the

device against unfavorable environment changes and thus guarantees its consistency of low loss splicing

in various environments.

Specifications:

- New fully-digitalized design;

- Small in size, lightweight: only 1.15kg with battery;

- Takes only 9 seconds for splicing,30 seconds for pyrocondensation;

- Can set automatic start of splicing or of pyrocondensation upon close of the cover;

- Simultaneous display of X/Y axis; zoom in up to 380 times original size;

- Real time discharging for adjustment; no need for further adjustment;

- Electrode has a long life; discharging times up to 5000;

- With USB ;

- 3.5 inch digital high resolution LCD;

- Precise real-time display of remaining battery capacity;

- Built-in high capacity battery, which enables up to 200 times of splicing and heating;



Typical Application:


H10A Fiber Splicer is mainly applied in fiber cable construction, fiber line maintenance,



emergency repair of fiber cables and tests and production of optical fiber components.




Standard equipment:




Applicable SM (G652& G657), MM (G651), DS (G653), NZDS
Fiber cleaved length 20-60mm
Fiber diameter 0.25-3.0mm/indoor cable
Oprate mode Automatic ,semi-automatic ,manual
Fiber aligning method  Precise alignment ,fiber core alignment,cladding alignment
Average Splice Loss 0.03dB(SM),0.02dB(MM), 0.05dB(DS), 0.03dB (NZDS)
Typical splicing time 9 second with standard SM fiber
Return loss >60dB
Fusion program 12 (templet), 188 (user)
Tube typical heating time 30 second
Protection sleeve length 60mm, 40mm and a series of miniature bush
Storage of splice result 5000 results, 3 parameter per result
Tension test 1.5-2.0N
Fiber magnification 380 times magnification (X axis or Y Axis,XY or X/Y);
Electrode life 5000
No. of splice/ heating with battery Typical 130 cycles
External interface USB interface, convenient for data download and software upgrade.
Display screen 3.5inch 640*480 color LCD monitor
Power Supply  AC100-240V, output: DC12-15V/4.5A
Heat shrinkable tube 60mm,40mm and other series of tube
Operating condition 0-5000m above seal level, -10~50ºC, max wind velocity of 15m/s
Dimension 132(W) x 205(D) x 98(H)mm
Weight 1.15KG including battery
