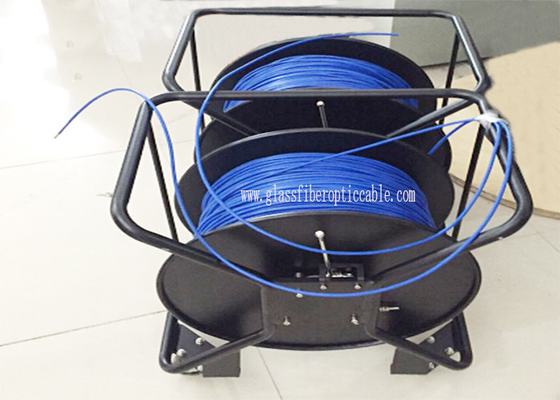

Tight Buffer Fiber Armoured 12 Cores Glass Fiber Optic Cable Armored Central Tube FO Cable

Tight Buffer Fiber Armoured 12 Cores Glass Fiber Optic Cable Armored Central Tube FO Cable

    • Tight Buffer Fiber Armoured 12 Cores Glass Fiber Optic Cable Armored Central Tube FO Cable
    • Tight Buffer Fiber Armoured 12 Cores Glass Fiber Optic Cable Armored Central Tube FO Cable
    • Tight Buffer Fiber Armoured 12 Cores Glass Fiber Optic Cable Armored Central Tube FO Cable
  • Tight Buffer Fiber Armoured 12 Cores Glass Fiber Optic Cable Armored Central Tube FO Cable

    Product Details:

    Place of Origin: China
    Brand Name: HICORPWELL
    Certification: IEC 60794-2-10/11
    Model Number: Armoured 12 Cores Glass Fiber Optic Cable Armored Central Tube Optical Fiber Cable

    Payment & Shipping Terms:

    Minimum Order Quantity: 100M
    Price: negotiation
    Packaging Details: 1km,2km,3km each wooden drum for export Port Shenzhen
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 5000km Per Week
    Contact Now
    Detailed Product Description
    Fiber Type: G652D Or G657A1 Connectors: Customized
    Paintcoat Color: Black Or Customized Jacket Cable Purpose: Outdoor Usage
    Length: 1km,2km,3km Each Wooden Drum Application: Outdoor Communication
    Cable Diameter:: 5.0mm Or 7.mm Cores Qty: 2f 4f 6f 8f 10f 12f 24f GYXTW 2-24 Core
    Weight Per KM: 18kg -22 Kg Jacket: PVC,LSZH,PE,TPU

    Tight Buffer Fiber Armoured 12 Cores Glass Fiber Optic Cable Armored Central Tube FO Cable



    Well-known as one of the leading outdoor Fo cable with rfp sm g657a1 manufacturers and suppliers



    in China, our FO  calbes are equipped with advanced technology and many highly qualified staff.



    Please be free to wholesale the customized products with us.



    Single mode or multimode fibres are position in a loose tube made of a high modulus plastic.



    The tube are filled with a water resistant filling compound.



    A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,



    locates in the center of core as a metallic strength member.



    Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.



    The cable core is filled with filling compound to protect it from water ingress,



    over which a thin PE inner sheath is applied.After the PSP is longitudinally applied overthe inner sheath,



    the cable is completed with a PE sheath.





    Description





    FTTH outdoor cable, the optical fiber unit is positioned in the center.



    Two parallel Fiber Reinforced steel wires(or FRP) are placed at the two sides.





    Then the cable is completed with a black or color LSZH sheath.





    Advantages





    Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;



    Two parallel steel wire/FRP strength members ensure good performance of crush resistance toprotect the fiber.



    Simple structure, light weight and high practicability;



    Novel flute design, easily strip and splice, simplify the installation and maintenance;



    Low smoke, zero halogen and flame retardant sheath.





    Product perameter





    Model Number GJXH,GJXFH
    Type Coaxial
    Number of Conductors 1--12
    Certification UL ROHS ISO
    OEM Welcome to OEM for FTTH outdoor Cable
    Item FTTH outdoor Cable
    Jacket Material LSZH
    Laying method FTTH/FTTX/FTTA
    Standards YD/T 1258.2-2003,ICEA-596,GR-409,IEC794,OFNR & OFNP
    Application Outdoor wiring, building introduction
    Operating Temperature -40 to 70 degree



    Technical Parameters



    Fiber count   Cable Tensile Strength Crush Resistance Bending Radius
    Cable Diameter weight Long/short term Long/short term Static/Dynamic
    mm kg/km N N/100mm mm
    1 (2.0±0.2)*(3.0±0.2) 8 30/60 300/1000 15/30
    2 (2.0±0.2)*(3.4±0.2) 8.5 30/60 300/1000 15/30
    1 (2.0±0.2)*(3.8±0.2) 9 30/60 300/1000 15/30
    4 (2.0±0.2)*(4.0±0.2) 10 30/60 300/1000 15/30





    Tight Buffer Fiber Armoured 12 Cores Glass Fiber Optic Cable Armored Central Tube FO CableTight Buffer Fiber Armoured 12 Cores Glass Fiber Optic Cable Armored Central Tube FO Cable

    Tight Buffer Fiber Armoured 12 Cores Glass Fiber Optic Cable Armored Central Tube FO Cable
