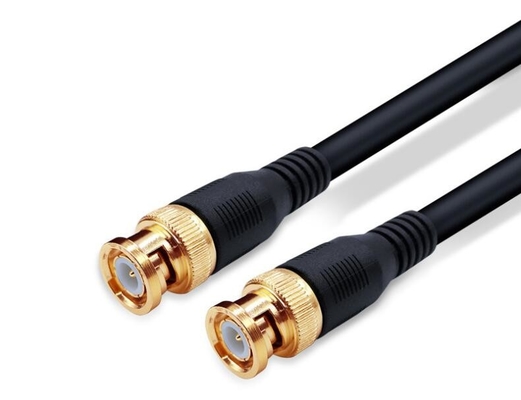

PVC Jacket RF Coaxial Cable 75-5 HD 3G SD SDI Extension Cable 1.5M To 200M Distance

PVC Jacket RF Coaxial Cable 75-5 HD 3G SD SDI Extension Cable 1.5M To 200M Distance

    • PVC Jacket RF Coaxial Cable 75-5 HD 3G SD SDI Extension Cable  1.5M To 200M Distance
    • PVC Jacket RF Coaxial Cable 75-5 HD 3G SD SDI Extension Cable  1.5M To 200M Distance
    • PVC Jacket RF Coaxial Cable 75-5 HD 3G SD SDI Extension Cable  1.5M To 200M Distance
  • PVC Jacket RF Coaxial Cable 75-5 HD 3G SD SDI Extension Cable  1.5M To 200M Distance

    Product Details:

    Place of Origin: China
    Brand Name: HICORPWELL
    Certification: IEC 60794-2-10/11
    Model Number: 3G SDI Cable With SDI Connector

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: negotiation
    Packaging Details: PE bag+carton Box Every 6 small boxes in a carton(size:30cm*20cm*20cm)
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 500000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Type: 3G SDI Cable Connector: SDI Connectors
    Cable Length: Customized Cable Dia: 7.0mm
    Distance: 1.5M To 200M Support: HD SDI /3G SDI/SD SDI
    Jacket: PVC Characteristic Impedance: 75Ω

    HD SDI Video Cable BNC Male Extension Cable BMCC Blackmagic Cinema Camera RG179 RF Coaxial Cable

    Specifications:



    Competitive price


    High quality approved,strict QC controlled.

    Specialized and personalized service

    Short lead time.

    Great variety of products,attractive design

    OEM and ODM are welcomed


    In order to provide an one-stop service, we proudly offer cable assemblies for our customers.


    we have  own fully trained technicians to make it happen.


    Each cable is fully tested for pin-pin continuity, as well as having a high voltage test to ensure



    that there are no potential breakdown problems.



    Every cable is fully inspected to ensure that it meets the requirements specified.


    We do it according to customers' requirements.If you would like to discuss your requirements



    or receive a quotation, please feel free to contact us.


    We can make all types of cables as per customers' request.





    MOCO P / N
    cable assembly
    Temp (min)
    -40 deg
    Temp (max)
    200 deg C
    Humidity (max)
    <=95% [at 60 deg C / 140 F]
    Vibration
    15 g [10 Hz - 2000 Hz]
    Shock Resistance
    100 g [ 6 ms]
    Salt Spray Corrosion
    >144 hr
    Shielding (min)
    75 dB (10 MHz)



    Characteristic impedance  75Ω Operating Temperature -45~+65°C
    Frequency Range DC~4GHz(50Ω) Dielectric Resistance ≥5Ω
    DC~2GHz(75Ω)
    Dielectric Withstanding voltage ≥1500V RMS Disengage force ≥0.6N
    Contact resistance Center conductor ≤1.5mΩ
    Outer conductor ≤1mΩ
    Durability Mating cycles ≥500
    Weatherproof Rate IP67
    Material And Plating Parts Name Material Plating
    Body Brass nickel plated
    Male center contacts Brass gold plated
    Insulators PTFE
    Gaskets Beryllium copper gold or nickel plated
    Crimp ferrules Copper alloy gold or nickel plated
    Suitable Cable Family RG59 Cable



    PVC Jacket RF Coaxial Cable 75-5 HD 3G SD SDI Extension Cable  1.5M To 200M DistancePVC Jacket RF Coaxial Cable 75-5 HD 3G SD SDI Extension Cable  1.5M To 200M Distance
