Uni - Tube Outdoor Glass Fiber Optic Cable GYXTW53 Double Steel Tape

Uni - Tube Outdoor Glass Fiber Optic Cable GYXTW53 Double Steel Tape

Uni - Tube Outdoor Glass Fiber Optic Cable GYXTW53 Double Steel Tape

Product Details:

Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Outdoor Fiber Optic Cable GYXTW53

Payment & Shipping Terms:

Minimum Order Quantity: 100M
Price: negotiation
Packaging Details: 2000m/Reel
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000km Per Week
Contact Now
Detailed Product Description
Fiber Type: G652D Or G657A1 Connectors: Customized
Paintcoat Color: Black Or Customized Jacket Cable Purpose: Outdoor Usage
Length: 300M To 2000M Per Reel. Application: Outdoor Communication
Operation Temperature: -40~80(℃) Tensile Resistance(long/short): 1200/1500(N/100mm)
Mini Bending Radius: 40 Mm(Static) Pressure Resistance(long/short): 3000/4000(N/100mm)
High Light:

fiber optic wire cable

,

fiber optic network cable

Double Steel Tape Armored Uni-tube Outdoor Fiber Optic Cable GYXTW53



  • Product Model:GYXTW53

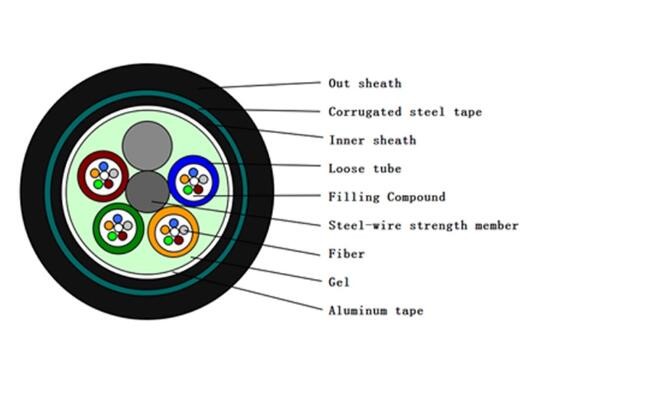

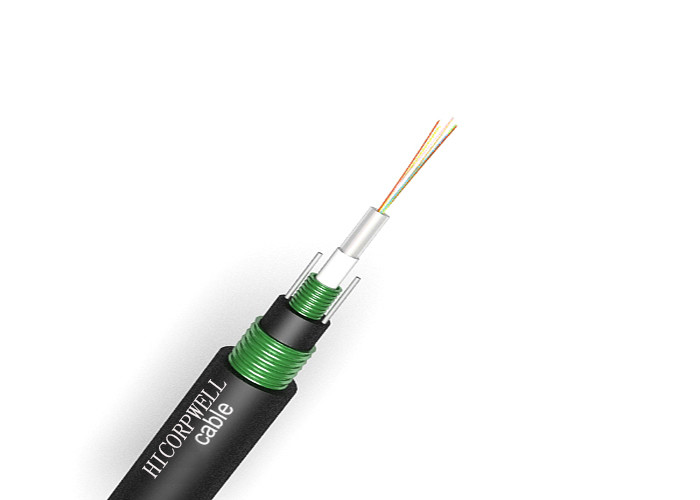

  • GYXTW53 fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.

The tube is wrapped with a layer of corrugated steel tape.

Between the corrugated steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight.

Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.



Glass tactical optical cable with the characteristics of strong tension stress, strong compressive resistance, high flexibility,



bending resistance, used for military tactical field, communication between radars or oil field, mining work place.



It has the compact all dielectric structure, for easy installation and repeatable usage.



SUS spring tube combined with the braiding to strength the cable, and ensures high mechanical and transmission performance.



Flame retardant PU guarantees structure stability and features of crush-resistant, rubbing-resistant, oil-resistant and flame



retardant. Well-known as one of the leading outdoor Fo cable  manufacturers and suppliers



in China, our FO  calbes are equipped with advanced technology and many highly qualified staff.



Please be free to wholesale the customized products with us.





Description





FTTH outdoor cable, the optical fiber unit is positioned in the center.



Two parallel Fiber Reinforced steel wires(or FRP) are placed at the two sides.





Then the cable is completed with a black or color LSZH sheath.





Advantages





Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;



Two parallel steel wire/FRP strength members ensure good performance of crush resistance toprotect the fiber.



Simple structure, light weight and high practicability;



Novel flute design, easily strip and splice, simplify the installation and maintenance;



Low smoke, zero halogen and flame retardant sheath.





Product Technical Parameters





Fiber count 2F-24F
Strength member Material steel wire Diameter 0.8mm
Loose Tube Material PBT Diameter 2-16core 2.2mm
18-24core 2.8mm
Tube-filling Mateial Filling compound
Water blocking system Mateial water blocking tape
Inner sheath Material MDPE Color Black
Diameter 7.6±0.2mm Thickness 1.5±0.1mm
Outer Sheath Material MDPE Color Black
Diameter 12.2±0.5mm Thickness 1.7±0.2mm

Cable mechanical and environment chararcteristics



Tensile strength Long term(N) 600N
Short term(N) 1500N
Crush load Long term(N) 500N/mm
Short term(N) 1500N/mm
Bending radius Dynamic 20D
Static 10D
Installation Temperature -10℃~+60℃
Storage Temperature -40℃~+70℃



Fiber characteristics



Fiber style Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.23 ≤3.0/1.0 ≤3.0/1.0
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7

Uni - Tube Outdoor Glass Fiber Optic Cable GYXTW53 Double Steel Tape 0Uni - Tube Outdoor Glass Fiber Optic Cable GYXTW53 Double Steel Tape 1Uni - Tube Outdoor Glass Fiber Optic Cable GYXTW53 Double Steel Tape 2
