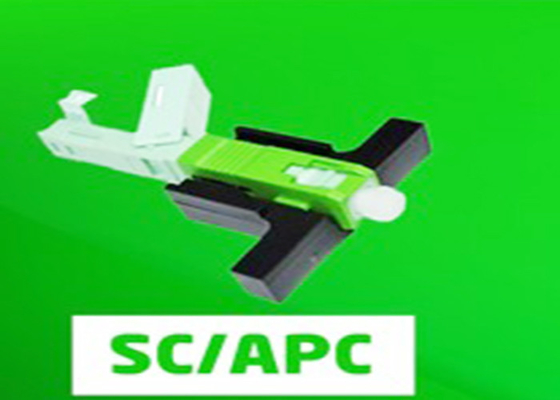

FTTH Insert Loss Fiber Optic Components SC APC UPC Fast Connector Blue Green

FTTH Insert Loss Fiber Optic Components SC APC UPC Fast Connector Blue Green

    • FTTH Insert Loss Fiber Optic Components SC APC UPC Fast Connector Blue Green
    • FTTH Insert Loss Fiber Optic Components SC APC UPC Fast Connector Blue Green
    • FTTH Insert Loss Fiber Optic Components SC APC UPC Fast Connector Blue Green
  • FTTH Insert Loss Fiber Optic Components SC APC UPC Fast Connector Blue Green

    Product Details:

    Place of Origin: China
    Brand Name: HICORPWELL
    Certification: IEC 60794-2-10/11
    Model Number: SC APC UPC Fast Connector

    Payment & Shipping Terms:

    Minimum Order Quantity: 10sets
    Price: negotiation
    Packaging Details: Each fact connector into a plastic bag for SC Fast assembly
    Delivery Time: 15 working days
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 50000pcs Per Week
    Contact Now
    Detailed Product Description
    Type: SC APC Fast Connector Insertion Loss: Less Than 0.2 (max 0.4)
    Paintcoat Color: Blue Or Green Return Loss: ≥40dB
    Drop Cable: 2.0*3.0mm Tensile Strength: >50N

    FTTH Insert Loss SC APC UPC Fast Connector Fiber Optic Components



    Field installation connector is a new kind of connector that could be used in FTTH project scene.



    They don’t need to polishing, no epoxy. They could be installed in the field and make connection



    less than two minutes. Of course, It don’t need fused the fiber.



    Just some little tools enough, so it could save time and cost.



    We could offer embedded type fast connector. This connector has a bare fiber insert in the ferrule.



    The front end face was polished in advance. The fiber mating point is in a precision C groove.





    Most of Common Fiber Fast Connector is traditional technology with V-groove, main materials are glass ,plastic,and metal.

    Disadvantages On V-Groove:

    1,The poor butt joint's deformation is caused by V-groove forming process because the plastic rigidity is not good.

    2, The thermal expansion and cold shrinkage change greatly if V-groove with Plastic materials.

    Thus, the product can not work stably at -40~+85 ℃ environment.

    3,After the long service of poor butt joint , both plastic and metal materials are prone to aging deformation or rust,

    4,Groove easily deforms under force ,making docking point miss match ,inceasing.



    The original, and Hicorpwell high quality fast connector with C-Groove (Ceramic Groove )



    Advantages On C-Groove (Ceramic Groove ):

    Ceramic material insure insert loss (IL) ranges less than 0.1db,when dealing it in high temperature ,low temperature,

    or high low temperature cycle.

    By the illustration,we could see clearly the insertion loss ranges following the temp.





    Specifications





    Items Test condition Value
    Optical performance Insertion Loss(1310nm&1550nm) <0.2dB(typical)/ 0.5dB(Max)
    Return Loss(1310nm&1550nm) UPC>40dB,APC>50dB

    Environmental Performance

    (Max. Insertion Loss change)

    Temperature Cycle -20°C ~+70°C (96hours) <0.2dB

    Mechanical Performance

    (Max. Insertion Loss change)

    Online tension 20N- 100N <0.2dB
    Impaction 3 axis/3times 4m high <0.2dB
    Repeated operation times 5





    FTTH Insert Loss Fiber Optic Components SC APC UPC Fast Connector Blue Green
