SMA905 Reflector Probe Quartz Fiber Beam 6.35mm Y Probe 6+1 Fiber 105um-1500um & 190nm-2500nm
100CM
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: 50um 100um 200um 400um Fiber
High Light:

SMA905 Reflector Probe Quartz Fiber

,

50um Reflector Probe Quartz Fiber Beam

Payment & Shipping Terms
Packaging Details: Standard length: Customized (as per your requirements)
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500KM Per Month
Specifications
Core Diameter (um): 50 105 200 300 400 600
Core Material: Quartz Fiber Optics
Connectors: Probe/SMA905/906
FIBER OPTIC BUNDLES Range: 200-1100nm
Keyword: SMA905 Reflector Probe Quartz Fiber Beam
Operating Temperature: --40℃~+85
Coating Material: Acrylate Coating
Cladding Dia (um): 125 125 220 330 440 660
Product Description

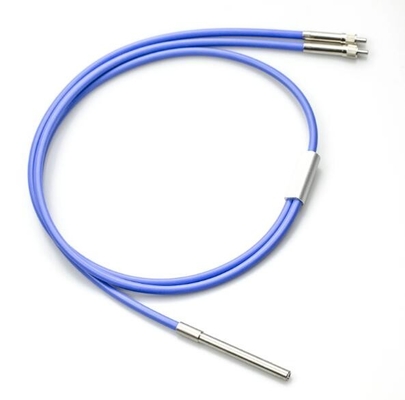

SMA905 Reflector Probe Quartz Fiber Beam 6.35mm Probe Y Probe 6+1 Fiber





SMA Fiber





All standard connectors (SMA 905, SMA 906, ST, FC) are available—or custom ferrules,



machined in-house to your specifications. Refer to individual fiber data sheets for more information



and to determine the best fiber for your application. NA is measured at the 95% intensity angle.



We strive to ensure the accuracy of all information provided; however, we imply no warranties and



disclaim any liability in connection with the use of this information.



Parameter
Specification
Core Diameter(μm)
50 105 200 300 400 600
CladdingDiameter(um)
125 125 220 330 440 660
Core Material
Pure Quartz
Cladding Material
Quartz
Coating Material
Acrylate Coating
Core:Cladding
1:1.1 or 1:1.05
NA(Numerical Aperture)
0.20-0.22
Working Band(nm)
200-1100
Fiber Length(M)
Customized
Operating Temperature (℃)
--40℃~+85


Notice :105um-1500um & 190nm-2500nm can be optional.



Hicorpwell SMA905 fiber optic connector or with an air gap protection improved metal SMA-905 connector,



end precision grinding large core diameter fiber optic energy, to meet the general semiconductor laser / modules



and output energy of the laser transmission in a low-power solid-state lasers;



The connection head of internal processes can be used without glue ring protection technology,



further enhance the cooling effect and increased energy fiber life, meet laser welding,



cutting and other high-power transmission needs.



SMA905 Reflector Probe Quartz Fiber Beam 6.35mm Y Probe 6+1 Fiber 105um-1500um & 190nm-2500nm 0
