|Name:||35KW -120V Wind Generator Turbine||Survival Wind Speed:||50m/s|
|Rated Rotor Speed:||120r/min||Blade Diameter (m):||12.5m|
|Machine Type:||Horizontal-axis Wind Turbine||Blade Material:||Glass Fibre Reinforced Plastic|
|Type Of Tower:||Guy Wire Or Free Standing||Capacity And Quantity Of Battery:||12V200AH 60 Pcs|
grid tied solar power system,
roof mounted wind generator

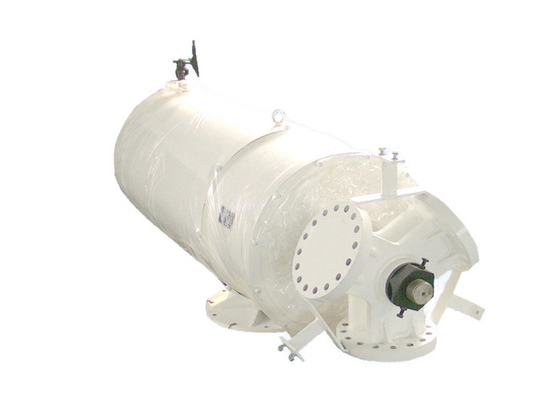

Windmill Generator Permanent Magnetic Synchronou 35KW Home Power Solution
1.Generator: the motor punching disk is made of 470 silicon steel sheet.
The generator winding is made of 240 degree high temperature copper wire, which has high insulation
performance, high magnetic efficiency and high power generation.
2.Blade is made of FRP, unidirectional fiber cloth, made of epoxy resin manual mold, flange plate
connection, convenient connection, installation without correction, good balance.
3.Wind turbine controllers are based on microcomputer control, PLC programmable logic control,
man-machine interface, 256 color touch screen, operation more intuitive and convenient, rectifier
components with temperature detection function, controller power acceptable input voltage range of
24-600V, in order to ensure the controller and the yaw motor can normal operation regardless of the
circumstances, signal sensor is shielded cable connection, make sure signal transmission uninterrupted, more reliable.
Detection internal voltage and current sensor is use of the 12 high-precision, the controller controls the
generator yaw according to wind speed, wind direction, current, voltage etc combined effects,yaw of the
minimum angle is 1 degree.
1. Machine Type: horizontal-axis wind turbine
2. Blade form: propeller
3. Blade number: 3 pcs
4. Blade material: glass fibre reinforced plastic
5. Type of generator: permanent-magnet 3 phase AC
6. Type of tower: guy wire or free standing
Supply power for:
Small villages, Air conditioners, Refrigerators, Water pumps,
Cookers, Color television sets, Washing machines, Lighting,
Electric fans and Charge
|Rated rotor speed||120r/min|
|Start up wind speed||3 m/s|
|Work speed||3-30 m/s|
|Security wind speed||50 m/s|
|Height of tower||18M(can design and made by your requirements)|
|Tower type||Guy wire tower or free standing tower|
|Output controller system||Off grid Controller & Inverter/On grid Controller & Inverter|
