G652/G657/OM1/OM2/OM3 LC/UPC Patch Cable Fiber Optic Pigtail
Connectorized cable assemblies are cord-type fiber optical cables terminated with connectors at both end.
The type of cable fiber and connector and the length of the patch cords can be freely specified by the customer as shown below.

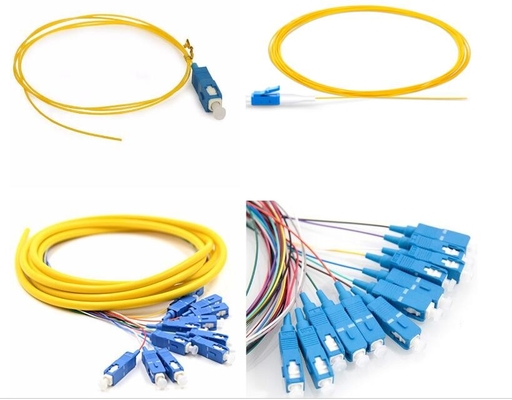

Pigtails are used for terminating fiber optical cables by splicing them the fibers of the cable and connecting the other end, which supplied with a connector to a patch panel or directly to equipment.
Features:
Low insertion Loss
Easy installation
Plug-pull, key-oriented coupling mechanism
Simplex and Duplex
Single mode and Multimode
PC, UPC and APC polishing
Interferential parameters
Hybrid patch-cords are available upon request
Fan-out available
Pigtail available
Compliant with Telcordia GR-326-CORE
Jacket material: PVC, LSZH, OFNR, OFNP
Jacket diameter: 0.9mm, 2.00mm or 3.0mm
Application:
Connection of optical transmission equipment
ODF of optical transmission system
CATV
High quality graphic transmission network
High speed data transmission network
Computer networks
Telecommunication networks
Parameter | Unit | LC/SC/ST/FC | |||
SM(9/125) | MM(50/125 or 62.5/125) | ||||
PC | UPC | APC | PC | ||
Insertion Loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥35 |
Exchangeability | dB | ≤0.2 | |||
Repeatability | dB | ≤0.2 | |||
Durability | Time | >1000 | |||
Operating Temperature | °C | -40~75 | |||
Storage Temperature | °C | -45~85 |
Connector | End A | Fiber Optic Connector | |||
End B | LC,or SC,FC,ST...... | ||||
Cable Diameter(mm) | 4.0mm/ 7.0mm/ 8.0mm | ||||
Material of jacket | TPU | ||||
Fiber Core | 4,8,12 or specified | ||||
Mode | Singlemode | Multimode | |||
Operating Wavelength(nm) | 1310/1550 | 850/1310 | |||
Polishment | UPC | APC | UPC | ||
Insertion Loss(Max.dB) | 1.5 | 1.0 | |||
Return Loss(Min.dB) | 50 | 35 | |||
Mechanical Features | Plug | ≤1000N(main cable) | |||
Socket | ≤100N(Branch cables) | ||||
Grade | IP68 | ||||
Mating time | 500 Min | ||||
Durability(Max.dB) | 0.2 | ||||
Reaptability(Max.dB) | 0.5 | ||||
Operating Temperature(℃) | -40~+85 | ||||
Storage Temperature(℃) | -40~+85 |
