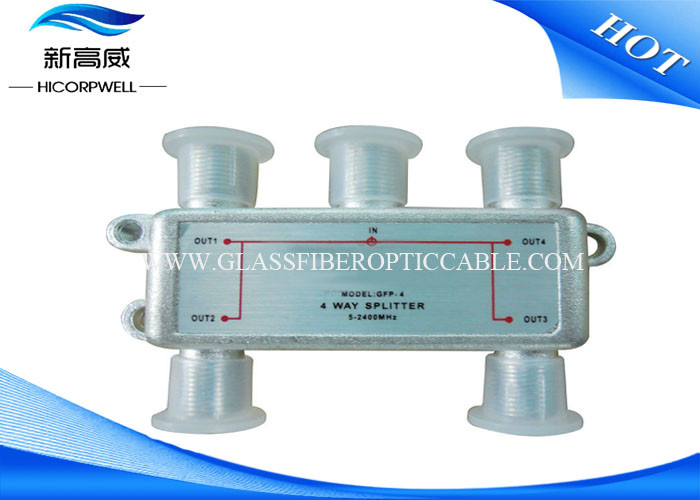

Catv Power HDMI AOC Cable Splitter 5 ~ 2400Mhz RF Zinc Die Casting Waterproof

100 pcs
MOQ
negotiation
Price
Catv Power HDMI AOC Cable Splitter 5 ~ 2400Mhz RF Zinc Die Casting Waterproof
Features Gallery Product Description Request A Quote
Features
Specifications
Compatibility: Catv Power Splitter (5~2400Mhz)
Frequency Range: 5~2400Mhz
Housing Material: Zinc Die-casting Waterproof
Dimension (mm): 54x47x15.5
Weight: 28.5G
Splitting Loss (dB): 3.5
High Light:

long hdmi cable

,

fiber optic hdmi cable

Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Catv Power Splitter (5~2400Mhz)
Payment & Shipping Terms
Packaging Details: Dimension (mm) 54x47x15.5, Weight : 28.5G
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000pcs Per Week
Product Description



Catv Power Splitter (5~2400Mhz) RF Tap CATV Cable HDMI AOC Cable

Features:


1. Low insertion loss, high return loss and isolation.


2. Die cast aluminum housing


3. RF frequency range 5 to 1000 MHz


4. CE, RoHS, ISO9001

Descriptions:



We are  in CATV line in China,we offer catv splitter,catv amplifier,catv optical receiver,



catv optical transmitter, catv optical switch,EDFA , catv modulator, digital equipments and so on.



Our catv power splitter feature:



1. easy to install,can well meet the requirements of satellite signals.



2. using zince alloy shell intergration,surface nickel processing cover the use of punch pinched



waterproof paint sealed.



3. waterproof good performance and high degree of shielding to prevent signal leakage



and external signak interference.





2. TECHNICAL PARAMETER





PARAMETER FREQUENCY RANGE (MHz) 2-way 3-way 4-way 6-way 8-way
INSERTION-LOSS 900-2050 4.8 10 10 17 16
IN-OUT 2050-2150 5.2 12 12 18 17
(MAX.dB) 2150-2300 5.8 13.5 13 20 23
RETURN-LOSS 900-2050 10 10 10 10 10
  2050-2150 10 10 10 10 10
(MIN.dB) 2150-2300 10 10 10 10 10
ISOLATION 900-2050 18 18 18 18 18
OUT-OUT 2050-2150 18 18 18 18 18
(MIN.dB) 2150-2300 18 18 18 18 18
