HD SDI Video Cable BNC Male Extension Cable BMCC Blackmagic Cinema Camera RG179 RF Coaxial Cable
500 pcs
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: SDI Connector
High Light:

long hdmi cable

,

high speed hdmi cable

Payment & Shipping Terms
Packaging Details: Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20
Delivery Time: 25 -40 days after sample confirmation
Payment Terms: Western Union, L/C, T/T
Supply Ability: 50000 Piece/Pieces per Month
Specifications
Type: Audio Video Cable
Name: HD SDI Cable
Side B: Right Angle BNC Male
Working: Super Long Hours For 7×24 Hours Without Stop.
Cable Length: Customized
Side A: Right Angle BNC Male
IP Rating: 50
Materials: PPS
Product Description

HD SDI Video Cable BNC Male Extension Cable BMCC Blackmagic Cinema Camera RG179 RF Coaxial Cable



Specifications:



Competitive price


High quality approved,strict QC controlled.

Specialized and personalized service

Short lead time.

Great variety of products,attractive design

OEM and ODM are welcomed


In order to provide an one-stop service, we proudly offer cable assemblies for our customers.


we have  own fully trained technicians to make it happen.


Each cable is fully tested for pin-pin continuity, as well as having a high voltage test to ensure



that there are no potential breakdown problems.



Every cable is fully inspected to ensure that it meets the requirements specified.


We do it according to customers' requirements.If you would like to discuss your requirements



or receive a quotation, please feel free to contact us.


We can make all types of cables as per customers' request.





P / N
cable assembly
Temp (min)
-40 deg
Temp (max)
200 deg C
Humidity (max)
<=95% [at 60 deg C / 140 F]
Vibration
15 g [10 Hz - 2000 Hz]
Shock Resistance
100 g [ 6 ms]
Salt Spray Corrosion
>144 hr
Shielding (min)
75 dB (10 MHz)





Characteristic impedance 50Ω 75Ω Operating Temperature -45~+65°C
Frequency Range DC~4GHz(50Ω) Dielectric Resistance ≥5Ω
DC~2GHz(75Ω)
Dielectric Withstanding voltage ≥1500V RMS Disengage force ≥0.6N
Contact resistance Center conductor ≤1.5mΩ
Outer conductor ≤1mΩ
Durability Mating cycles ≥500
Weatherproof Rate IP50
Material And Plating Parts Name Material Plating
Body Brass nickel plated
Male center contacts Brass gold plated
Insulators PTFE
Gaskets Beryllium copper gold or nickel plated
Crimp ferrules Copper alloy gold or nickel plated
Suitable Cable Family RG59 Cable

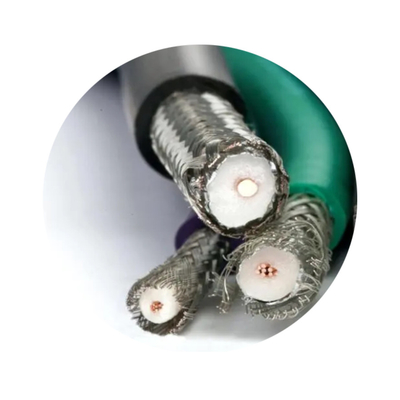

HD SDI Video Cable BNC Male Extension Cable BMCC Blackmagic Cinema Camera RG179 RF Coaxial Cable 0

HD SDI Video Cable BNC Male Extension Cable BMCC Blackmagic Cinema Camera RG179 RF Coaxial Cable 1
