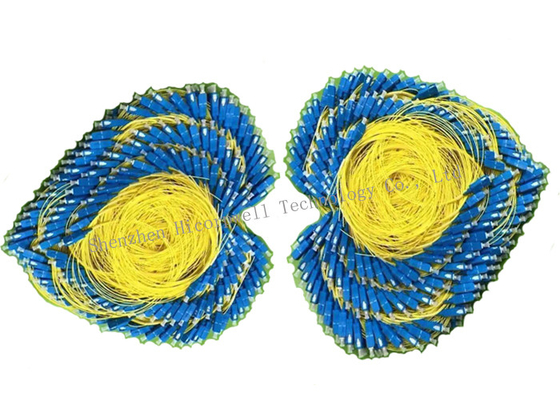

SC UPC 1M Length GJFJV-02 0.9 Distribution tight buffer Glass FIber Optic Pigtail
8.2 um Core Diameter, 125 um Cladding Diameter, 250 um Primary Buffer Diameter,
900 um Secondary Buffer, Total Outside Diameter, 0.14 Numerical Aperture,
less than 0.18 dB/km Attenuation at 1550 nm,
less than 18 ps/(nm-km) Dispersion at 1550 nm,
and -82 dB Rayleigh Backscatter Coefficient (for 1 ns Pulse-Width) at 1550 nm Wavelength.
Application: Characteristics:
☆.Components for various indoor cables. ☆.Soft. Easy to strip.
☆.Suitable for patch cords and pigtails. ☆.High quality tight buffered or Loose tube.
☆.Suitable for communication equipment ☆.Excellent mechanical and environmental performance.
served. ☆.Small cable volume. Ling weight.
Denominate:
GJ: Indoor cable
F: Non-metal central strength member
J: Tight buffer
V: pvc or lszh out sheath
Optical Characteristics
Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber A1b:50/126
Singlemode G.652(A,B,C,D) B1.1:Conventional fiber
G.653 B2: Zero dispersion shifted
G.654 B1.2 :Cut-off wavelength shifted
G.655 B4: Main technical data for positive
dispersion shifted single-mode fiber
