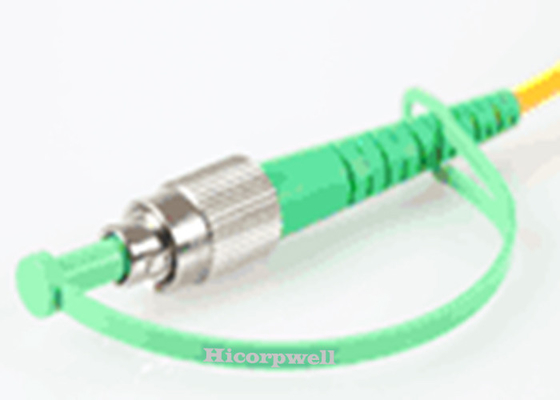

Dust Cap With Long Tail Cap 1.25mmLC Dust Cap 2.5mm FC Dust Cap for Various Connectors Fiber Optic Cable
Fiber Optic Patch Cord is a fiber optic cable capped at either end with connectors that allow it to be
rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment.
Description:
LC patch cord is a fiber optic cable used to attach one device to another for signal routing.
LC stands for Lucent Connector. It is a small form-factor fiber optic connector, half the size of the SC.
A patch cord is a fiber optic cable used to attach one device to another for signal routing. Normally, there are 4 types connector: FC/SC/LC/ST.. 3types ferrule: PC, UPC, APC…
PC stands for Physical Contact.With the PC connector, the two fibers meet as they do with the flat connector, but the end faces are polished to be slightly curved or spherical. This eliminates the air gap and forces the fibers into contact
UPC stands for Ultra Physical Contact.The end faces are given an extended polishing for a better surface finish. These connectors are often used in digital, CATV, and telephony systems.
APC stands for Angled Physical Contact The end faces are still curved, but they’re angled at an industry-standard eight degrees. This maintains a tight connection. These connectors are preferred for CATV and analogue systems.
II. Features:
Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss
High dense connection, easy for operation
High credibility and stability
Good in repeatability and exchangeability
III. Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
| Parameter | Unit | LC/SC/ST/FC | |||
| SM(9/125) | MM(50/125 or 62.5/125) | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥35 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | °C | -40~75 | |||
| Storage Temperature | °C | -45~85 | |||
| Connector | End A | Fiber Optic Connector | |||
| End B | LC,or SC,FC,ST...... | ||||
| Cable Diameter(mm) | 4.0mm/ 7.0mm/ 8.0mm | ||||
| Material of jacket | TPU | ||||
| Fiber Core | 4,8,12 or specified | ||||
| Mode | Singlemode | Multimode | |||
| Operating Wavelength(nm) | 1310/1550 | 850/1310 | |||
| Polishment | UPC | APC | UPC | ||
| Insertion Loss(Max.dB) | 1.5 | 1.0 | |||
| Return Loss(Min.dB) | 50 | 35 | |||
| Mechanical Features | Plug | ≤1000N(main cable) | |||
| Socket | ≤100N(Branch cables) | ||||
| Grade | IP68 | ||||
| Mating time | 500 Min | ||||
| Durability(Max.dB) | 0.2 | ||||
| Reaptability(Max.dB) | 0.5 | ||||
| Operating Temperature(℃) | -40~+85 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
