Plastic Optical Fiber (POF) is a unique member of the optical fiber family. POF is made of Poly Methyl Methacrylate (PMMA), with a large core diameter (~1 mm) and high numerical aperture (NA 0.3 – 0.5).
The following figure shows a comparison of a typical POF geometry compared to another well known optical fiber, the Multi Mode Glass Optical Fiber (MM-GOF). It is easy to appreciate the huge core diameter (20x) as well as the relativelly thin clad of POF compared to MM-GOF.
Thanks to its huge core diameter, POF is immune to misalignments and strong vibrations, and can be installed in rugged industrial and automotive environments without any loss of communication capacity.
POF is ideally suited for deployment either by a professional installer or a do-it-yourself installer using basic tools, such as a pair of scissors or a cutter, and inexpensive plastic connectors.
An optical transmission media, POF is completely immune to electrical noise. For example, existing copper wire installations will not interfere with data passing through POF lines, so POF can be installed anywhere next to electrical cabling.
POF and its connectors and optoelectronics are low cost consumer parts that enable installers to save on cable costs and installation, as well as testing and maintenance time.
Widely used in over 20 million cars for infotainment networks, POF is part of the automotive standard, Media Oriented Systems Transport for high-speed data transmission in car networks.
a)Application in decoration,
Plastic optical fiber enjoys various colors, flexible transmission, it is widely used in fiber lamps and lanterns,
plastic decoration projects which takes the colorful and translunary vision effects.
b) Application in illumination
Plastic optical fiber is applied in illumination which has the advantages of high brightness effects, low
attenuation, low heating. Long span, antiUV performance, safety and reliability, separating electricity from
lights. It is widely used in the protection of historic relics, jewelry and dangerous area lighting, such as miner road.
c) Application in screen fiber display
Plastic optical fiber has the advantages of low lights attenuation, high brightness, full chromaticity, vivid
vision, especially that low consumption, easy recycle, long span, and suitable for various indoor and outdoor surrounding.

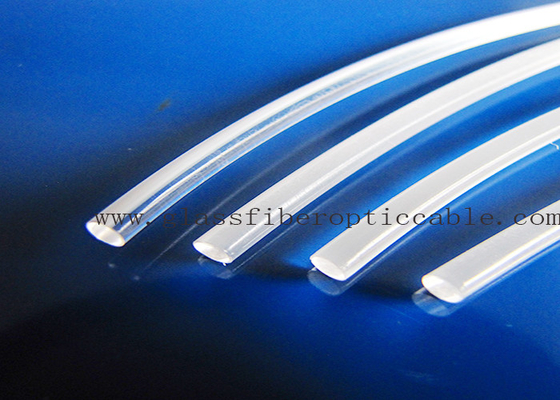

Side Glow Fiber Basic Parameter:
Diameter specification : 1.0mm--20.00mm
Length : 100m/spool
Allowable bending radius:8 times diameter
Allowable temperature range : -40~+85°C
Wavelength range: 390-760nm
Numerical aperture: 0.6
Clad refractive index:1.402
Temperature in storage: +20~+50°C
Details About The Product Code and Information :
|Product code||Inner dia.(mm)||Outer dia.(mm)||Jacket||Emitting Method||MOQ(M)|
|sof-5||5||5||no jacket||side glow||100|
|sof-6||6||6||no jacket||side glow||100|
|sof-8||8||8||no jacket||side glow||100|
|sof-10||10||10||no jacket||side glow||100|
|sof-12||12||12||no jacket||side glow||100|
|sof-14||14||14||no jacket||side glow||100|
|Psof-5||5||7||transparent PVC||side glow||100|
|Psof-6||6||8.8||transparent PVC||side glow||100|
|Psof-8||8||11||transparent PVC||side glow||100|
|Psof-10||10||13||transparent PVC||side glow||100|
Light Source :
|Model NO||product size||weight||specification||remark|
|HCW-S16W||L165*W88* H40mm||NW:0.6kg||16W led light, coupling head dia:20mm for 0.75mm 550pcs for1.0mm 300pcs RGB changeable colour with remote control temprature:-10~40°C voltage: 110V-265V 50HZ-60HZ single head||Remote control is for your option.8usd Price reduction without remote control|
|HCW-D32W||L170*W93* H49mm||NW:0.8kg||16W*2 led light coupling head dia:20mm*2 for 0.75mm 1100pcs for1.0mm 600pcs RGB changeable colour with remote control temprature:-10~40°C voltage: 110V-265V 50HZ-60HZ double heads||Remote control is for your option.Price reduction without remote control|
|HCW-S45W||300*200*80mm||4kg||45W led light, coupling head dia:30mm for 0.75mm 1200pcs for1.0mm 750pcs RGB changeable colour with remote control temprature:-10--40°C voltage: 110V-265V 50HZ-60HZ single head||Remote control available,No manual manipulation itse|
