FC / SC / LC / SMI Plastic Optical Fiber Connector
50 pcs
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: plastic optical fiber connector patchcord
High Light:

SC Plastic Optical Fiber Patchcord

,

LC Plastic Optical Fiber Connector

Payment & Shipping Terms
Packaging Details: Neutral packing or Standard packing
Payment Terms: Western Union, L/C, T/T
Supply Ability: 2000 pcs Per week
Specifications
Name: Plastic Optical Fiber Connector Patch Cord
FC Part Code: FC-025 FC-10
Fiber Products:: Plastic Optical Fiber Optic Patchcord
Keywords: FC SC LC SMI Plastic Optical Fiber Jumpers
Ferrule Material: Metal
Suitable Optic Fiber: POF
Application: Medical Equipment, Industrial Ethernet, Servo Control, Sensing Technology And Analysis, Measurement And Control Wiring.
OEM: OEM For Different Lengths And Type Cables Are Possible
Product Description

FC/SC/LC/SMI  plastic optical fiber connector plastic optical fiber patchcord





SC is a fiber optic connector developed by NTT of Japan which is snap-on standard square connector.



The structural dimensions of pin and coupling sleeve is exactly the same as the FC optical fiber connector.



LC connection SFP module that is made of easy-to-use modular jack (RJ) latch mechanism, which be converted to duplex optical fiber connector using the



bayonet. SC, LC, SMI connector is widely used in industrial automation and electrical automation control bus system, industrial robot intelligent system and



servo system, communication exchange system, medical sensor system.



Hicorpwell offers you customize FC/SC/LC/SMI plastic optical fiber jumpers of different lengths and type cables.



You can choose the special POF cable of drag chain, armoring, anti-UV, oil-resistant, low-smoke and halogen-free, VW-1 flame-retardant series,



and connectors that match your own interface functions.

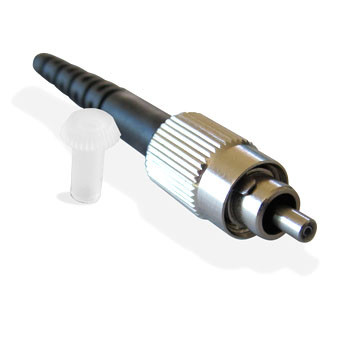

FC plastic optical fiber connector
Part Number Description Ferrule material Fiber (μm)*Qty. Suitable Optic Fiber
FC-025 0.25mm FC fiber optic connector Metal 240/250*1 POF
FC-050 0.50mm FC fiber optic connector Metal 486/500*1 POF
FC-075 0.75mm FC fiber optic connector Metal 738/750*1 POF
FC-10 1.0mm FC fiber optic connector Metal 980/1000*1 POF
FC-15 1.5mm FC fiber optic connector Metal 1470/1500*1 POF
SC plastic optical fiber connector
SC-025 0.25mm SC fiber optic connector Metal 240/250*1 POF
SC-050 0.50mm SC fiber optic connector Metal 486/500*1 POF
SC-075 0.75mm SC fiber optic connector Metal 738/750*1 POF
SC-10 1.0mm SC fiber optic connector Metal 980/1000*1 POF
SC-15 1.5mm SC fiber optic connector Metal 1470/1500*1 POF

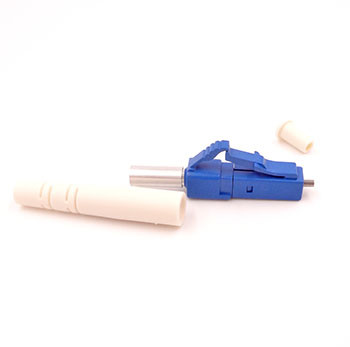

LC plastic optical fiber connector
LC-025 0.25mm LC fiber optic connector Metal 240/250*1 POF
LC-050 0.50mm LC fiber optic connector Metal 486/500*1 POF
LC-075 0.75mm LC fiber optic connector Metal 738/750*1 POF
LC-10 1.0mm LC fiber optic connector Metal 980/1000*1 POF

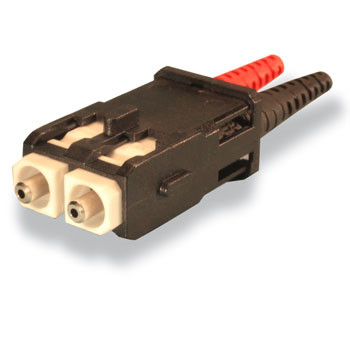

SMI plastic optical fiber connector
SMI 1.0mm SMI fiber optic connector Plastic 980/1000*2 POF
POF Fiber Optic Adapter
S-FC FC fiber optic adapter   - -
S-SC SC fiber optic adapter   - -
S-SMI SMI fiber optic adapter
