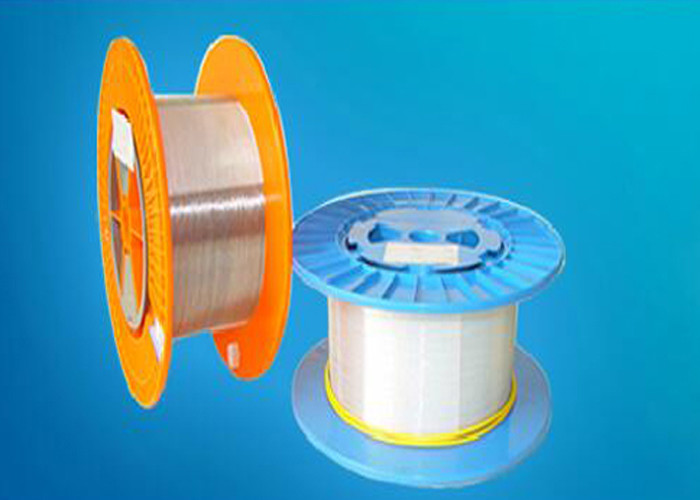

100μm 200um 300um 400um core diameter Ultraviolet Light Optimized Silica Fiber(BGSU )
◆ Fine transmission performance at ultraviolet waveband, antiγ-ray at 800nm;
◆ Applied in ultraviolet spectrum analysis, laser transmission, health detection, nuclear energy and
semiconductor etc;
◆ NA=0.22±0.02 (0.1to 0.28 on request);
CCDR: 1:1.04, 1:1.1, 1:1.2 (1:1.06, 1:1.15, 1:1.25, 1:1.4on request)

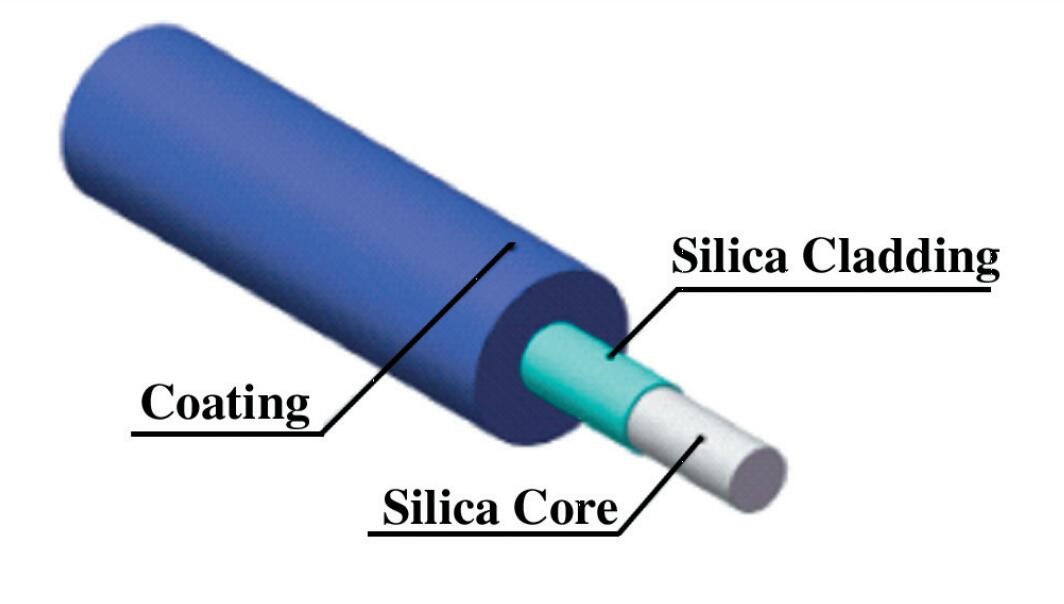

| Core[μm](±2%) | 50 | 100 | 105 | 115 | 192 | 200 | 300 | 365 | 400 | 500 | 600 | 800 | 1000 |
| cladding[μm](±2%) | 125 | 110 | 125 | 125 | 200 | 220 | 330 | 400 | 440 | 550 | 660 | 880 | 1100 |
| coating material : Acrylate, Temperature range[℃]: -40-85 | |||||||||||||
| coating[μm](±3%) | 245 | 245 | 245 | 245 | 245 | 350 | 450 | 550 | 550 | 770 | 840 | 1100 | 1300 |
| coating material : Polymide, Temperature range[℃]: -65-300 | |||||||||||||
| coating[μm](±3%) | 145 | 125 | 145 | 145 | 145 | 245 | 355 | 425 | 480 | 575 | 710 | - | - |
