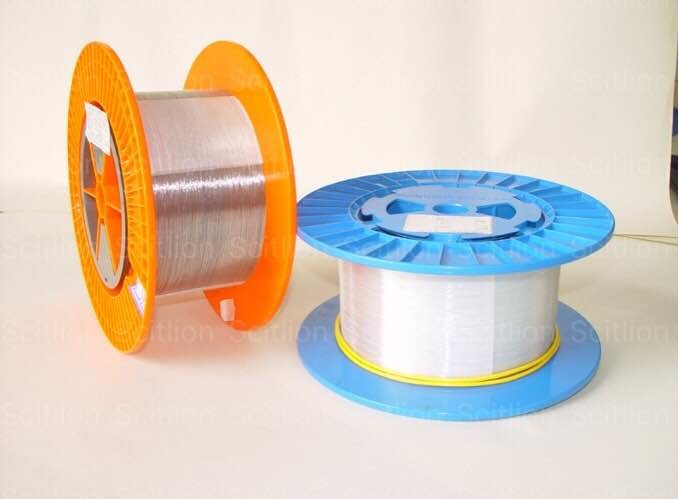

Medical Instruments Gradient - Index VIS - IR GITU Silica Fibers
10M-50M -100M
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Gradient-index VIS-IR silica fibers (GITU)
High Light:

Graded - Index Silica Fibers

,

Polymide Silica Fibers

Payment & Shipping Terms
Packaging Details: Standard length: 10km per reel (as per your requirements)
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000KM Per Month
Specifications
Features: Fine Peel Bond Property
Fiber Type: Gradient-index VIS-IR Silica Fibers (GITU)
Coating Material: Polymide
NA Range:: 0.1-0.32
CCDR: 1:1.04,1:1.1,1:1.2 (1:1.06,1:1.15,1:1.25,1:1.4on Request).
Product Description

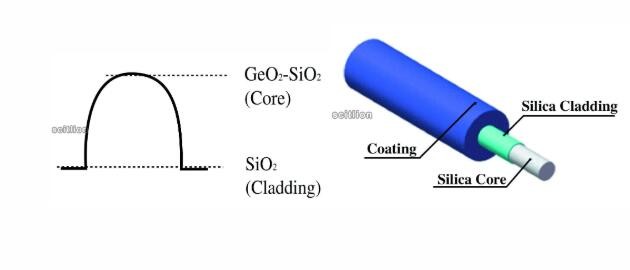

Gradient-index VIS-IR silica fibers (GITU)

Features:



◆ Lowloss,high band width;


◆ Fine peel bond property;


◆ High power light energy transmission, sensor, medical instruments, laser diode pig-tail;


◆ NArange: 0.1-0.32;


◆ CCDR:1:1.04,1:1.1,1:1.2 (1:1.06,1:1.15,1:1.25,1:1.4on request).





core[μm](±2%) 50 50 100 100 100 105 200 230 300
cladding[μm](±2%) 80 125 125 140 125 125 220 250 330



Coating material : Acrylate, Temperature range[℃]: -40-85



coating[μm](±3%) 165 250 250 250 250 250 500 500 500
NA 0.29±0.02 0.20±0.015 0.29±0.02 0.29±0.02 0.14±0.02 0.30±0.02 0.22±0.02 0.22±0.02 0.25±0.02



Coating material : Polymide, Temperature range[℃]: -65-300



coating[μm](±3%) 100 - 155 - 155 - - 280 370
Attenuation
[dB/km]
@850nm ≤4.0 ≤2.45 ≤3.0 ≤3.2 ≤6.0 ≤4.0 ≤6.0 ≤5.0 ≤7.0
@1300nm ≤2.0 ≤0.6 ≤0.7 ≤0.8 ≤3.0 ≤1.0 ≤3.0 ≤2.0 ≤3.0
Bandwidth
[MHz.km]
@850nm ≥200 ≥500 ≥250 ≥100 ≥200 ≥200 ≥200 ≥200 ≥200
@1300nm ≥800 ≥6000 ≥500 ≥200 ≥300 ≥300 ≥300 ≥300 ≥300
