Coating Polymide 190nm Anti - Irradiation BGHR Silica Fiber
10M-50M -100M
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Anti-irradiation Silica Fiber (BGHR)
High Light:

1200nm Silica Fiber

,

190nm Silica Fiber

Payment & Shipping Terms
Packaging Details: Standard length: 10km per reel (as per your requirements)
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000KM Per Month
Specifications
Features: Anti-irradiation
Fiber Type: Anti-irradiation Silica Fiber (BGHR)
Temperature Range[℃: 2
Operating Wavelength: 190nm To 1200nm
Product Description
Anti-irradiation Silica Fiber (BGHR)

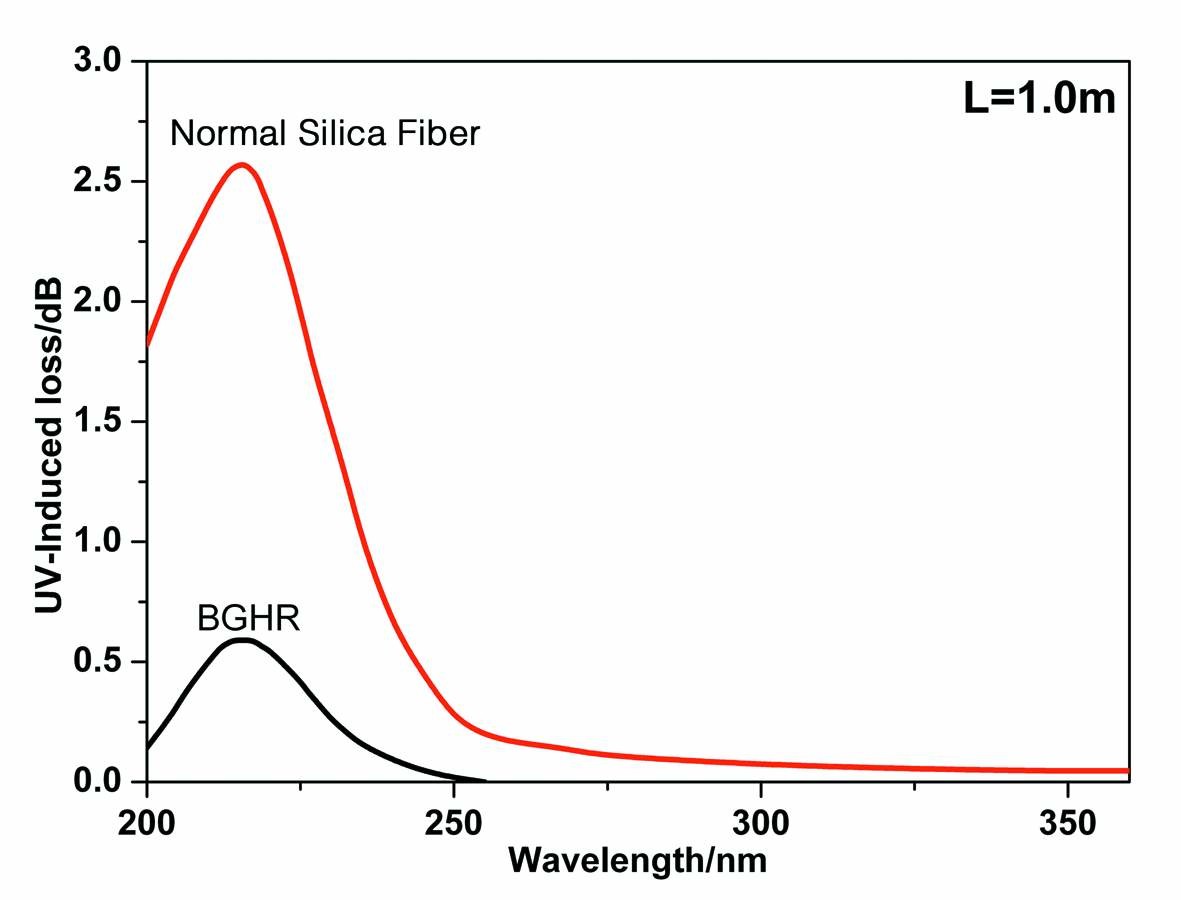

The transmission rate of the normal ultraviolet silica fiber will pour down through a period of strong UVdamage.



To avoid this phenomenon, ,we get a kind of anti-irradiation silica fiber with special doping, special manufacturing and drawing



process,which transmission rate doesn’t change much(about 80% of former one) after the long period of strong ultraviolet



lighting. Its operating wavelength is 190nm to 1200nm, performs better on spectrum analysis.

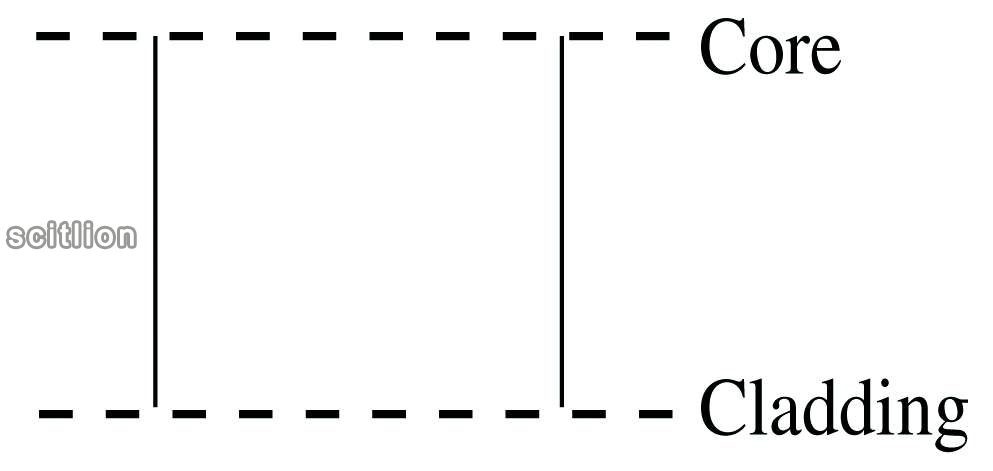

Core[μm](±2%) 100 200 300 400 500 600
Cladding[μm](±2%) 110 220 330 440 550 660
Coating Material : Polymide, Temperature range[℃]: -65-300
Coating[μm](±3%) 125 245 355 480 575 710





Coating Polymide 190nm Anti - Irradiation BGHR Silica Fiber 0

Coating Polymide 190nm Anti - Irradiation BGHR Silica Fiber 1
