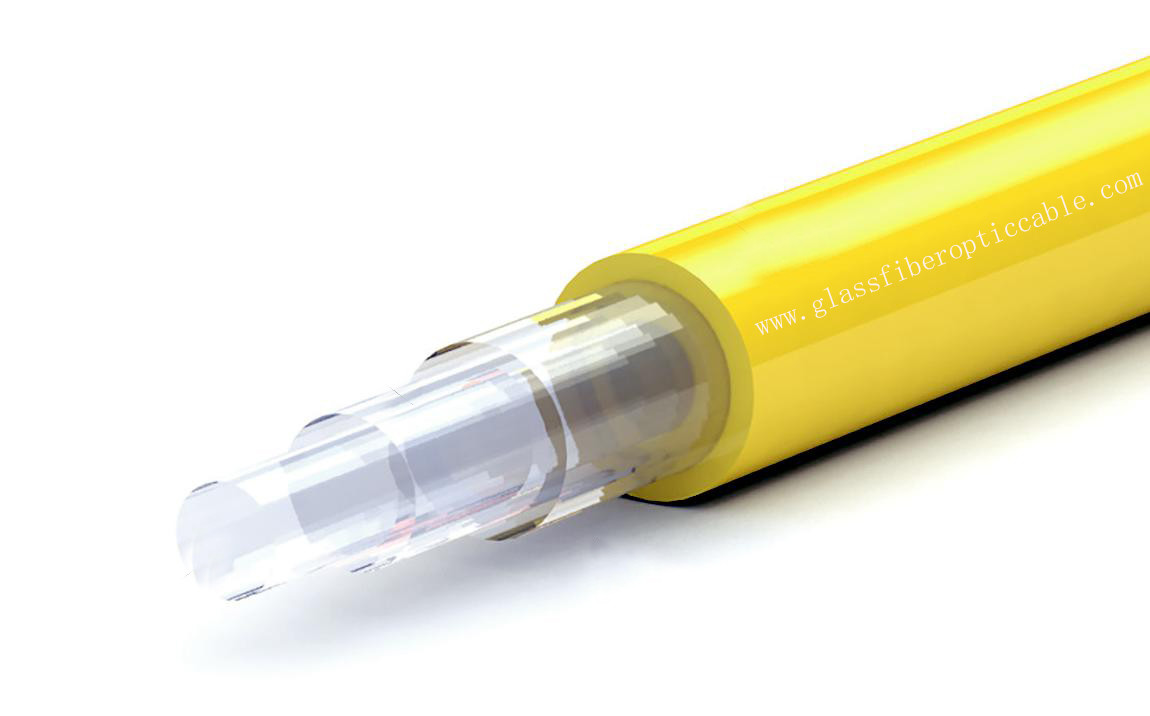

100μm Core Alternative Silica Fiber With Hard Polymer Cladding
5KM per reel , 10km per reel
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Cost-effective Alternative Silica fiber with hard polymer cladding in photodynamic therapy
High Light:

Alternative Silica Fiber

,

Polymer Cladding Silica Fiber

,

100μm core silica optical fiber

Payment & Shipping Terms

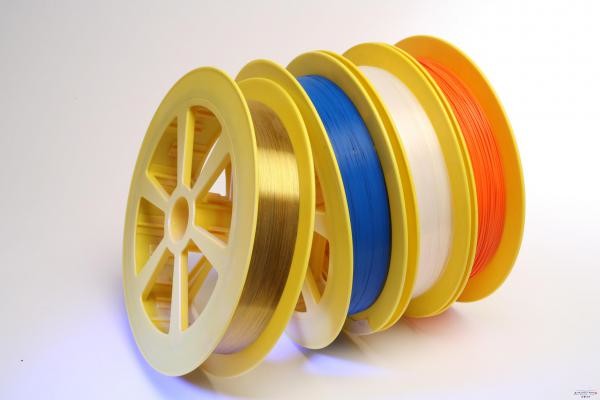

Packaging Details: Standard length: 5km/reel or 10km per reel (as per your requirements)
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000KM Per Month
Specifications
Paintcoat Color: Natural
Core (um): 50um-1000um
Core Diameter: 100μm 200um 300um 400um
Feature: Cost-effective  silica Fibers
Numerical Aperture (NA): 0,37 ± 0,02/ 0.39 ± 0,02
High NA: 0,57 ± 0,02
Product Description

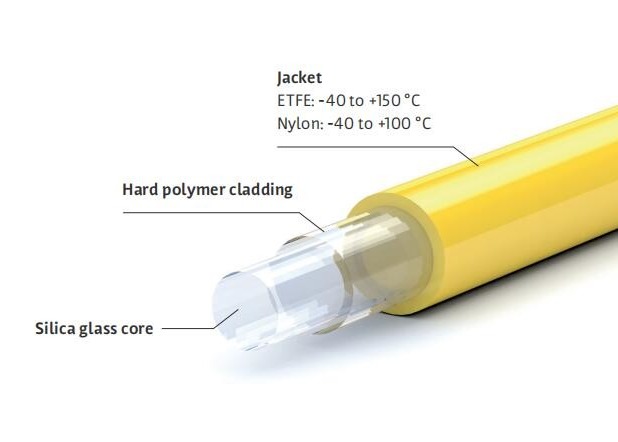

Cost-effective Alternative Silica fiber with hard polymer cladding from illumination to photodynamic therapy





Technical data



Wavelength / spectral range HUV and HWF: 350 – 2200 nm



Numerical aperture (NA) 0,37 ± 0,02 | 0,48 ± 0,02 | 0,52 ± 0,02 | 0,57 ± 0,02



Operating temperature -40 to +150 °C



Core diameter Available from 100 to 2000 μm





OH content HUV:                            High (> 700 ppm)



HWF: low (< 1 ppm)





Standard prooftest 100 kpsi



Minimum bending radius 50 × cladding diameter (short-term mechanical stress)

                                         150 × core diameter (during use with high laser power)



Attenuation values in relation to wavelength: see p. 19
