Multi Legged 2500nm 50um Core Optical Fiber Bundle
Multi Legged 2500nm 50um Core Optical Fiber Bundle
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Certification: IEC 60794-2-10/11
Model Number: Bare Optical Fiber Ø50um Bundles Fiber
High Light:

50um Core Optical Fiber Bundle


Multi Legged Optical Fiber Bundle


2500nm fiber optic cable bundle

Payment & Shipping Terms
Packaging Details: Standard length: 2km/roll (as per your requirements)
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000KM Per Month
Core Diameter: Ø50um
Type: Power Light Guide FUSED-END BUNDLES Fiber
Standard Connectors: SMA 905, SMA 906, ST, FC
Random Bundle Construction: Mapped
Scrambled Bundle Construction: Special Coherent Bundles Available
Single Bundle Configuration: Trifurcated

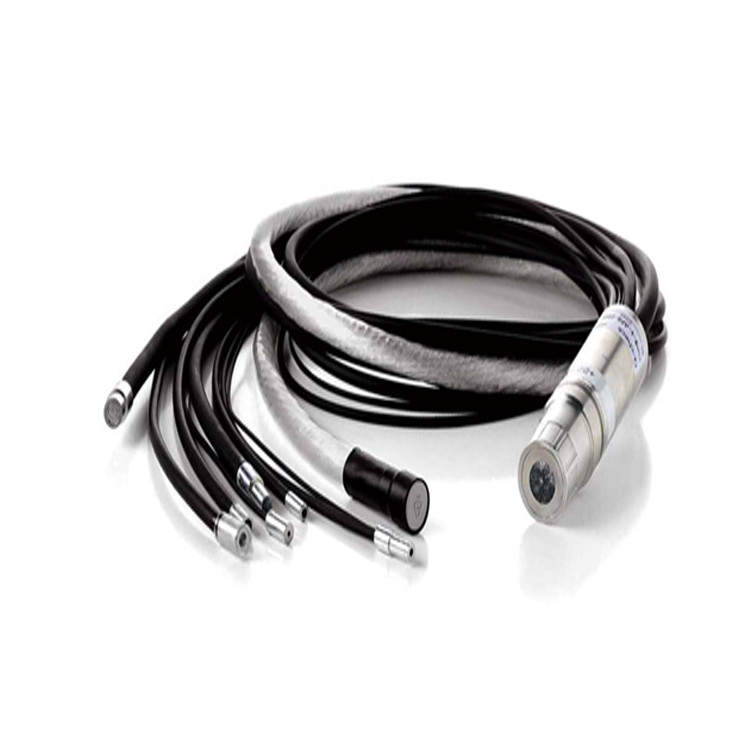

Bifurcated Bundle Configuration: Multi-Legged

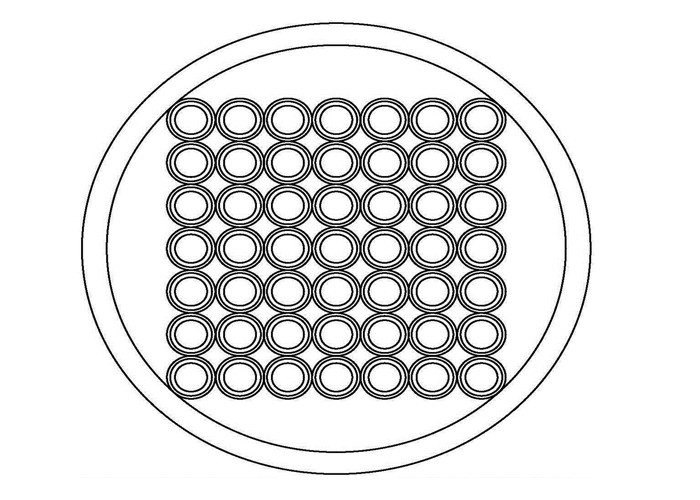

Bundle Active Area Geometry: Round/Line / Half Round/Ring / Square/Segmented Ring / Rectangle
Medical Application: Medical Diagnostics Laser Delivery Photodynamic Therapy Medical Treatments Such As UV Psoriasis Treatment
FIBER OPTIC BUNDLES Range: 160 To 2500 Nm
Keyword: Bare Optical Bundles Fiber
Product Description

Bare Optic Multiple Fiber Bare Optical Fiber Ø50um Bundles Fiber



Hicorpwell ensures the highest quality and best transmission for fiber optic bundles, while working within the boundaries of your application.


In order to optimize your bundle, we take several parameters into consideration: packing efficiency, fiber area efficiency, Numerical Aperture


optimization, fiber transmission, reflections, and an error factor (which includes numerical aperture discrepancies).


Our high quality fiber optic bundles can be made with any fiber and your choice of several configuration and construction possibilities.


In addition, a number of connectors, including all standard connectors—or custom ferrules, machined in-house—are available.


In addition,  UVNS (UV Non-Solarizing) fibers can be fused at the ends to eliminate inter-fiber spaces—while maintaining the fibers’ NA


and increasing transmission by 50%. Please see our following Bundle data sheet for more information about our non-solarizing bundles


for UV applications.




Broad temperature range: -190˚ to +1500˚C

Resistant to magnetic radiation

Vacuum compatibility

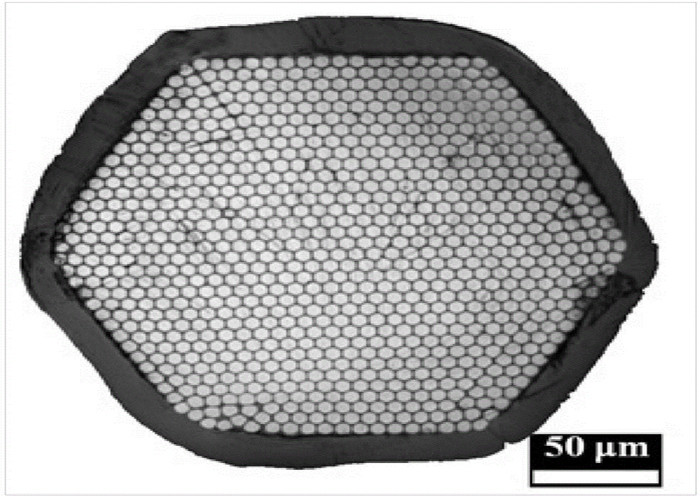

Highest fiber efficiencies (best packing factor)

Variety of NAs available

Broadest line of fiber types

Radiation resistance

All fiber production and assembly work

Broadest wavelength range available

completed in-house

Manufactured at GMP and ISO 9001 compliant facility



Fiber Types


 UV / WF – All Silica Fibers

 PUV / PWF – Plastic Clad Silica

160 to 2500 nm

200 to 2400 nm

Available NAs:

NA 0.40 ± 0.02 (2 meters) or 0.30 ± 0.02

Low NA – 0.12 ± 0.02

(greater than 40 meters)

Standard NA – 0.22 ± 0.02

Optran HUV / HWF – Hard Polymer Clad Silica Fibers

0.28 – 0.28 ± 0.02

350 – 2200 nm

0.30 – 0.30 ± 0.02

NA 0.37 or 0.48 ± 0.02

0.37 (Vis / IR) – 0.37 ± 0.02

Borosilicate – Soft Glass

0.44 (Vis / IR) – 0.44 ± 0.02

450 – 1600 nm

0.53 (Vis / IR) – 0.53 ± 0.02

NA 0.55 or 0.66 ± 0.02

Temperature (configuration dependent):

Temperature: -45˚C to +275˚C (-49˚F to 527˚F)

–190°C to +400˚C (-310˚F to +752˚F)


Vacuum compatible

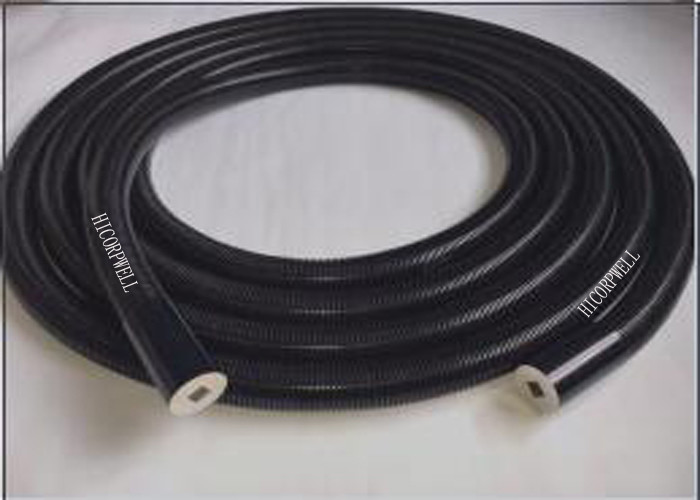

Jacketing Options


PVC Simplex – up to +80˚C (176˚F)





All bundles and assemblies are custom designed to meet your specifications. All standard connectors (SMA 905, SMA 906, ST, FC)


are available—or custom ferrules, machined in-house to your specifications. Refer to individual fiber data sheets for more information


and to determine the best fiber for your application. NA is measured at the 95% intensity angle.


We strive to ensure the accuracy of all information provided; however, we imply no warranties and


disclaim any liability in connection with the use of this information.



Spectroscopy Photodynamic therapy
Sensors Fluorescence excitation
UV photolithography Analytical instruments
Particle detection Scanning
Laser welding/soldering/marking Colorimetry
Laser delivery Laser diode pigtailing
Raman scattering Chemical analysis
Monitoring Semiconductor capital equipment

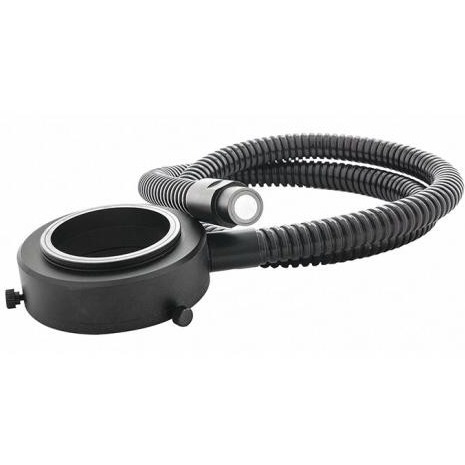

Smoke detection Microscope illumination
Pyrometry Streak cameras
Nuclear plasma diagnostics Remote illumination
Thomson scattering Reflective sensors
Quality control and inspection systems
