0.25mm PMMA Plastic Optic Fiber For Data Communication
12000M
MOQ
negotiation
Price
0.25mm PMMA Plastic Optic Fiber For Data Communication
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: 0.25mm 12000m roll end glow sparkle pmma plastic optical fiber for lighting decoration
High Light:

PMMA Plastic Optical Fiber

,

0.25mm Plastic Optical Fiber

,

12000m Bare Optical Fiber

Payment & Shipping Terms

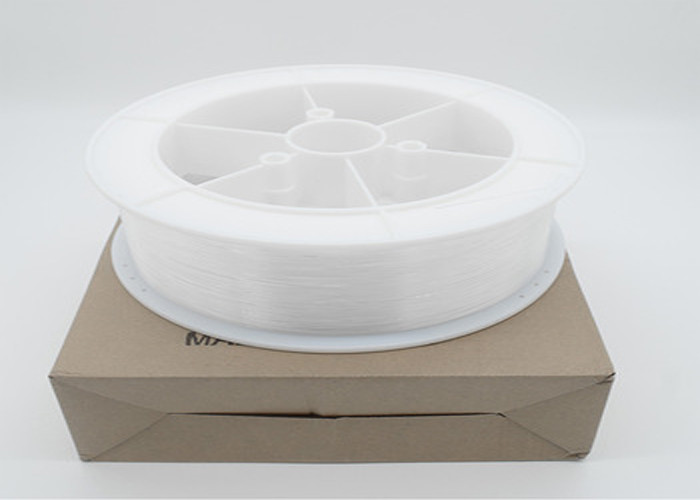

Packaging Details: Standard length: 1.5km/roll Packing:28*20*8cm;N.W.:4KG; Neutral packing or Standard packing
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000KM Per Month
Specifications
Fiber Type: PMMA Bare Plastic Optic Fiber
Fiber Diameter: 0.25 0.5 0.75 1.0 1.5 2.0 2.5 3.0 Mm
Cable Purpose: Fiber Optic Lights
Emitting Color: RGB
Lamp Body Material: Crystal
Packing Size: 28*20*8cm
Light Sources: LED
Key Word: Bare Plastic Optic Fiber
Surface: Smooth
Cladding Material: Fuoinated Polymer
Product Description

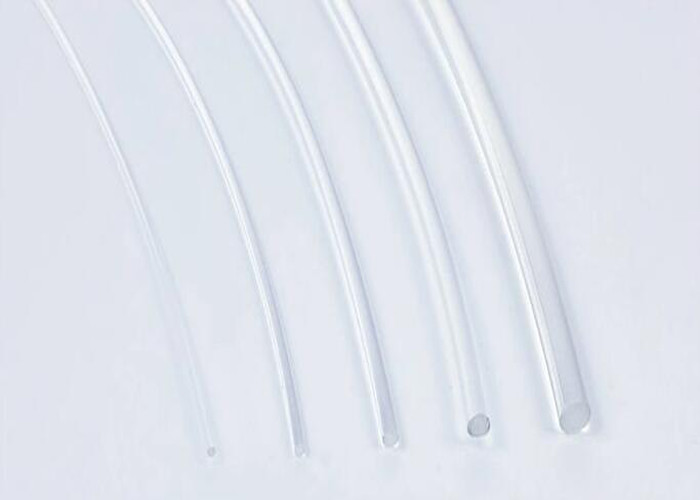

PMMA 0.25 0.5 0.75 1.0 1.5 2.0 2.5 3.0 mm bare plastic optic fiber for led lighting decoration and data communication







Plastic Optical Fiber (POF) is a unique member of the optical fiber family. POF is made of Poly Methyl Methacrylate (PMMA),



with a large core diameter (~1 mm) and high numerical aperture (NA 0.3 – 0.5).





POF is ideally suited for deployment either by a professional installer or a do-it-yourself installer using basic tools,



such as a pair of scissors or a cutter, and inexpensive plastic connectors.





Features



Light in weight, excellent flexibility, vibration resistance Energy saving and safe , high bandwidth Anti-electromagnetic interference,



stable and reliable signal transmission Comply with YD/T 1447-2006 and YD/T 1258.6-2006, the national communications industry standard.



Applications



Sensor signal transmission

Industrial control signal transmission

Audio signal transmission

Special LAN or access network

Auto multimedia signals or control signal transmission

Military equipment





Specifications



fiber grade product code outer dia.(mm) jacketing materials attenuation(dB/km) N.A. operation temp.(°c)

C grade

with a jacketing

CC0500-1 1.0±0.07 black PE ≤210 0.5 -55–85
CC0750-1 2.2±0.07 black PE ≤200 0.5 -55–85
CC1000-1 2.2±0.07 black PE ≤200 0.5 -55–85
CC1500-1 3.0±0.07 black PE ≤200 0.5 -55–85
CC2000-1 3.8±0.07 black PE ≤200 0.5 -55–85
CC3000-1 5.0±0.07 black PE ≤200 0.5 -55–85
CC1000-2 2.2×4.4±0.10 black PE ≤200 0.5 -55–85
C grade with double jacketing CC1000-4 4.0±0.1 black PE/PVC ≤200 0.5 -55–85
CC1000-5 5.0±0.1 black PE/PVC ≤200 0.5 -55–85
CC1000-6 6.0±0.15 black PE/PVC ≤200 0.5 -55–85
CC1000-7 7.0±0.15 black PE/PVC ≤200 0.5 -55–85
CC1000-8 8.0±0.15 black PE/PVC ≤200 0.5 -55–85





Plastic Light Optical Fiber for Lighting and Decoation



Item Product
Code
Outer Dia.
(mm)
Jacketing
Materials
Attenuation
(dB/km)
N.A. Spool
Length(m)

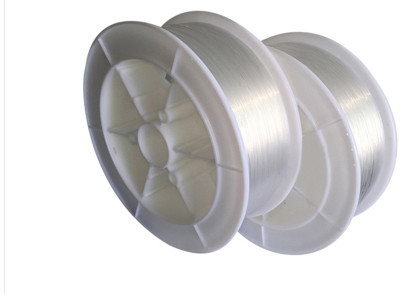

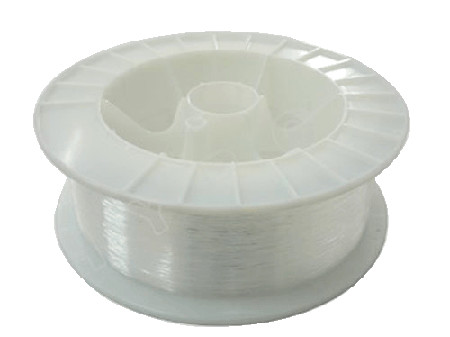

POF for illumination HCW0250-1 POFφ0.25mm 0.25 0.5 ≤350 12000
HCW0500-1 POFφ0.5mm 0.5 0.5 ≤200 6000
HCW0750-1 POFφ0.75mm 0.75 0.5 ≤200 2700
HCW1000-1 POFφ1.0mm 1.0 0.5 ≤200 1500
HCW1200-1 POFφ1.2mm 1.2 0.5 ≤200 1000
HCW1500-1 POFφ1.5mm 1.5 0.5 ≤200 700
HCW2000-1 POFφ2.0mm 2.0 0.5 ≤200 350
HCW2500-1 POFφ2.5mm 2.5 0.5 ≤200 200
HCW3000-1 POFφ3.0mm 3.0 0.5 ≤200 150



Technical Parameters





Parameters Unit Numerical value
Fiber material --- PMMA/Fluororesin
Attenuation dB/m ≤0.25
NA --- 0.5
Wavelength nm 650
Incident angle --- ≤60°
Bandwidth MHz· 100m ≥10
Bend radius --- ≥10 times of fiber diameter
Operating temperature -20~70
Storage temperature -20~70
Refractive index --- Step index



It is easy to appreciate the huge core diameter (20x) as well as the relativelly thin clad of POF compared to MM-GOF.



Advantages of POF



Thanks to its huge core diameter, POF is immune to misalignments and strong vibrations, and can be installed in rugged industrial and automotive environments without any loss of communication capacity.



POF and its connectors and optoelectronics are low cost consumer parts that enable installers to save on cable costs and installation, as well as testing and maintenance time.



Widely used in over 20 million cars for infotainment networks, POF is part of the automotive standard, Media Oriented Systems Transport for high-speed data transmission in car networks.



Plastic Optic Fiber Cable for Communication



Communication plastic optical fiber application



- Application in FTTH (fiber to home)



Fit in to glass optical fiber networking, taking good effect in the terminal of broadband networking. Plastic optical fiber can resolve optimum solution of “the last hundred meters”.



- Application in consumer electronics



The patch cords of plastic optical fiber are used in transmission for digital audio, wideband transmission with high speed, high fidelity, low attenuation, and the POF cable could reduce the electromagnetic interference to zero



- Application in automobile intelligence



POF is used for navigator instrument, automobile communication, delight video system, and television, DVD player, audio, lamps, switching connecting line.



- Application in industry control and monitor system



Plastic optical fiber can be used in line control of power station in strong magnetic field, connecting different equipments, being the communication linkage of sensors. The movement of target detection, networking forward and monitor vision information.



- Application in military communication



Plastic optical fiber cable have been widely used in transition network of action zone, military chain of command, the mount device of chariot, fighting plane, warship, and can not be replaced in the future electric combat.



The characteristic of plastic optical fiber for data transmission



- Low cost for maintenance, saving cooper resource, energy-saving and environment protection.

- Immune to electromagnetic wave radiation, no noise effect, good capacity of resisting disturbance.

- Low weight, flexible, high resist flutter and determinate cleavage, durability.

- High bandwidth, high speed, good performance.

- High privacy protection, reliable safety.

- Optimum bandwidth, high speed, good performance.

- Close coupling, high illumination, stabile attenuation.

- Easy installation, needlessness for special tools and fusion welding, and cut at will by your request.

- Waterproof, Dampproof, Antimagnetic, free of magnetic and thunders.



The luminous fiber optics textiles are high-tech intelligent products,



made by fiber optics fabric that based on an innovative and original patented technology



which covered textiles, optics and electronics.



The technology allows to weave plastic optical fibers alongside synthetic fibers, forming a luminous fabric.
