400um Core Bare Optical Fiber With Hard Plastic Cladding
20 M
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: HCW400/430
High Light:

400um Core Bare Optical Fiber

,

IEC 60794-2 Bare Optical Fiber

,

430um bare fiber optic cable

Payment & Shipping Terms
Packaging Details: Standard length: 2km/roll (as per your requirements)
Delivery Time: 2 weeks for Customized bare fibers
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000KM Per Month
Specifications
Model Name: HCW400/430
Protection: With Hard Plastic Cladding
Wavelength: 400 - 1200 Nm
Core Diameter: 400 Um Core/430um Fiber
Leadtime: 2 Weeks For Bare Fibers
Coating Protection: Chemical Removal Is Easily Available
Cladding Materials: With Hard Plastic Cladding
Main Application: For Testing Of Different Experiments In Lab.
Product Description

400 um Core/430um Fiber with hard plastic cladding ( Easy chemical removal)

Fiberglass, or “glass fiber,” itself has a familiar base structure and a wide variety of uses.

Fiberglass really is made of glass similar to that in windows or kitchen drinking glasses. To manufacture fiberglass, glass is heated until molten,

then forced through superfine holes. This creates glass filaments that are extremely thin—so thin, in fact, that they're best measured in microns.

The glass would have to have a clear core surrounded by a skin—called cladding,

and also made of glass—so that the cladding could reflect laser light back into the core and keep it traveling along its path.



These flexible filament threads can be used in several applications:

They can be woven into larger swatches of material or left in a somewhat less structured form used for the more familiar puffy texture used for insulation or soundproofing. The final application is dependent on the length of the extruded strands (longer or shorter) and the quality of the fiberglass.

For some applications, it's important that the glass fibers have fewer impurities, however, this involves additional steps in the manufacturing process.

The purity of the glass is maintained by using corrosion-resistant plastic in the gas delivery system (valve blocks, pipes, seals) and by precisely controlling the flow and composition of the mixture.

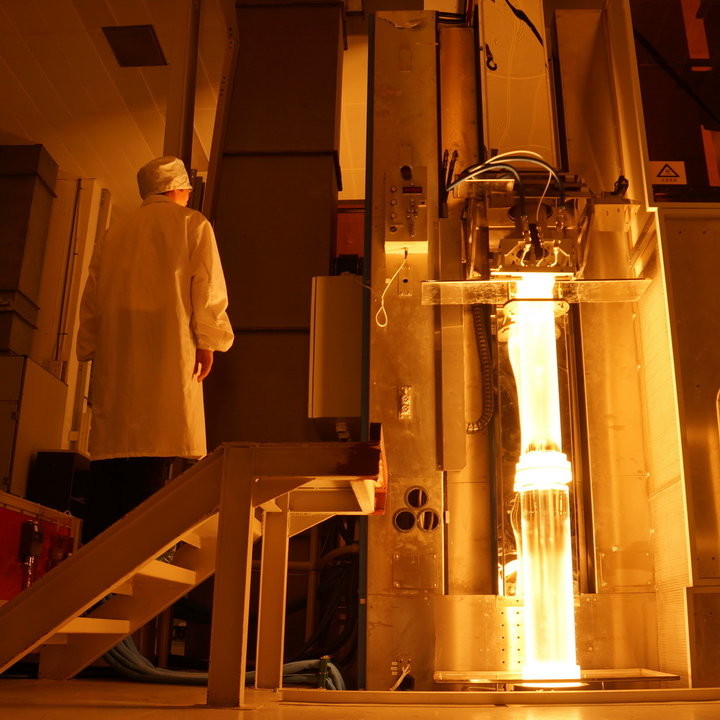

The process of making the preform blank is highly automated and takes several hours. After the preform blank cools, it is tested for quality control (index of refraction).


Specification :



Item Wavelength
Range
Hydroxyl
Content
Core
Diameter
Cladding
Diameter
Coating
Diameter
Core /
Cladding
Coating Proof Test Stripping
Tool
HCW050UGA 250 - 1200 nm High-OH 50 μm ± 2% 125 ± 1 μm 250 μm ± 4% Pure Silica /
Fluorine-Doped Silica
Acrylate ≥100 kpsi T08S13
HCW050LGA 400 - 2400 nm Low-OH
HCW105UCA 250 - 1200 nm High-OH 105 μm ± 2% 125 ± 1 μm 250 μm ± 4% T08S13
HCW105LCA 400 - 2400 nm Low-OH
HCW200UEA 250 - 1200 nm High-OH 200 μm ± 2% 220 ± 2 μm 320 μm ± 5% T10S13
HCW200LEA 400 - 2400 nm Low-OH


400um Core Bare Optical Fiber With Hard Plastic Cladding 0                 400um Core Bare Optical Fiber With Hard Plastic Cladding 1
400um Core Bare Optical Fiber With Hard Plastic Cladding 2
