30um 50um 70um 0.56NA 0.64NA Fiber Optic Cable Bundle

30um 50um 70um 0.56NA 0.64NA Fiber Optic Cable Bundle
Features Gallery Product Description Request A Quote
Core Diameter: Ø30um Ø50um Ø70um
Random Bundle Construction: Mapped
Scrambled Bundle Construction: Special Coherent Bundles Available
Single Bundle Configuration: Trifurcated
Bifurcated Bundle Configuration: Multi-Legged
Bundle Active Area Geometry: Round/Line / Half Round/Ring / Square/Segmented Ring / Rectangle
Medical Application: Medical Diagnostics Laser Delivery Photodynamic Therapy Medical Treatments Such As UV Psoriasis Treatment
Transmittance Range: 400 To 1300 Nm
Keyword: Bare Optical Bundles Fiber
High Light:

0.64NA Fiber Optic Cable Bundle


0.56NA Fiber Optic Cable Bundle


70um optical fiber bundle

Basic Infomation
Place of Origin: China
Certification: IEC 60794-2-10/11
Model Number: Bare Optical Fiber Bundles Fiber (Ø30um Ø50um Ø70um
Payment & Shipping Terms
Packaging Details: Standard length: 50M/roll (as per your requirements)
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000KM Per Month
Product Description

Customized 30um 50um 70um Optical Fiber Bundle Length 0.56 NA/0.64NA Bundles Fiber



OPTICAL FIBER Optical Fiber is made up of two materials; a high-refractive-index core, and a low-refractive-index cladding.

Light that is injected into one end of an optical fiber can travel through it with little attenuation (signal loss).

However, the amount of signal loss depends on the color of the light, the design of the optical fiber, the materials used,

and the manufacturing configuration and process controls.


Hicorpwell ensures the highest quality and best transmission for fiber optic bundles, while working within the boundaries of your application.


In order to optimize your bundle, we take several parameters into consideration: packing efficiency, fiber area efficiency, Numerical Aperture


optimization, fiber transmission, reflections, and an error factor (which includes numerical aperture discrepancies).


Our high quality fiber optic bundles can be made with any fiber and your choice of several configuration and construction possibilities.


In addition, a number of connectors, including all standard connectors—or custom ferrules, machined in-house—are available.

In addition,  UVNS (UV Non-Solarizing) fibers can be fused at the ends to eliminate inter-fiber spaces—while maintaining the fibers’ NA


and increasing transmission by 50%.


Please see our following Bundle data sheet for more information about our non-solarizing bundles for UV applications.


We are open for providing the fiber bundles with different fiber type, bundle diameter, length, connectors

and jackets. Lens collimating or coupling is available.

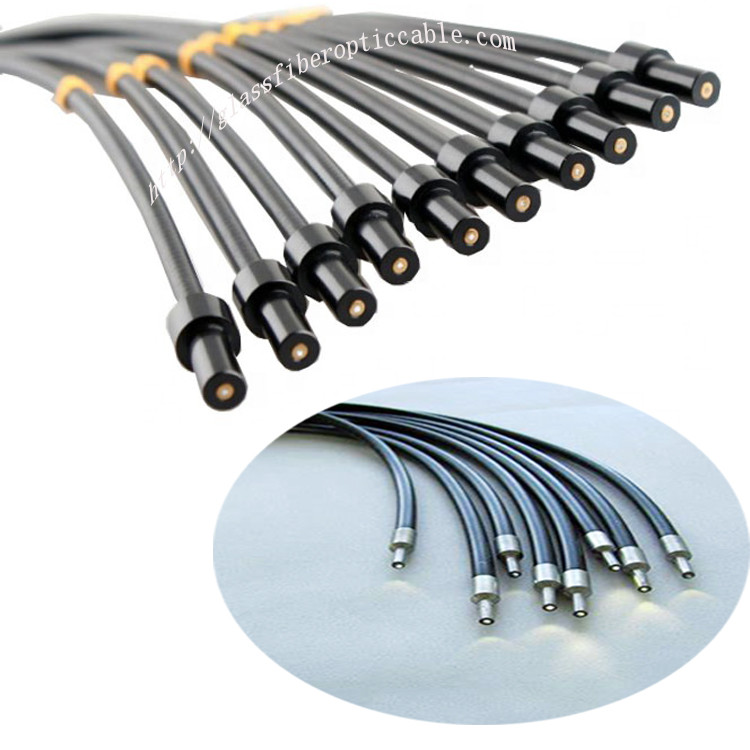

30um 50um 70um 0.56NA 0.64NA Fiber Optic Cable Bundle 0


All bundles and assemblies are custom designed to meet your specifications. All standard connectors (SMA 905, SMA 906, ST, FC)


are available—or custom ferrules, machined in-house to your specifications. Refer to individual fiber data sheets for more information


and to determine the best fiber for your application. NA is measured at the 95% intensity angle.

We strive to ensure the accuracy of all information provided; however, we imply no warranties and


disclaim any liability in connection with the use of this information.



Spectroscopy Photodynamic therapy
Sensors Fluorescence excitation
UV photolithography Analytical instruments
Particle detection Scanning
Laser welding/soldering/marking Colorimetry
Laser delivery Laser diode pigtailing
Raman scattering Chemical analysis
Monitoring Semiconductor capital equipment
Smoke detection Microscope illumination
Pyrometry Streak cameras
Nuclear plasma diagnostics Remote illumination
Thomson scattering Reflective sensors
Quality control and inspection systems

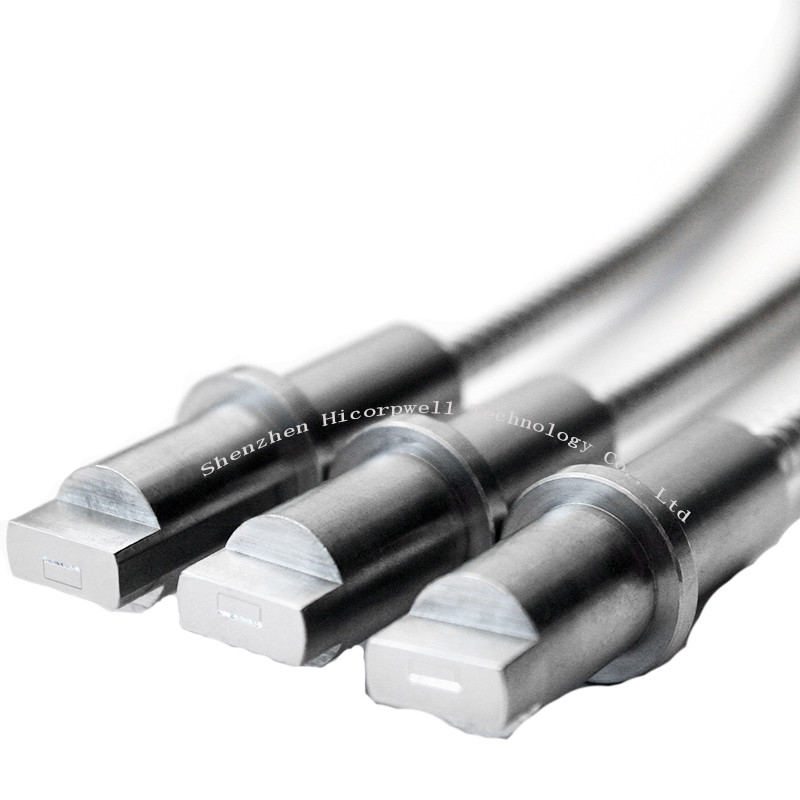

30um 50um 70um 0.56NA 0.64NA Fiber Optic Cable Bundle 1

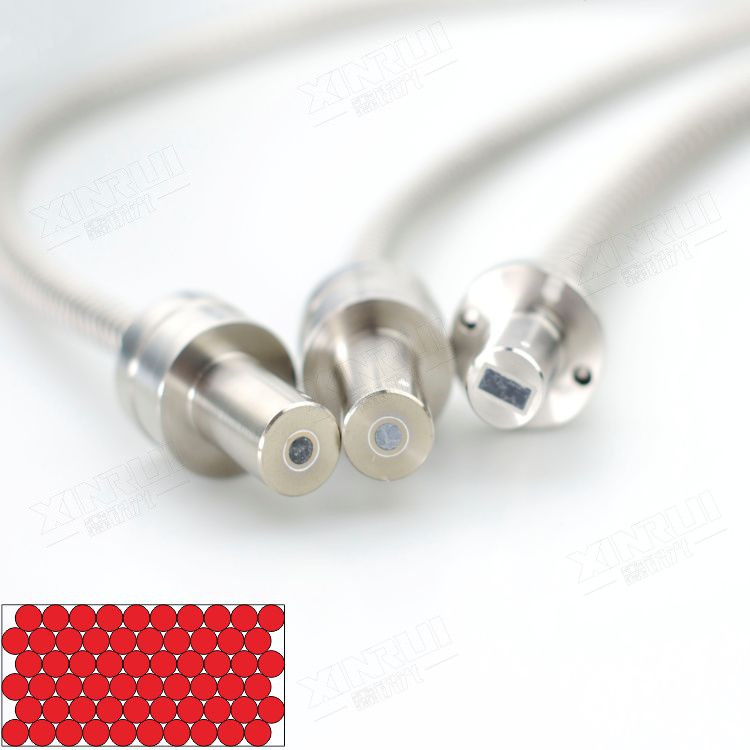

                 30um 50um 70um 0.56NA 0.64NA Fiber Optic Cable Bundle 2
