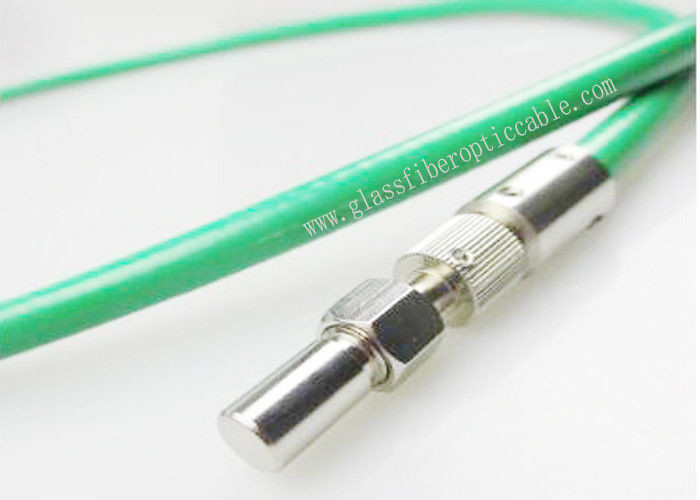

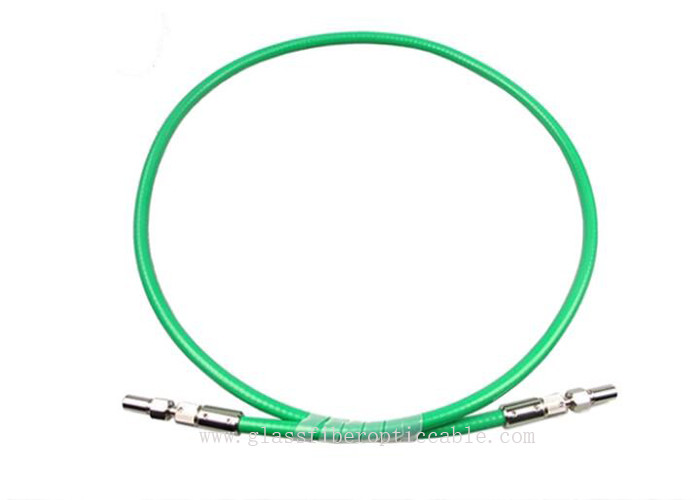

500um Cladding Diameter PTUG SN22 Multimode Fiber Cable
10M
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Optical Fiber
High Light:

SN22 Multimode Fiber Cable

,

PTUG Multimode Fiber Cable

,

500um cladding diameter fiber optic wire

Payment & Shipping Terms
Packaging Details: Standard length: 50M/roll (as per your requirements)
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000KM Per Month
Specifications
Core Diameter: Ø200um
Fiber Type: PTUG
Transmittance Range: 200 Um To 2000 Um
Keyword: Bare Optical Fiber
PTUG: 200um/500um/1300SN22
Temperature: -60 To +105
Product Description

200 um Core Diameter 500 um Cladding Diameter 1300 um Buffer diamete SN22 Optical Fiber





Hicorpwell large core fiber coupler (multimode optic bare fiber),



 is an optical power splitter designed to split light within ultraviolet, visible and infrared wavelengths,



100um, 105um, 200um, 300um, 400um, 600um, 800um, 900um, 1000um, 1500um (micron/μm))



which are based on fused large core diameter optical fiber and features mode-insensitive & wavelength-insensitive



over a broad wavelength range.







The split ratios do NOT fluctuate dramatically with the variation of wavelength and input beam mode.



Hicorpwell products are available for various core/cladding-diameter fiber,



including 100/140, 105/125, 200/220, 200/230, 400/440 (400/430), 600/660 (600/630),



800/830, 800/880, 900/950, 1000/1100, 1500/1650, etc.



We’ve homogenized the light and reduced the effects of higher order modes (by built-in cladding mode stripper).





Notes:

1. The optical performances of the multimode fiber (without connectors) are measured with an overfilled-launch light source.

2. This multimode fiber optic splitter is customizable and above specifications are subject to change without notice.

3. Hicorpwell large core fiber (multimode fiber ) is mode-insensitive and wavelength-insensitive over a broad wavelength range.

Also, it can be designed to have an optimum performance for specific wavelength range according to your applications.

So please tell us the accurate operating wavelength range if possible.

4. Please specify the operating power if the large core fiber was operated on a high-power continuous-wave (CW) laser,

it may need a heat sink design for the package.

5. For product customization or special requirement, please contact our sales representative (info@hicorpwell.com).



500um Cladding Diameter PTUG SN22 Multimode Fiber Cable 0



        500um Cladding Diameter PTUG SN22 Multimode Fiber Cable 1
