800um Core Diameter PTDG SN25 Bare Optical Fiber
10M
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: PTDG Optical Fiber
High Light:

SN25 Bare Optical Fiber

,

PTDG Bare Optical Fiber

,

800um core diameter fiber optic wire

Payment & Shipping Terms
Packaging Details: Standard length: 50M/roll (as per your requirements)
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000KM Per Month
Specifications
Core Diameter: Ø800um
Fiber Type: PTDG
Transmittance Range: 200 Um To 2000 Um
Keyword: Bare Optical Fiber
Temperature: -60 To +105
PTDG: 800um/1000um/2000 SN25
Product Description

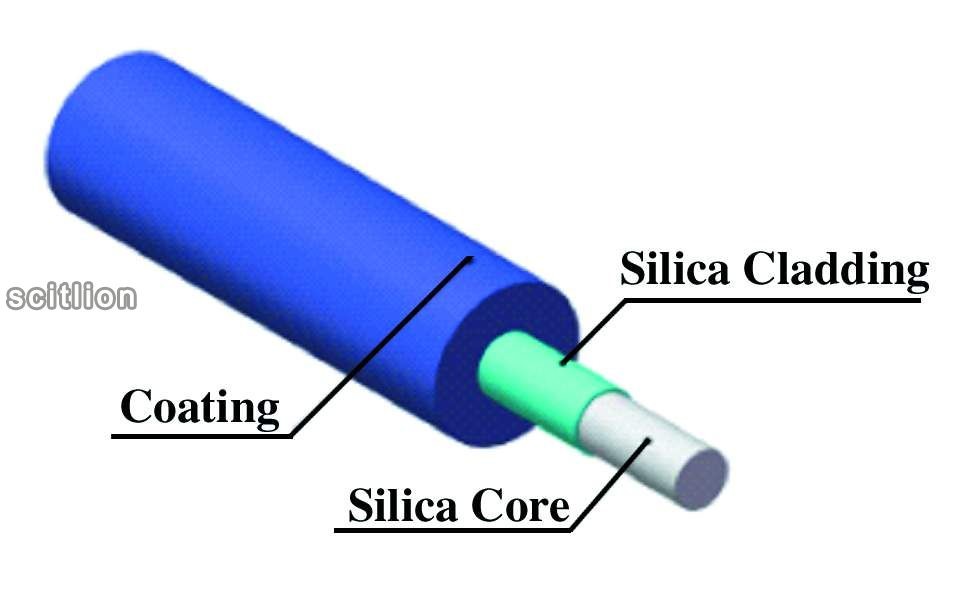

PTDG 800 um Core Diameter 1000 um Cladding Diameter 2000 um Buffer diameter SN25 Optical Fiber





Hicorpwell large core fiber coupler (multimode optic bare fiber):



100um, 105um, 200um, 300um, 400um, 600um, 800um, 900um, 1000um, 1500um (micron/μm))



is an optical power splitter designed to split light within ultraviolet, visible and infrared wavelengths,



typically from 190 to 2500 nm. It bases on fused large core diameter optical fiber



and features mode-insensitive & wavelength-insensitive over a broad wavelength range.





We’ve homogenized the light and reduced the effects of higher order modes (by built-in cladding mode stripper).



The split ratios do NOT fluctuate dramatically with the variation of wavelength and input beam mode.



The coupler (splitter) is available for various core/cladding-diameter fiber,



including 100/140, 105/125, 200/220, 200/230, 400/440 (400/430), 600/660 (600/630),



800/830, 800/880, 900/950, 1000/1100, 1500/1650, etc.



800um Core Diameter PTDG SN25 Bare Optical Fiber 0

Notes:

1. The optical performances of the multimode fiber (without connectors) are measured with an overfilled-launch light source.

2.  Hicorpwell large core fiber  (multimode fiber ) is mode-insensitive and wavelength-insensitive over a broad wavelength range.

     Also, it can be designed to have an optimum performance for specific wavelength range according to your applications.

    So please tell us the accurate operating wavelength range if possible.

3. Please specify the operating power if the large core fiber was operated on a high-power continuous-wave (CW) laser,

    it may need a heat sink design for the package.

4. This multimode fiber optic splitter is customizable and above specifications are subject to change without notice.

9. For product customization or special requirement, please contact our sales representative (info@hicorpwell.com).

        800um Core Diameter PTDG SN25 Bare Optical Fiber 1
