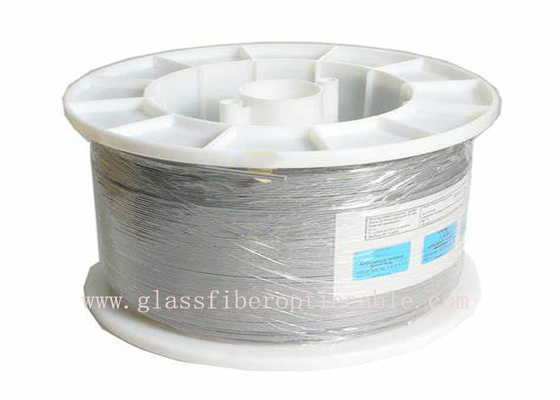

POF 100m Length 10.0mm Diameter Polymer Bare Optical Fiber

100M per reel
POF 100m Length 10.0mm Diameter Polymer Bare Optical Fiber
Features Gallery Product Description Request A Quote
Fiber Type: Side Glow Lighting Plastic Optical Fiber (POF)
Paintcoat Color: Aqua,yellow ,blue Or Others
Cable Purpose: Fiber Optic Lights
Emitting Color: RGB
Lamp Body Material: Crystal
Packing Size: 28*20*8cm
Certificate: IEC 60794-2-10/11
Light Sources: LED
Diameter Specification: 1.0mm--20.00mm
POF Jacket: MMA
High Light:

Polymer Bare Optical Fiber


10.0mm Bare Optical Fiber


100m bare fiber optic cable

Basic Infomation
Place of Origin: China
Certification: IEC 60794-2-10/11
Model Number: Side Glow Lighting Plastic Bare Optical Fiber
Payment & Shipping Terms
Packaging Details: Standard length: 100m/roll Packing:28*20*8cm;N.W.:4KG; Neutral packing or Standard packing
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000KM Per Month
Product Description

Step Index Solid Side Glow POF 100m length 10.0mm Diameter Polymer Bare Optical Fiber


Plastic Optical Fiber (POF) is a unique member of the optical fiber family. Thanks to its huge core diameter,


POF is immune to misalignments and strong vibrations, and can be installed in rugged industrial and


automotive environments without any loss of communication capacity. POF is ideally suited for deployment either by a professional installer


or a do-it-yourself installer using basic tools, such as a pair of scissors or a cutter, and inexpensive plastic connectors.



The following figure shows a comparison of a typical POF geometry compared to another well known optical fiber,


the Multi Mode Glass Optical Fiber (MM-GOF).


It is easy to appreciate the huge core diameter (20x) as well as the relativelly thin clad of POF compared to MM-GOF.


As the picture showed, it's side glow fibers. The main material is MMA which is also made by ourselves.


1.Material: MMA or PMMA.

2. Diameters: 1.0mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm, 10.0mm, 12mm, 14mm.

3. Brightness: Superbright, general bright.

4. Application: swimming pool, desk edge, mouse mat, stairs decoration and so on.


Advantages of POF,

An optical transmission media, POF is completely immune to electrical noise. For example, existing copper wire installations will not interfere with data passing through POF lines, so POF can be installed anywhere next to electrical cabling.


POF and its connectors and optoelectronics are low cost consumer parts that enable installers to save on cable costs and installation, as well as testing and maintenance time.


Widely used in over 20 million cars for infotainment networks, POF is part of the automotive standard, Media Oriented Systems Transport for high-speed data transmission in car networks.



a)Application in decoration,


Plastic optical fiber enjoys various colors, flexible transmission, it is widely used in fiber lamps and lanterns,

plastic decoration projects which takes the colorful and translunary vision effects.


b) Application in illumination


Plastic optical fiber is applied in illumination which has the advantages of high brightness effects, low

attenuation, low heating. Long span, antiUV performance, safety and reliability, separating electricity from

lights. It is widely used in the protection of historic relics, jewelry and dangerous area lighting, such as miner road.


c) Application in screen fiber display


Plastic optical fiber has the advantages of low lights attenuation, high brightness, full chromaticity, vivid

vision, especially that low consumption, easy recycle, long span, and suitable for various indoor and outdoor surrounding.


Product Description

Side Glow Fiber Basic Parameter:

Diameter specification : 1.0mm--20.00mm
Length : 100m/spool
Allowable bending radius:8 times diameter
Allowable temperature range : -40~+85°C
Light attenuation:<350db/km
Wavelength range: 390-760nm
Numerical aperture: 0.6
Clad refractive index:1.402
Temperature in storage: +20~+50°C


Details About The Product Code and Information :


Product code Inner dia.(mm) Outer dia.(mm) Jacket Emitting Method MOQ(M)
sof-5 5 5 no jacket side glow 100
sof-6 6 6 no jacket side glow 100
sof-8 8 8 no jacket side glow 100
sof-10 10 10 no jacket side glow 100
sof-12 12 12 no jacket side glow 100
sof-14 14 14 no jacket side glow 100
Psof-5 5 7 transparent PVC side glow 100
Psof-6 6 8.8 transparent PVC side glow 100
Psof-8 8 11 transparent PVC side glow 100
Psof-10 10 13 transparent PVC side glow 100



Light Source :


Model NO product size weight specification remark
HCW-S16W L165*W88* H40mm NW:0.6kg 16W led light, coupling head dia:20mm for 0.75mm 550pcs for1.0mm 300pcs RGB changeable colour with remote control temprature:-10~40°C voltage: 110V-265V 50HZ-60HZ single head Remote control is for your option.8usd Price reduction without remote control
HCW-D32W L170*W93* H49mm NW:0.8kg 16W*2 led light coupling head dia:20mm*2 for 0.75mm 1100pcs for1.0mm 600pcs RGB changeable colour with remote control temprature:-10~40°C voltage: 110V-265V 50HZ-60HZ double heads Remote control is for your option.Price reduction without remote control
HCW-S45W 300*200*80mm 4kg 45W led light, coupling head dia:30mm for 0.75mm 1200pcs for1.0mm 750pcs RGB changeable colour with remote control temprature:-10--40°C voltage: 110V-265V 50HZ-60HZ single head Remote control available,No manual manipulation itse

Hicorpwell POF.pdf
