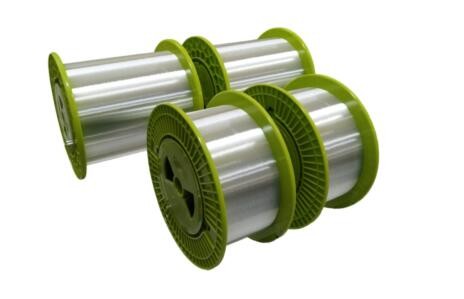

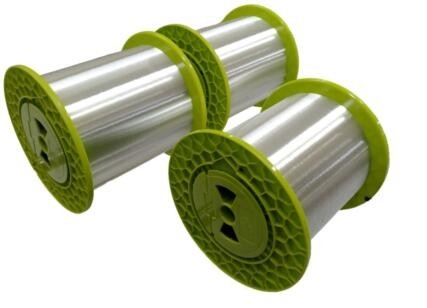

10KM G.657.A2 200µm Aqua Glass Bare Fiber Cable Reel
100KM
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: G.657.A2 200µm
High Light:

Bare Fiber Cable Reel

,

Aqua Glass Fiber Cable Reel

,

G.657.A2 200µm Bare Optical Fiber

Payment & Shipping Terms
Packaging Details: 25km/Reel, then pack in a carton box for 6 reels fibers
Payment Terms: Western Union, L/C, T/T
Supply Ability: 30000KM Per Week
Specifications
Fiber Type: G.657.A2 200µm
Cladding Diameter: 125.0 ± 0.5um
Coating Diameter: 190 ± 5um
Coating/Cladding Concentricity Error: ≤ 12um
Mode Field Diameter(MFD): 1310 Nm-1550 Nm
Coating Strip Force: 1.3-8.9N
Zero Dispersion Wavelength: 1300-1324nm
Macro Bending Sensitivity: 1 Turns Of 10 Mm Radius, 1625 Nm
Mode Field Diameter(MFD) 1310nm: 8.7 ± 0.4 Um
Mode Field Diameter(MFD) 1550nm: 9.9 ± 0.5 Um
Product Description

10KM /20M /30KM/40KM/50KM HICORPWELL G.657.A2 200µm Aqua Glass Fiber Optic Bare Fiber Cable Reel



Based on the optimum coated layer design,  HICORPWELL G.657.A2 200µm  optical fibre keeps the cladding

diameter unchanged but with coated diameter dramatical reduction. This product still retains the same

and outstanding properties as ITU-T G.657.A2 and IEC 60793-2-50 type B6.a2 fibre with traditional coated

diameter 245μm.



And with zero water peak, low attenuation and excellent uniformity, low chromatic dispersion

and PMD, excellent macrobending loss at minimum radius 7.5mm, superior and stable geometrical size control

level, this full spectrum fibre is applicable to transmission system operating over the entire wavelength from

1260nm to 1625nm.



HICORPWELL G.657.A2 200µm  optical fibre supports higher density and smaller diameter cables which can



improve duct utilization and save resource, widely used in the applications of FTTH, high count fibre cable,



microcables. etc.



we have all type of glass fibre optic you need.





Specifications & Performances





( HICORPWELL G.657.A2 200µm)
Characteristics Conditions Parameters Unit
Optical properties
Attenuation Coefficient 1310 nm ≤ 0.34 dB/km
1285-1330 nm ≤ 0.37 dB/km
1383 nm(after hydrogen aging) ≤ 0.31 dB/km
1490 nm ≤ 0.23 dB/km
1550 nm ≤ 0.20 dB/km
1525 - 1575 nm ≤ 0.21 dB/km
1625 nm ≤ 0.22 dB/km
Mode Field Diameter(MFD) 1310 nm 8.7 ± 0.4 µm
1550 nm 9.9 ± 0.5 µm
Cut-Off Wavelength
Cable Cut-Off   ≤ 1260 nm
Chromatic Dispersion
Zero Dispersion Wavelength   1300 - 1324 nm
Zero Dispersion Slope   ≤ 0.090 ps/nm2/km
Dispersion Coefficient 1285 - 1339 nm ≤ |3.4| ps/nm/km
1550 nm ≤ 18.0 ps/nm/km
1625 nm ≤ 22.0 ps/nm/km
Polarisation Mode Dispersion
PMD Coefficient Uncabled fibre ≤ 0.10 ps/√km
PMD link design value ≤ 0.06 ps/√km
Point Discontinuity 1310 nm ≤ 0.05 dB
1550 nm ≤ 0.05 dB
Effective Group Refractive Index 1310 nm 1.4676
1550 nm 1.4683
1625 nm 1.4685
Geometrical Properties
Core Non-circularity   ≤ 6 %
Cladding Diameter   125.0 ± 0.5 µm
Core/Cladding Concentricity Error   ≤ 0.5 µm
Cladding Non-Circularity   ≤ 0.7 %
Coating Diameter   190 ± 5 µm
Coating/Cladding Concentricity Error   ≤ 8 µm
Mechanical properties
Proof Test Fibre strain ≥ 1 %
Fibre load ≥ 9 N
Stress ≥ 100 kpsi
Dynamic Stress Corrosion Susceptibility Factor nd Unaged ≥ 20
Aged(30 days @ 85℃, 85% R.H.) ≥ 20
Macro Bending Sensitivity 10 turns of 15 mm radius, 1550nm ≤ 0.03 dB
10 turns of 15 mm radius, 1625 nm ≤ 0.1 dB
1 turns of 10 mm radius, 1550 nm ≤ 0.1 dB
1 turns of 10 mm radius, 1625 nm ≤ 0.2 dB
1 turns of 7.5 mm radius, 1550 nm ≤ 0.5 dB
1 turns of 7.5 mm radius, 1625 nm ≤ 1.0 dB
Coating Strip Force Peak value 1.3 - 8.9 N
Fibre Curl   ≥ 4 m
Environmental Properties
Accelerated Ageing(30days @ 85℃ 85% R.H.) Induced attenuation(1310 and 1550 nm) ≤ 0.05 dB/km
Dry heat aging(30days @ 85℃) Induced attenuation(1310 and 1550 nm) ≤ 0.05 dB/km
Temperature Cycling (-60℃- +85℃) Induced attenuation(1310 and 1550 nm) ≤ 0.05 dB/km
Water Soak(30 days @ 23℃) Induced attenuation(1310 and 1550 nm) ≤ 0.05 dB/km
