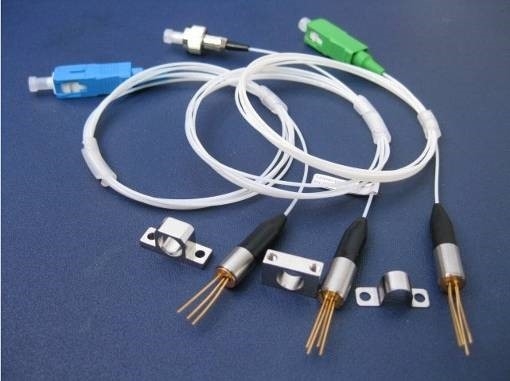

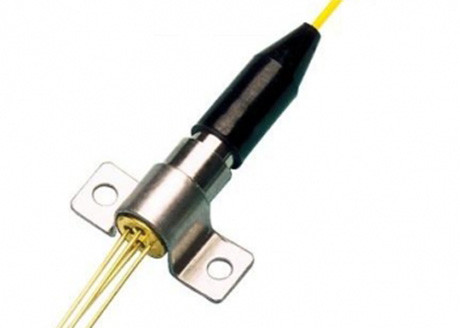

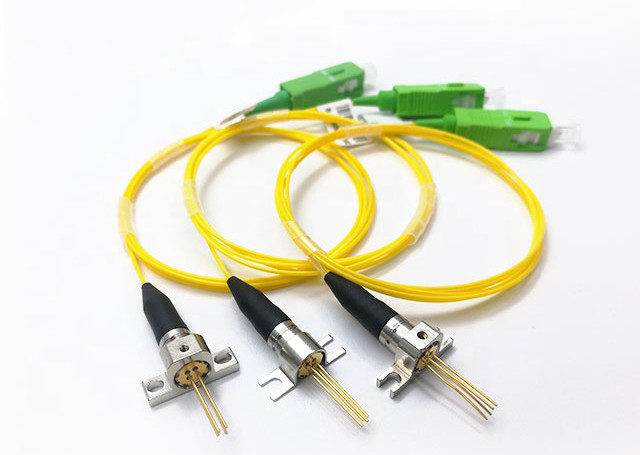

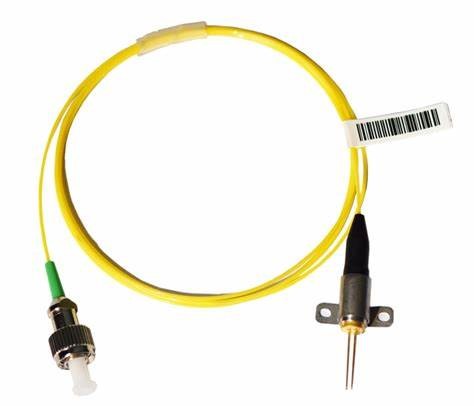

1550nm DFB Pigtailed Components 1550-5-S
Features
Applications
CATV Reverse Transmission
Other Analog or Digital Optical Transmission
Absolute Maximum Ratings
Parameter | Symbol | Min. | Max. | Unit | Test Condition |
Storage Temperature | Tstg | -40 | 100 | ℃ | - |
Operating Temperature | Top | -40 | 85 | ℃ | - |
Forward Current(LD) | If(LD) | 150 | mA | ||
Reverse Voltage(LD) | Vr(PD) | 2 | V | ||
Forward Current(PD) | If(LD) | 2 | mA | ||
Reverse Voltage(PD) | Vr(PD) | 15 | V | ||
Soldering Temp | - | - | 260 | ℃ | - |
Soldering Time | - | - | 10 | S | S |
Optical & Electrical Characteristics
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
Rated Power | Po | 6 | 8 | mW | Ith+40mA | |
Threshold Current | Ith | 5 | 10 | mA | CW | |
Operating Operating | If | 45 | 55 | mA | CW,P=Po | |
Forward Voltage Drop | Vop | - | 1.1 | 1.5 | V | CW, Ith+40mA |
Cent Wavelength | λc | 1540 | 1550 | 1560 | nm | -3dB |
Spectrum Width | Δλ | - | 0.2 | nm | -20dB | |
Side-mode Suppression Ratio | SMSR | 35 | - | dB | - | |
Bandwidth(3dB) | Bw | - | 2.5 | GHz | - | |
Monitor Current | Im | 0.1 | 0.9 | mA | CW, Ith+40mA | |
Dark Current of Monitor | Id | - | - | 0.1 | uA | 5V |
Relative Intensity Noise | RIN | - | -155 | -150 | dB/Hz | CW, 25℃ |
RF Bandpass Flatness | BF | ±1.0 | dB | If=Iop,45MHz-2500MHz,T=25 °C | ||
Third-order Distortion | IMD3 | - | -55 | - | dBc | 2 tone test, |
Optical Isolation | ISO | 30 | 40 | - | dB | 25℃ |
