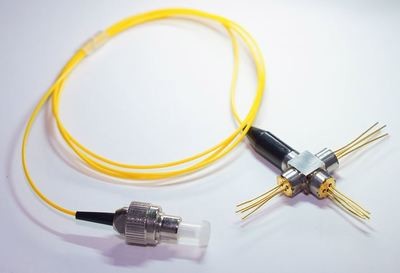

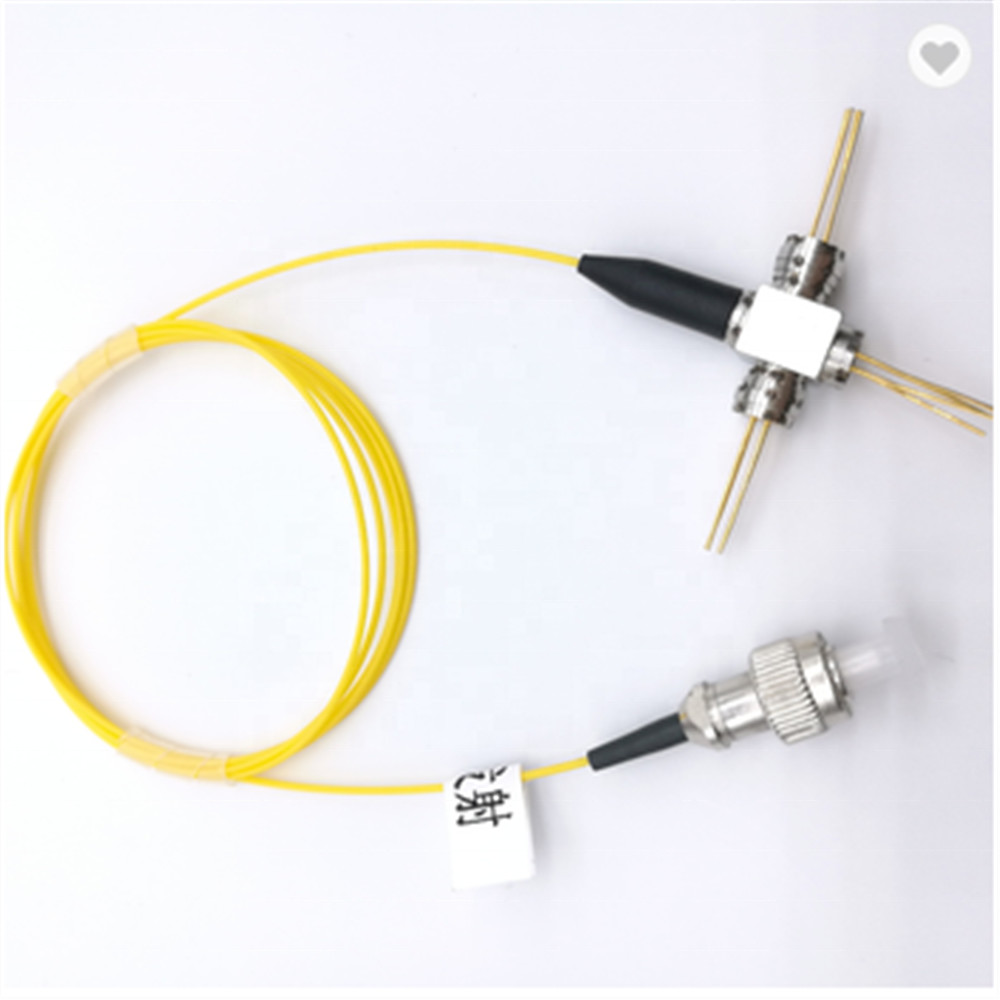

Digtail 10g GPON Bosa 1310nm Dfb Laser Diode Module
High Responsivity
Small dark current
High reliability
Applications
FTTH,SDH,SONET
Optical&Electrical Characteristics
| Parameters | Symbol | Min | Typ | Max | Unit | Test conditions |
| Power Supply | Vcc | 3.0 | 3.3 | 3.6 | V | |
| Supply Current | Icc | 44 | 60 | mA | no loads | |
| Differential Responsivity | Rd | 1.4 | 3.0 | mW/uW |
Rload=100ohm P=-18dBm,λ=1310nm |
|
| Single Ended Responsivity | Rs | 0.7 | 1.5 | mV/uW |
Rload=50ohm P=-18dBm,λ1310nm |
|
| Small-Signal Bnadwidth | BW | 1.65 | GHz | |||
| Low-Frequency Cut off | LF | 5 | kHz | |||
| Rise/Fall Time(20%~80%) | tr/tf | 150 | 200 | ps | P=-18dBm,λ1310nm | |
| Saturation Power | Psat | -3 | dBm | λ=1310nm | ||
|
Single Ended Output Impedance
|
Ro | 40 | 50 | 60 | ohm | |
| Wavelength | λ | 1270 | 1620 | nm | ||
| Sensitivity | -22 | dBm |
λ=1310nm,@2.5Gbps, PRVS7,ER=10dB,BER=1E-10 |
