SDI 150M 100M Hdmi Active Optical Cable With Reel Drum

SDI 150M 100M Hdmi Active Optical Cable With Reel Drum
Features Gallery Product Description Request A Quote
Cable Type: SDI CABLE On Drum
Application: Telecommunication Cable
Insulation: Physical Foaming PE
Color: Red Orange Blue Green Black Purple
Capacity For 8.0MM: 100M
Other Name: Hd-sdi Coaxail Cable
Shield: Double Tinned Copper Braid
Jacket: PVC.UL
Length: 30m 50m 100m 150M
Certificates: CE/ROHS/ISO9001/CCC/UL
High Light:

100M hdmi active optical cable


CE PVC Jacket Coaxial Cable


SDI Extension hdmi optical cable

Basic Infomation
Place of Origin: China
Certification: IEC 60794-2-10/11
Model Number: Coaxial Cable 3G SDI Extension Cord 150M 100M Length
Payment & Shipping Terms
Packaging Details: Carton Size :275*255*420 Vol Weight : 6.2KG per drum for Coaxial Cable 3G SDI Extension Cord 150M 100M Length
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500 pcs per Week
Product Description

RF 75-5 Coaxial Cable 3G SDI Extension Cord 150M 100M Length With Reel & Drum

200M 150M 100MRF Coaxial Cable 75-5 3G SD SDI Extension Cable

A cable reel is a round, drum-shaped object such as a spool used to carry various types of cables.
Cable reel which can also be termed as drums have been used for many years to transport electric cables, fiber optic cables and wire products.

An extension cord, power extender, drop cord, or extension lead is a length of flexible electrical power cable with a plug on one end and one or more sockets on the other end.


The term usually refers to mains extensions but is also used to refer to extensions for other types of cabling.


Portable field deployable tactical fber optic cable reel has been optimised for using in harsh environments where mobility and rapid deployment of the cable are very essential.
This assembly is specifically designed for field deployable applications. Particularly, it can broadcast the communication for film crews to connect HDTV camera equipments with central broadcasting trucks about events like music concerts and sporting events.
          SDI 150M 100M Hdmi Active Optical Cable With Reel Drum 0
Norminal Impedance(Ω) 75±3
Norminal Velocity of Propagation(%) 85
Normial Capacitance(pF/m) 50
Sparker Test(VAC) 4000
SRL(dB) 20
Attenuation [@68°F(20℃)] Frequency(MHZ) Maximum(dB/100ft) Maximum(dB/100m)
5 0.86 2.82
55 2.05 6.73
187 3.60 11.81
300 4.45 14.60
450 5.40 17.72
600 6.20 20.34
750 6.98 22.87
865 7.52 24.67
1000 8.13 26.64
1200 8.97 29.40
1450 9.89 32.41
1800 11.81 38.72
3000 14.30 46.90

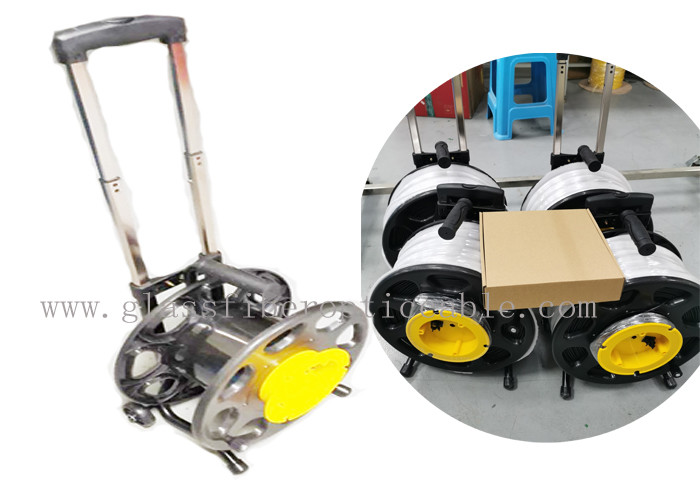

Retractable cable reel, handle cable wire :


I. Cable reel: Portable optical cable disk (also called handle wire spool, handle wire winch, mini portable cable laying ), which is mainly used in the television relay car, wound fiber, signal line, power cable and other cables; Wheel plate light and durable; Surface spray treatment, easy to use.


II. System construction


The product mainly consists of winding wheel, wire frame, winding handle, handle, and bearing seat.


III. Functional characteristics


1. Manual recharging line: the function of winding and winding by clockwise or counterclockwise winding handle.


2. The rotating shaft is equipped with bearing sleeve, which can easily be used to realize the collection line of the handle.


3. Easy to move: with handle, easy to move.


4. It is equipped with a preferable handle, and the handle strength is durable.


5. Equipped with brake device, the brake can be jammed at any time.


6. Both side with bearing support line, which can be used for long term and never deformation.


7. Main technical indicators


This deployable assembly includes a marcaddy drum, breakout modules with ruggedised tails at each end, choice of connectors, tactical cable and a high durability protective conduit IP rated pulling sock.

Extension Cord Reel (also known as mobile cable reel) is mainly used for winding optical fiber, signal cable, power cable and other cables. The spool is made of steel pipe, imported engineering plastics are used as the wheel, light and durable; rods and wheels. Surface spray treatment. Beautiful and atmospheric.


Manual retractable wire: Rotate the winding handle clockwise or counterclockwise to complete the task of receiving and releasing the wire.


The Application of  Cable Reel
we can supply several deployable fiber cable reels, which can be used in the following situations - field
communication and CATV, quick deployment, quick distributing and retrieving of military field
communication system, cable deployment of radar, aviation and naval vessel, complicated circumstances
of oil field, mining and harbors, TV re-broadcasting and communication, emergency repairing and
supporting LAN cabling.


SDI 150M 100M Hdmi Active Optical Cable With Reel Drum 1

SDI 150M 100M Hdmi Active Optical Cable With Reel Drum 2
