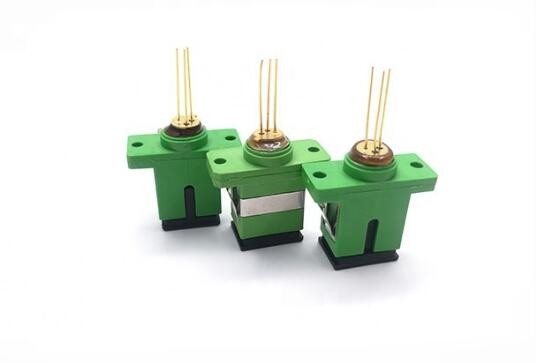

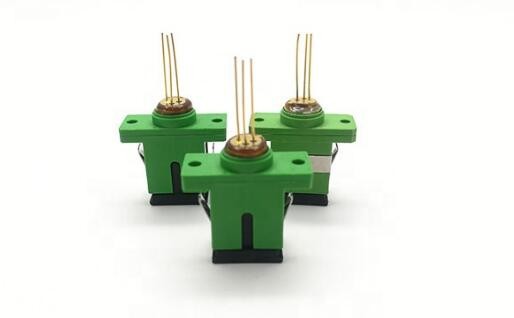

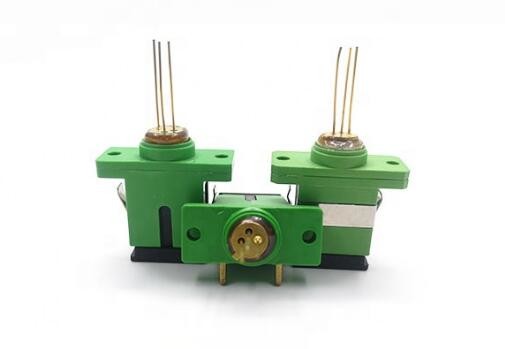

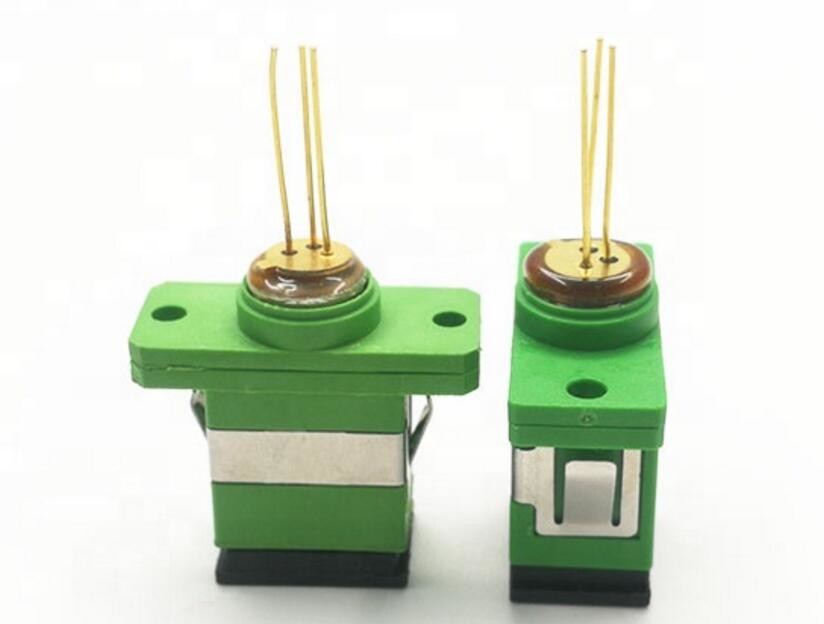

Fiber Laser PIN Diode With Receptacle FTTH Receiver​
1 set
Fiber Laser PIN Diode With Receptacle FTTH Receiver​
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Certification: ISO9001;2015
Model Number: FTTH receiver
High Light:

FTTH Fiber Laser PIN Diode


30V Fiber Laser PIN Diode


SM 9/125 Fiber PIN Diode

Payment & Shipping Terms
Packaging Details: ESD box
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500pcs Per Week
Type: FTTH Receiver
High Responsivity: ≥0.85A/W 1310nm ≥o.90nm 1550nm
Forward Current: 30V
Laser Type: Fiber Laser
Payment: TT/PayPal
Max. Reverse Voltage: 15(PD)
Length Options: 0.1~1m Option
Fiber: SM 9/125
Power: 2mw
Package: ESD Box
Product Description

   PIN diode with Receptacle FTTH receiver​  FTTH receiver​ & PIN diode with receptacle


1. Features:


High Responsivity: ≥0.85A/W 1310nm ≥o.90nm 1550nm

2GHz Frequency Response

Low Dark Current ,Low Return Loss

High Sensitivity

Coaxial Package ,Laser welding

Quick Pulse Response

High Reliability and Long Operation Life


2.Applications :


Analog Optical Receiver

Test Equipments

FTTH Network

CATV Forward/Return Path

EDFA Monitors

Optical transmission system


3.Absolute Maximum Ratings Tc=25°C:


Parameter Symbol Ratings Unit
Saturation power Ps 10.0 mW
Forward current If 10.0 mA
Reverser voltage Vr 30 V
Operating temperature Top -40~+85 °C
Storage temperature Tstg -40~+125 °C


4.Optical and Electrical Characteristics Tc=25°C:


Parameter Symbol Min. Type Max. Unit Test condition
Operating Wavelength λ 1100 1310 1650 nm
Responsibility R 0.85 0.9   A/W Vr=5V,λ=1310nm
0.9 0.95   A/W Vr=5V,λ=1550nm
Dark Current Id   0.5 1.0 nA Vr=5V
Capacitance C   0.3 1.0 pF Vr=5V
Rise time/Fall time Tr/Tf     0.3 ns Vr=5V,10~90%
Bandwidth Bw 2.5     GHz Vr=5V


5.PD Pin assignment :

                                                                             Fiber Laser PIN Diode With Receptacle FTTH Receiver​ 0



                                                                                                                                                                                                                                                                                                                                   Fiber Laser PIN Diode With Receptacle FTTH Receiver​ 1
