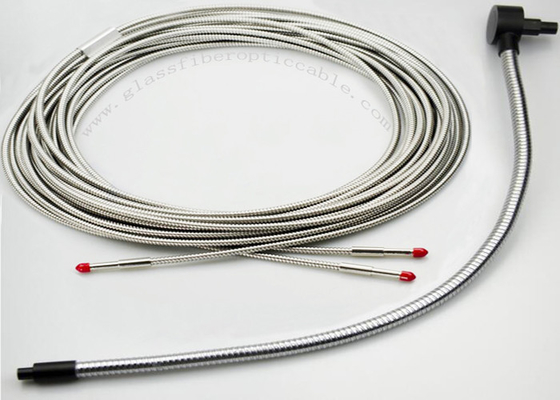

Glass Fiber Bundle medical Endoscope surgical light guide bundle CCD auxiliary lighting Fiber Bundle
This Hicorpwell glass optical fiber is used for auxiliary illumination such as microscope and CCD,
and has the characteristics of uniform light emission and no shadow in 360 degrees.
The size and length of the inner hole can be customized according to requirements.
Mainly used in auxiliary lighting such as microscope, CCD, machine vision, etc.
It is characterized by uniform light emission and 360-degree shadow-free lighting.
1,Good fatigue resistance
2,Special specifications of optical fiber can be customized
3,Diversified choices of connectors and special customization
4,Good flexibility, large spot diameter
1,CCD auxiliary lighting
2,Illumination of medical endoscope
3,Industrial endoscope lighting
4,High temperature flame detection equipment
| Parameter | |||||||
| Diameter (mm) | 1 | 2 | 3 | 6 | 10 | 10 | 10 |
| Cable Dimension(mm) | 6 | 6 | 6 | 10 | 30 | 40 | 80 |
| Core Material | Glass Fiber | ||||||
| Cladding Material | Glass Fiber | ||||||
| Single Diameter (um) | 15-55 | ||||||
| NA | 0.56±0.02,0.6±0.02,0.64±0.02,0.83±0.02 | ||||||
| Divergence Angle | 70°,75°,80°,120° | ||||||
| Working Band(nm) | 380-1300nm | ||||||
| General working temperature (℃) | -40℃~+200 | ||||||
| Working temperature of special glue (℃) | -40℃~+500 | ||||||
Notes:
All bundles and assemblies are custom designed to meet your specifications.
All standard connectors (SMA 905, SMA 906, ST, FC) are available—or custom ferrules,
machined in-house to your specifications. Refer to individual fiber data sheets for more information
and to determine the best fiber for your application. NA is measured at the 95% intensity angle.
